8.6.52 Differential sensor (4.3.27)
Differential sensor
Description

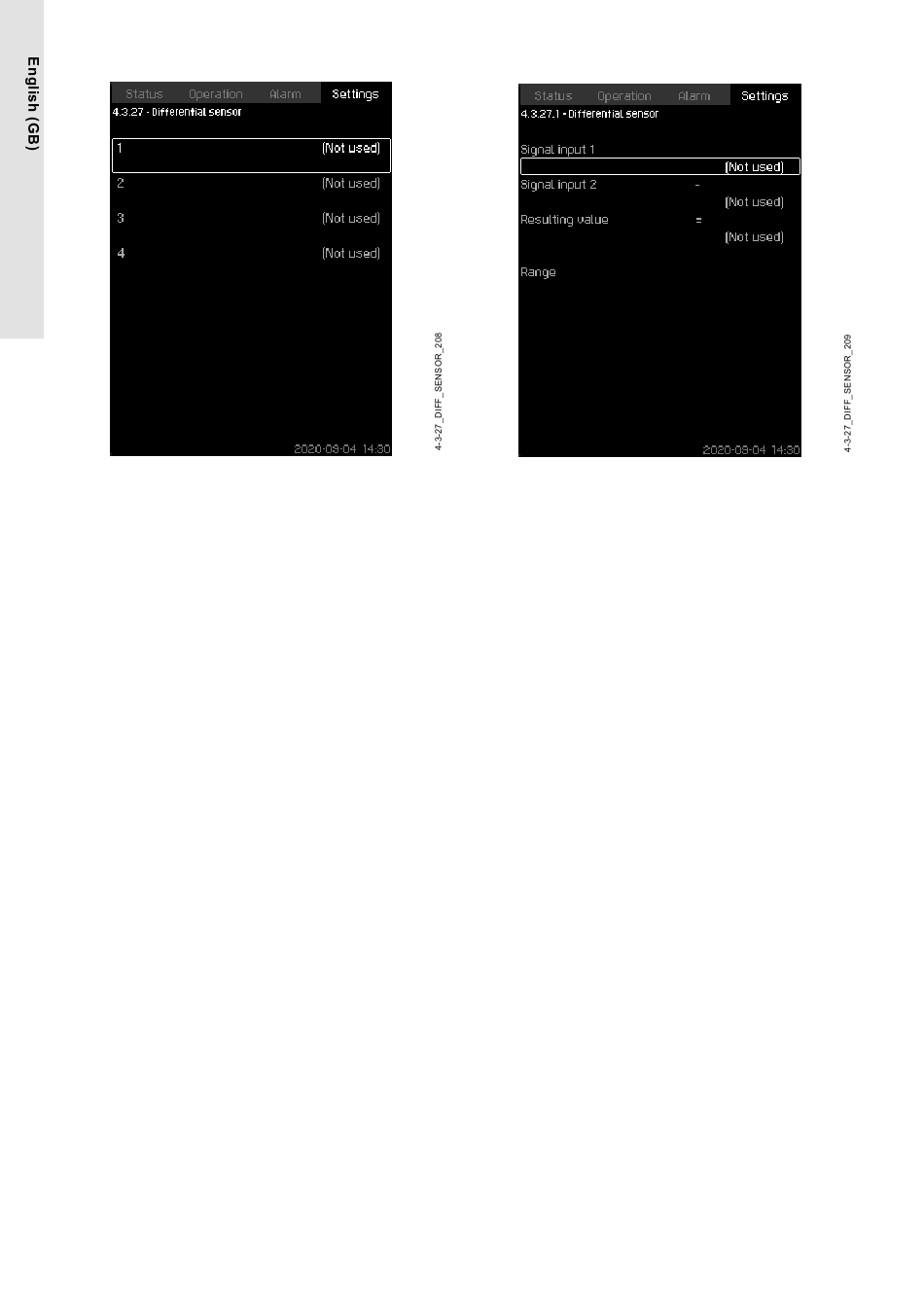

Up to four differential sensors can be configured for input and
output values.
Example
Differential sensor 2
Differential sensor 3.
Setting via the operating panel
• Settings > Secondary functions > Differential sensor.
62
8.6.53 Differential sensor (4.3.27.1-4)
Differential sensor 1-4
Description
Customising the differential sensors.
Setting range
• Signal input 1: select value for the minuend part of the
differential sensor.
• Signal input 2: select value for the subtrahend part of the
differential sensor.
• Resulting value: select value for the resulting differential
sensor.
• Range: set the range for the resulting differential sensor.
Setting via the operating panel
• Settings > Secondary functions > Differential sensor >
Differential sensor 1-4.
1. Select signal input 1 value.
2. Select signal input 2 value.
3. Select Resulting value.
4. Set differential sensor range.
