8.6.50 Multisensor settings (4.3.25.1)
Multisensor settings
Description
Each Multisensor needs to be defined in order for the function to
work correctly.
Setting range
• Name
• Sensor limits
• Sensor priority (1-6, High = 1)
• Filter factor [second] (time period where the remote sensor
feedback signal is averaged over.)
• Sensor source
Local = AI
Bus = BUS communication
Setting via the control panel

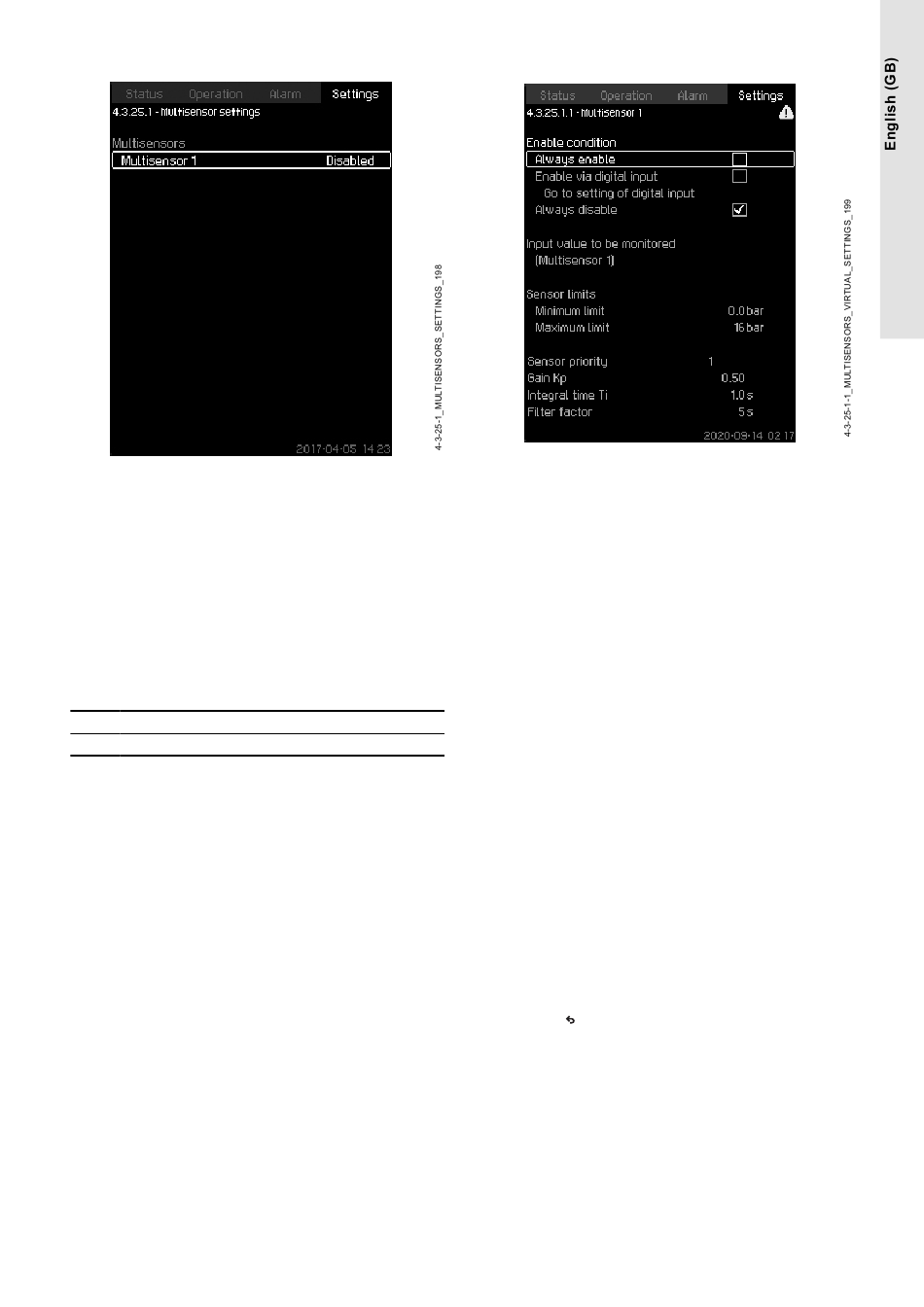

• Settings > Secondary functions > Multisensor settings >
Multisensor settings.
8.6.51 Multisensor 1-6 (4.3.25.1.1)
Multisensor 1-6
Description
Each Multisensor needs to be defined in order for the function to
work correctly.
Setting range
• On-Off.
Always disable: the supervision parameter is disabled.
Always enable: the supervision parameter is enabled.
Enable via digital input: set the digital input to enable the
supervision parameter.
• Input value to be monitored: select the input value to be
monitored.
• Maximum limit for the selected input value.
• Maximum limit for the selected input value (is not shown in
Energy saving mode).
• Gain Kp: - 30 to 30. Note that for inverse control, Kp must be
set to a negative value.
• Integral time Ti: 0.0 to 3600 seconds.
• Sensor priority (1-6, High = 1).
• Filter time [seconds] (time period where the remote sensor
feedback signal is averaged over.)
Setting via the operating panel
• Settings > Secondary functions > Multisensor settings >
Multisensor1-6.
1. Set On-Off.
• Always disable
• Always enable
• Enable via digital input
- Go to settings of digital input, set the digital input.
- Press × 1.
