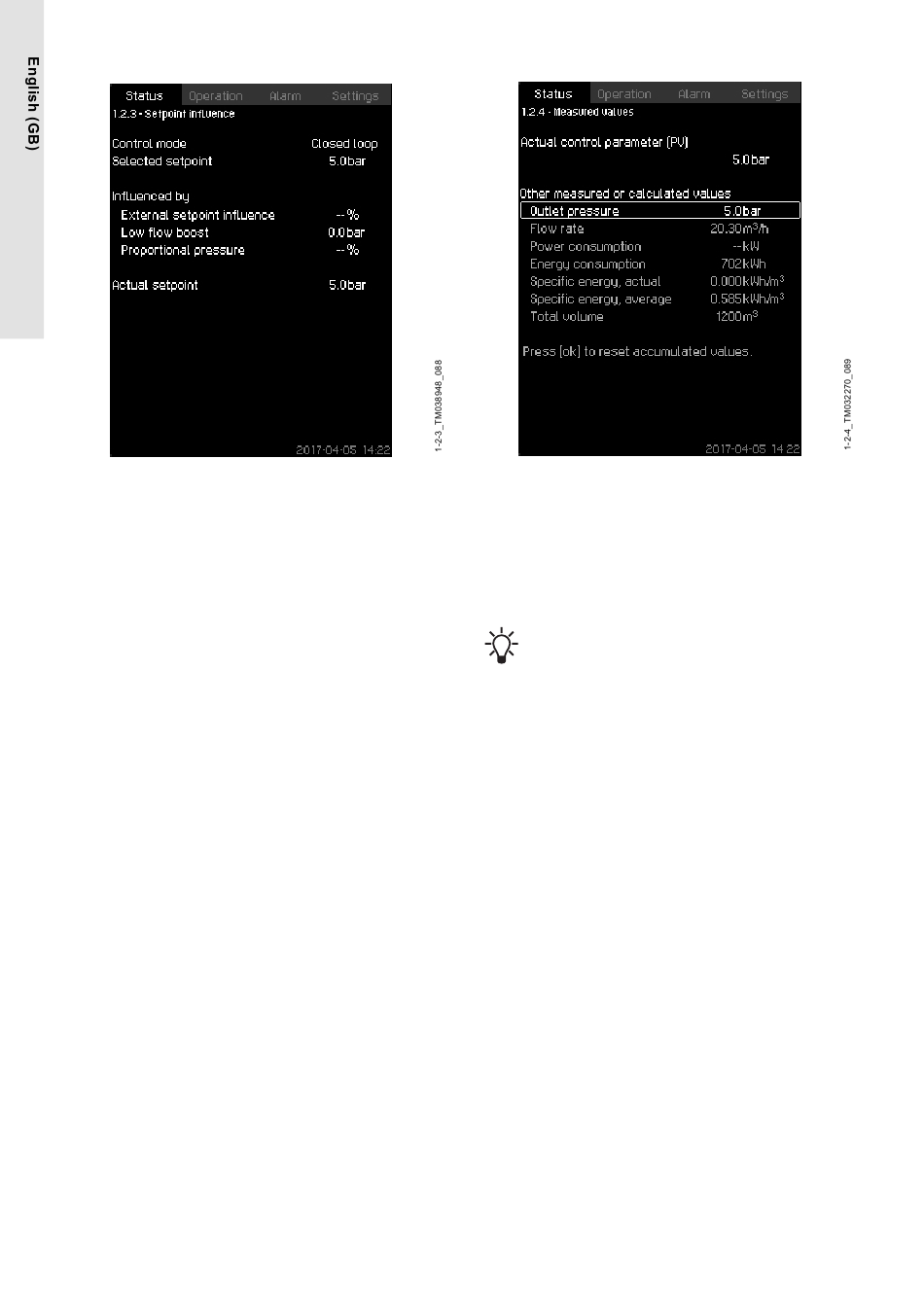

8.3.5 Setpoint influence (1.2.3)
Setpoint influence
Description
Actual setpoint (SP) = selected setpoint × influence (1) × influence
(2) × etc.
The display shows the parameters influencing the selected setpoint
and the percentage or value of influence.
You can set some of the possible parameters in the display
External setpoint influence (4.1.3). The parameter Low flow
boost is set as a start/stop band as a percentage of the setpoint
set in the display Stop function (4.3.1). The parameter is set as a
percentage in the display Proportional pressure (4.1.7).
Finally, the resulting actual setpoint (SP) is shown.
Related information
8.6.5 External setpoint influence (4.1.3)
8.6.10 Proportional pressure (4.1.7)
8.6.24 Stop function (4.3.1)
20
8.3.6 Measured values (1.2.4)
Measured values
Description
The display gives a general status of all measured and calculated
parameters. In MPC-E systems with a flowmeter, the specific
energy is shown as an average value and actual value (mean
value over the last minute). The average value is based on the
accumulated flow shown as total volume. The total volume and
specific energy average can be reset in this display.
The lines Power consumption and Energy
consumption are only shown in MPC-E systems.
