4.1.3

Address and baud rate switch

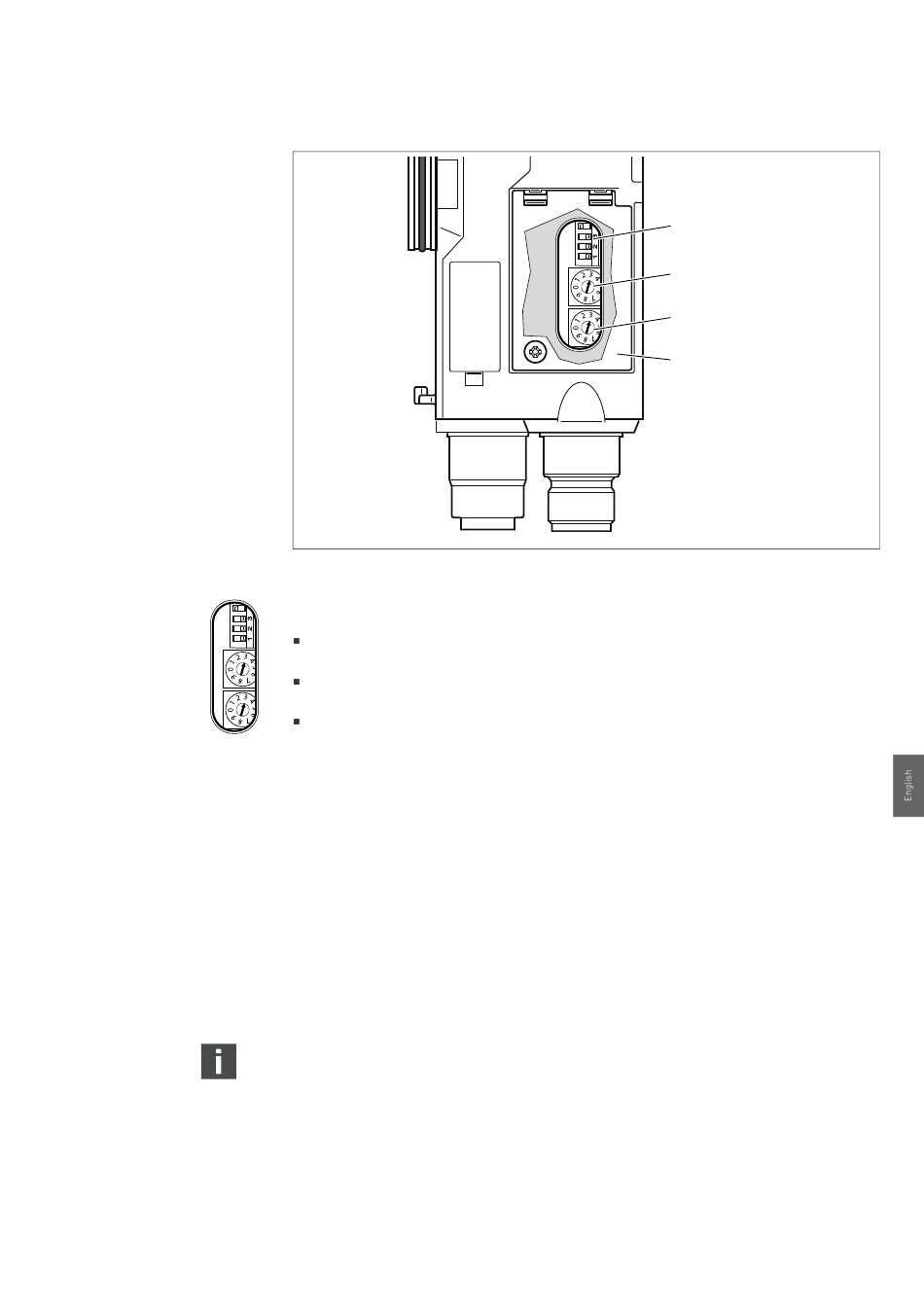

Fig. 2: Location of address switches S2 and S3 and the baud rate switch S1
The DIP switch S1 for the baud rate and the two rotary switches S2 and S3 for the station address
of the valve system in CANopen are located underneath the window (3).
S1
Switch S1: On the DIP switch S1, the baud rate is set on the first three switches. The fourth
switch is not assigned.
S2
Switch S2: The tens digit of the address is set on switch S2. Switch S2 is labeled using the
S3 decimal system from 0 to 9.
Switch S3: The units digit of the address is set on switch S3. Switch S3 is labeled using the
decimal system from 0 to 9.
4.1.4

Addressing

A comprehensive description of addressing can be found in section 9 "Presettings on the Bus
Coupler" on page 99.
4.1.5

Baud rate

The baud rate is set to 1 MBit/s by default. Section 9.4 "Changing the baud rate" on page 101
contains a description of how you can change the baud rate.
4.2

Valve driver

The valve drivers are described in section 12.2 "Valve zone" on page 107.
S1
S1
S2
S2
S3
S3
