112 AVENTICS | Bus Coupler AES/Valve Driver AV, CANopen | R412018137–BAL–001–AE
Conversion of the Valve System
12.2.7

Bridge cards

43
28
AES-
D-BC-
CAN
UA P
29

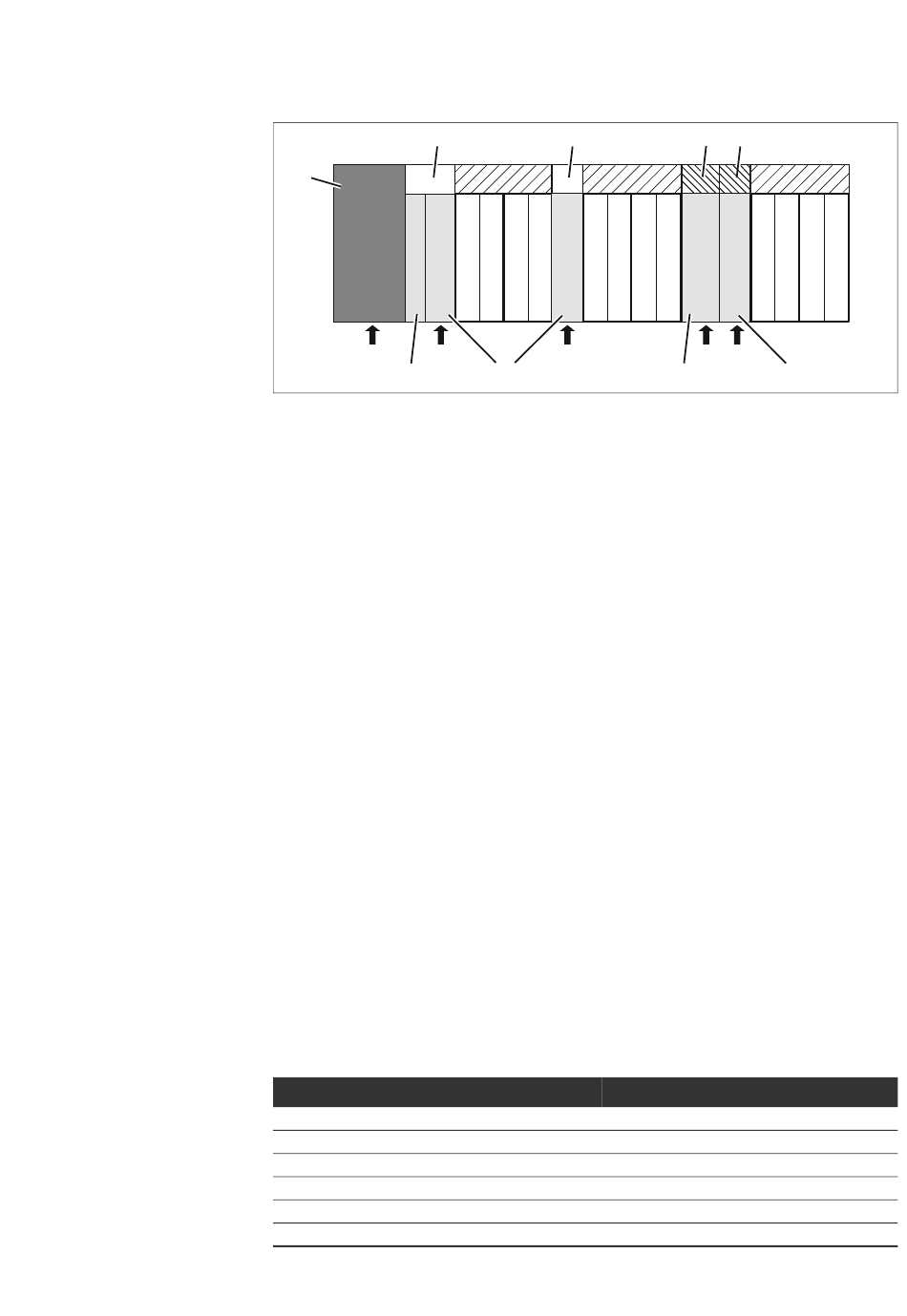

Fig. 15: Bridge cards and UA-OFF monitoring board
28 Bus coupler
29 Transition plate
30 Pneumatic supply plate
35 Electrical supply plate
Bridge cards have the sole function of bridging the pressure supply areas. They are therefore not
taken into account during PLC configuration.
Bridge cards are available in long and short versions:
The long bridge card is always located directly on the bus coupler. It bridges the transition plate and
the first pneumatic supply plate.
The short bridge card is used to bridge additional pneumatic supply plates.
12.2.8

UA-OFF monitoring board

The UA-OFF monitoring board is an alternative to the short bridge card in the pneumatic supply plate
(see Fig. 15 on page 112).
The electrical UA-OFF monitoring board monitors the actuator voltage UA for status UA < UA-OFF.
All voltages are directly passed through. The UA-OFF monitoring board must therefore always be
installed after an electrical supply plate to be monitored.
In contrast to the bridge card, the UA-OFF monitoring board has to be taken into account when
configuring the control.
12.2.9

Possible combinations of base plates and cards

Valve driver boards, 4x, are always combined with two 2x base plates. Table 20 shows the possible
combinations of base plates, pneumatic supply plates, electrical supply plates, and transition plates
with various valve driver boards, bridge cards, and supply boards.
Table 20: Possible combinations of plates and cards
Base plate
Base plate, 2x
Base plate, 3x
Two base plates, 2x
Pneumatic supply plate
Transition plate and pneumatic supply plate
Electrical supply plate
1)
Two base plates are linked with a valve driver board.
44
P
30
38 Electrical supply board
43 Long bridge card
44 Short bridge card
45 UA-OFF monitoring board
Circuit boards
Valve driver board, 2x
Valve driver board, 3x
Valve driver board, 4x
Short bridge card or UA-OFF monitoring board
Long bridge card
Supply board
38 45
UA P
35 30
1)
