A
B
AVENTICS | PROFIBUS DP | R499050016–BDL–001–AE
7

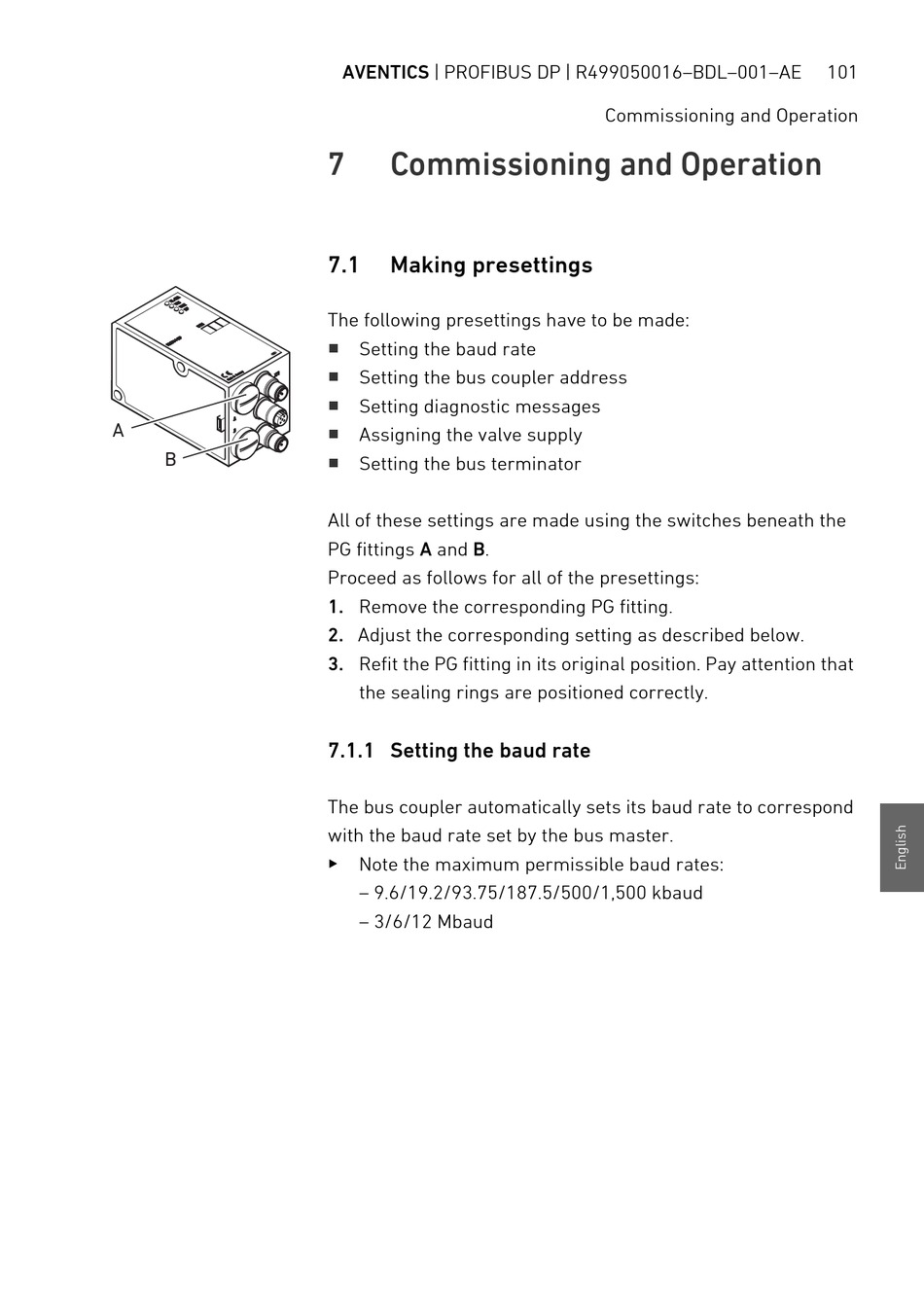

Commissioning and Operation

7.1

Making presettings

The following presettings have to be made:
W

Setting the baud rate

W
Setting the bus coupler address
W
Setting diagnostic messages
W
Assigning the valve supply
W
Setting the bus terminator
All of these settings are made using the switches beneath the
PG fittings A and B.
Proceed as follows for all of the presettings:
1. Remove the corresponding PG fitting.
2. Adjust the corresponding setting as described below.
3. Refit the PG fitting in its original position. Pay attention that
the sealing rings are positioned correctly.
7.1.1 Setting the baud rate
The bus coupler automatically sets its baud rate to correspond
with the baud rate set by the bus master.
O
Note the maximum permissible baud rates:
– 9.6/19.2/93.75/187.5/500/1,500 kbaud
– 3/6/12 Mbaud
Commissioning and Operation
101
