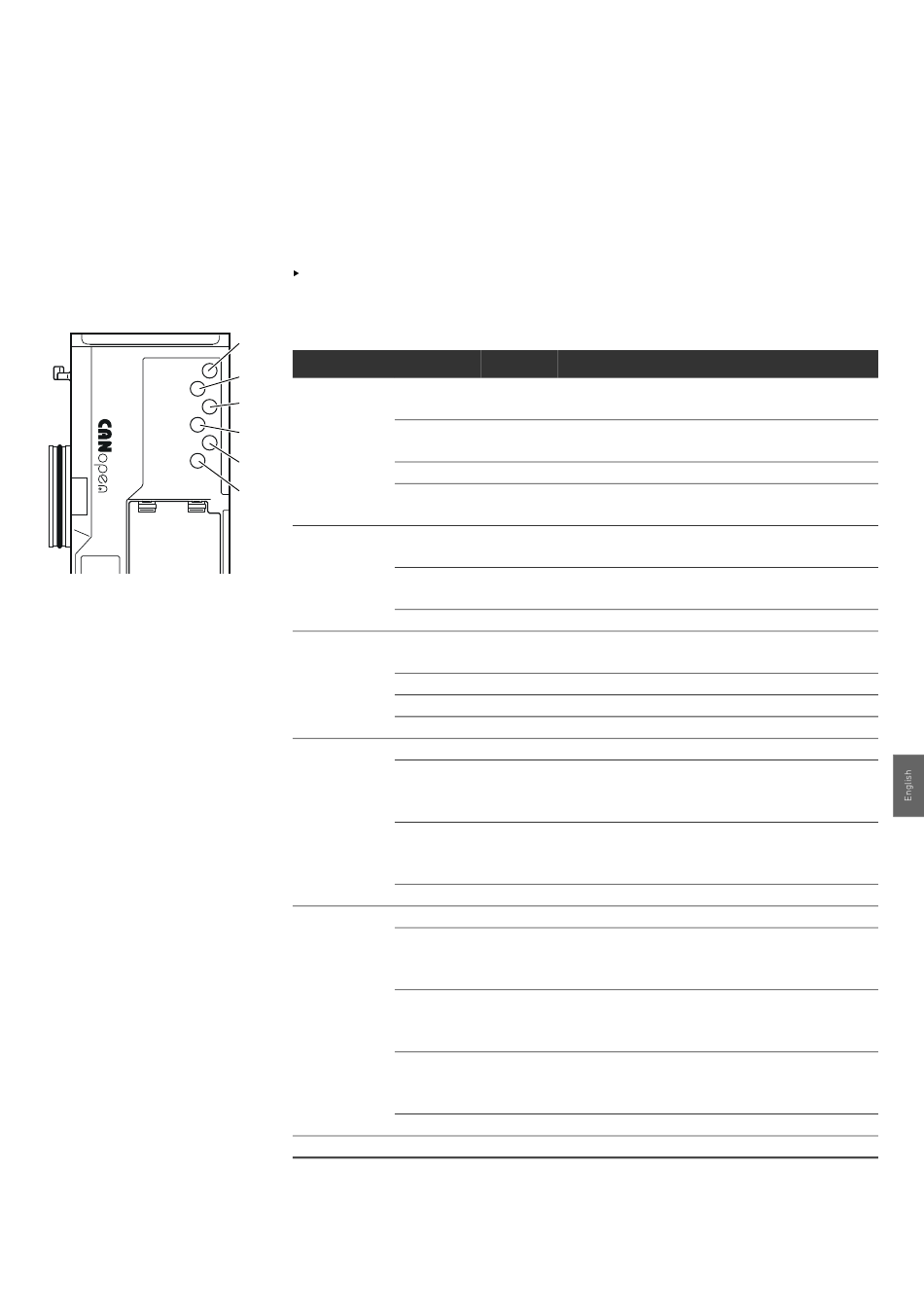

Reading the diagnostic display
on the bus coupler
14
UL
15
UA
16
IO/DIAG
RUN
17
ERROR
18
19
AVENTICS | Bus Coupler AES/Valve Driver AV, CANopen | R412018137–BAL–001–AE

11 LED Diagnosis on the Bus Coupler

The bus coupler monitors the power supplies for the electronic components and actuator control.
If they exceed or fall below a set threshold, an error signal will be generated and reported
to the controller. In addition, the status is displayed by the diagnostic LEDs.
The LEDs on the top of the bus coupler report the messages listed in Table 18.
Before commissioning and during operation, regularly check the bus coupler functions
by reading the LEDs.
Table 18: Meaning of the diagnostic LEDs
Designation Color
UL (14) Green
Red
Red
Green/red
UA (15) Green
Red
Red
IO/DIAG (16) Green
Green
Red
Red
RUN (17) Green
Green
Green
Green
ERROR (18) Red
Red
Red
Red
Red
None (19) –
State Meaning
Illuminated The electronics supply voltage is greater than the lower
tolerance limit (18 V DC).
Flashes The electronics supply voltage is less than the lower
tolerance limit (18 V DC) and greater than 10 V DC.
Illuminated The electronics supply voltage is less than 10 V DC.
Off The electronics supply voltage is significantly less than
10 V DC (limit not defined).
Illuminated Actuator voltage exceeds the lower tolerance limit
(21.6 V DC).
Flashes The actuator voltage is less than the lower tolerance limit
(21.6 V DC) and greater than UA-OFF.
Illuminated The actuator voltage is less than UA-OFF.
Illuminated The configuration is OK and the backplane is working
perfectly.
Flashes CANopen address was set incorrectly (address = 0).
Illuminated Diagnostic message from module present
Flashes Error in configuration or the function of the backplane
Illuminated Operation display, module is in the OPERATIONAL state.
Flashes Module is in the PRE-OPERATIONAL state
slowly (SLAVE is waiting for the NMT-START telegram from
(2.5 Hz) the CAN master.)
Flashes Module is in the "STOPPED" state
(once each
time)
Off Module is in the INITIALIZING state.
Illuminated Module is in the BUS OFF state (not active in CANopen bus).
Flashes Module is in the ERROR PASSIVE state (at least one error
(once each counter has reached or exceeded the maximum value)
time)
Flashes Module is in the ERROR CONTROL EVENT state;
(twice each a heartbeat/monitoring error has occurred
time) Prerequisite: object 1006 is supported
Flashes (99 Module is in the SYNC ERROR state.
flashes each The SYNC object was not transmitted within the configured
time) time.
Off No bus error detected
– not assigned
