37. Complete Installing the battery (page 24).
38. Press the main power button (AD) (Figure 19), on the patient left side of the trolley assembly, to turn power on to the
product.
N N o o t t e e
• If you wired P P o o w w e e r r - - L L O O A A D D into a circuit with a switch, make sure that the switch is turned on.
• When you press the main power button, a green battery power LED (AE) also turns on to indicate that the P P o o w w e e r r - -
L L O O A A D D system is on. If the trolley battery is low, a flashing amber error LED (AF) may also appear.
• The P P o o w w e e r r - - L L O O A A D D battery is not charging if the trolley head end LED indicators flash amber when the product is in
the transport position.
39. Raise the lifting arms and manually push the trolley into the head end of the vehicle patient compartment to charge the
battery.
N N o o t t e e - - The battery power LED (AE) flashes green while charging.
40. Affix the operation labels to the door or wall where it is visible to P P o o w w e e r r - - L L O O A A D D operators ( Loading and unloading with
powered operations (page 34) and Loading and unloading with manual operations (page 35)).
N N o o t t e e - - Affix the label to a smooth surface or the supplied sheet metal plate (6390-001-467) that you can screw or rivet
into the vehicle.
41. Complete the Installation checklist (page 25).
6390-809-005 Rev AA.0

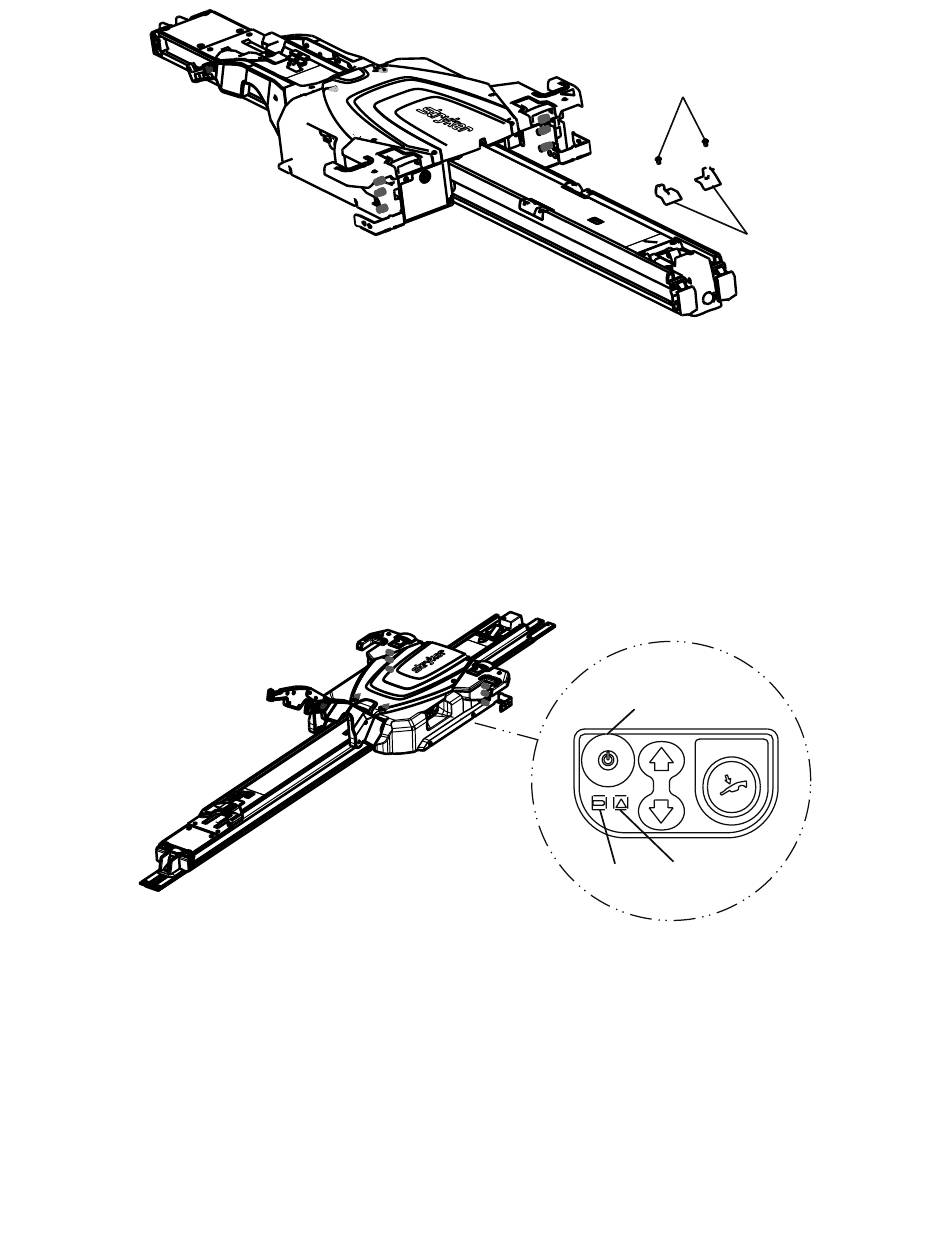

F F i i g g u u r r e e 1 1 8 8 – – A A t t t t a a c c h h h h e e a a d d e e n n d d t t r r i i m m
F F i i g g u u r r e e 1 1 9 9 – – P P o o w w e e r r - - L L O O A A D D c c o o n n t t r r o o l l p p a a n n e e l l
A B
A
C
A
D
A
F
A
E
23
EN
