18. Installer 1 (foot end) lifts the transfer assembly and slides the transfer lock triggers (L) (Figure 12) toward the foot end of
the transfer to release the transfer locks. Installer 2 (head end) slides and centers the open end of the transfer assembly
over the rollers in the anchor assembly.
• When you install the transfer assembly, slowly slide the transfer assembly. Do not break the cot inductive charge
housing (K) (Figure 10).
• Keep the transfer lock triggers pulled toward the foot end until the transfer is seated on the anchor (Figure 12).
• You may notice slight resistance when you roll over the second set of rollers; push past the resistance to the position
shown in Figure 12.
19. Position the anchor inductive primary cover (639001010101) over the opening so the U-hook faces the foot end of the
anchor (Figure 11).
N N o o t t e e - - Do not let the connectors (installed on step 16) push against the anchor inductive primary cover.
20. Using a flat blade screwdriver, press the U-hook into the anchor until you hear it click into place (Figure 11).
21. Using a 5/32'' hex wrench, install the supplied socket head cap screw (0004-658-000) (O) to secure the supplied trolley
magnet activator (6390-001-106) (P) (Figure 12).
22. Using a T25 Torx driver, install four supplied button head cap screws (0004-665-000) (M) to attach the supplied foot end
transfer wear pad (6390-001-225) (N) to the transfer assembly (Figure 12).
23. Slide the transfer lock triggers (closest to the foot end) (L) (Figure 12) toward the foot end of the transfer assembly to
unlock.
6390-809-005 Rev AA.0

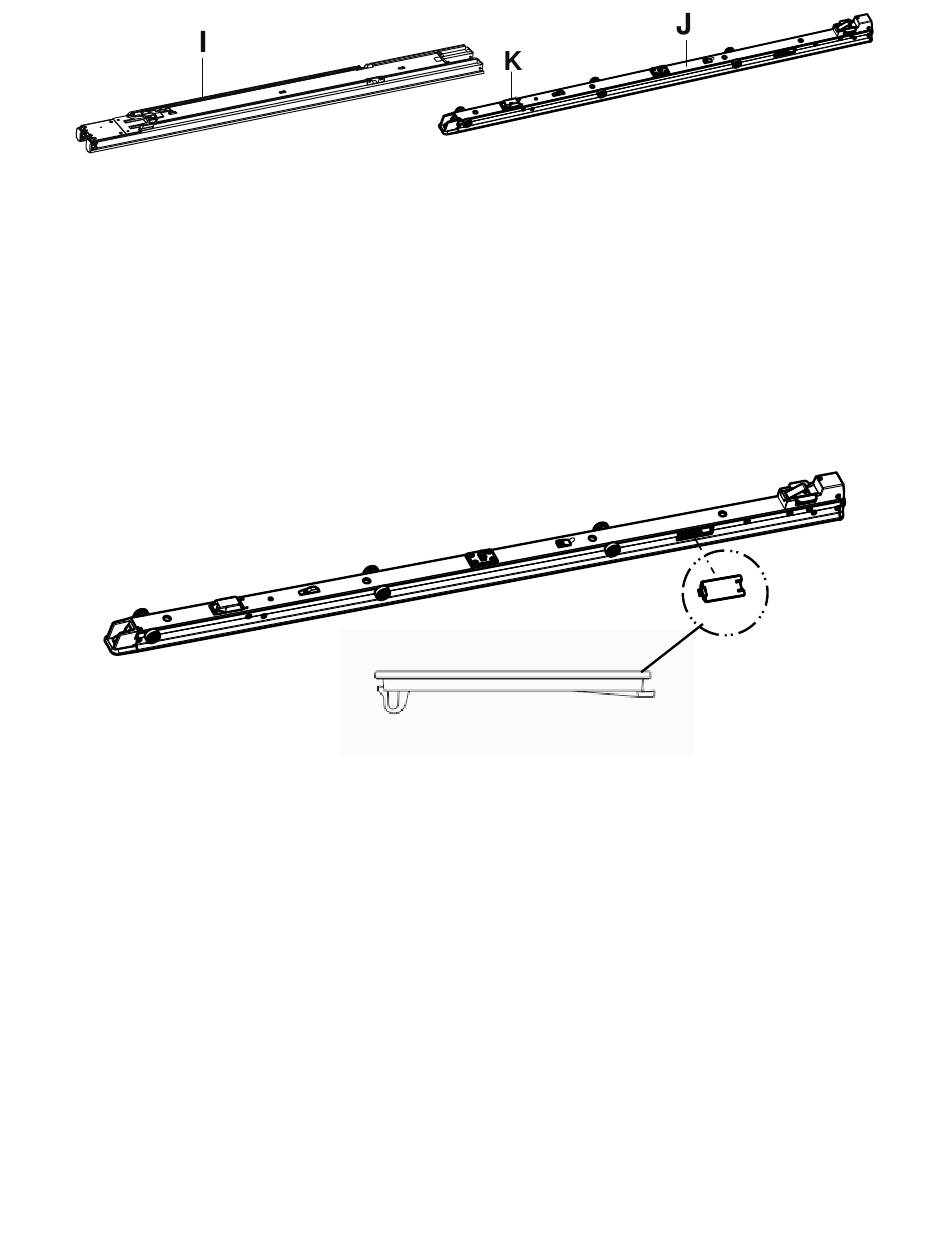

F F i i g g u u r r e e 1 1 0 0 – – I I n n s s t t a a l l l l t t r r a a n n s s f f e e r r a a s s s s e e m m b b l l y y
F F i i g g u u r r e e 1 1 1 1 – – A A n n c c h h o o r r i i n n d d u u c c t t i i v v e e p p r r i i m m a a r r y y c c o o v v e e r r
19 EN
