F F i i g g u u r r e e 1 1 2 2 – – A A t t t t a a c c h h t t h h e e f f o o o o t t e e n n d d t t r r a a n n s s f f e e r r w w e e a a r r p p a a d d

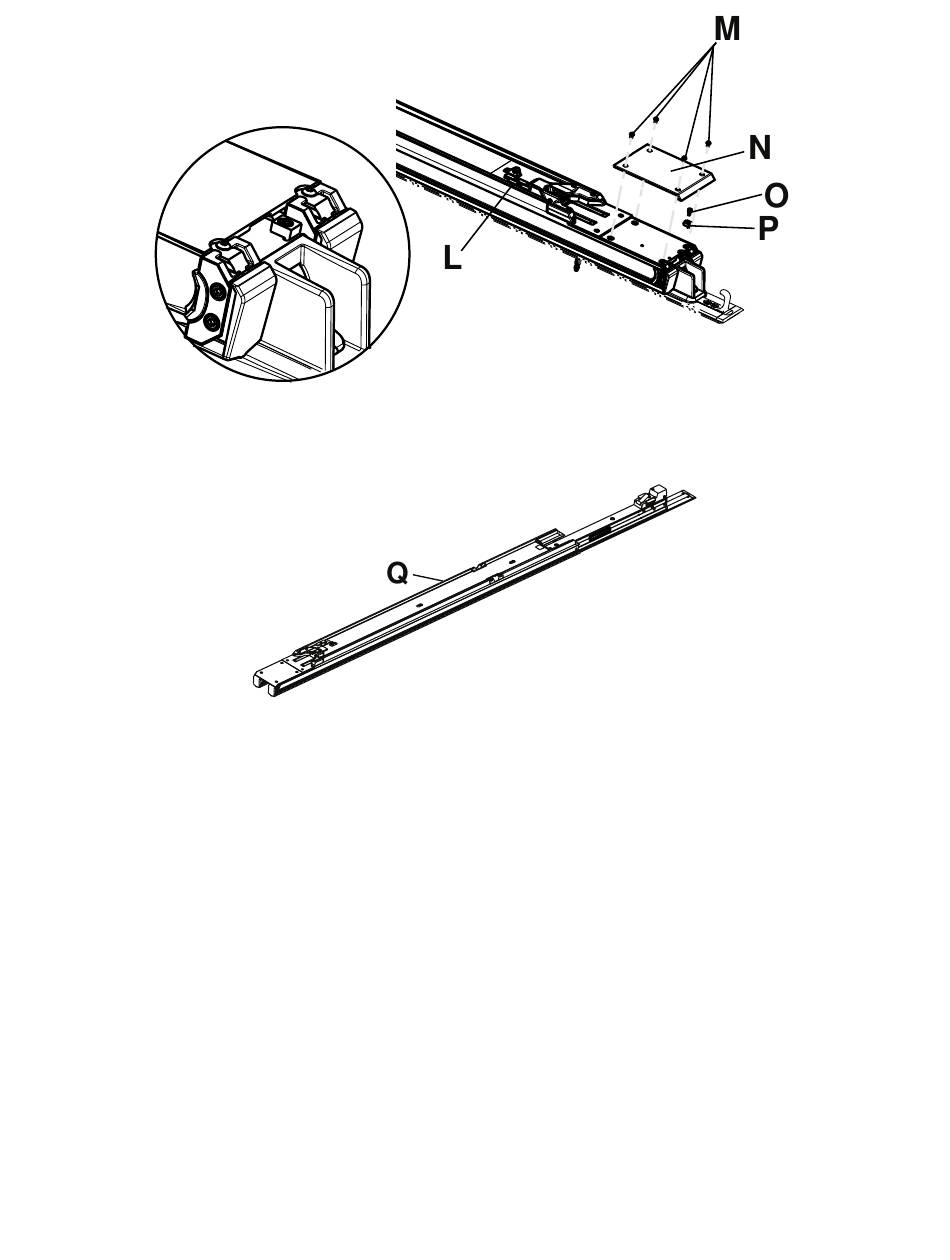

24. Move the transfer assembly into its mid position (Q) (Figure 13).
F F i i g g u u r r e e 1 1 3 3 – – P P o o s s i i t t i i o o n n t t h h e e t t r r a a n n s s f f e e r r a a s s s s e e m m b b l l y y
25. Carefully lift the trolley assembly by its arm and wing. Do not lift the trolley by the manual cot release handles. Lift only
where indicated. Installer 1, position hands at R1 and R2. Installer 2, position hands at S1 and S2 (Figure 14).
EN
20
6390-809-005 Rev AA.0
