9. Using a measuring tape, measure the exposed pocket at the head end and the foot end of the floor plate to customize
the floor plate covers.
10. Using a saw, cut the two floor plate covers (6390-001-166) (E) to fit the measured length on both ends (Figure 7). The
floor plate cover does not fit over the floor plate attachment bracket.
N N o o t t e e - - If you assemble the anchor over the foot end or head end of the floor plate, then no floor plate cover is needed on
that end.
11. Using a rubber hammer, snap each floor plate cover into the floor plate (hook side (F) first).
N N o o t t e e - - To unsnap the floor plate cover, use a flat blade screwdriver on the side of the cover with a raised edge.
12. Make sure that the anchor seals (G) are installed into the grooves of the anchor assembly (Figure 8). If the anchor seals
are not installed, push them back into the grooves of the anchor assembly.
6390-809-005 Rev AA.0

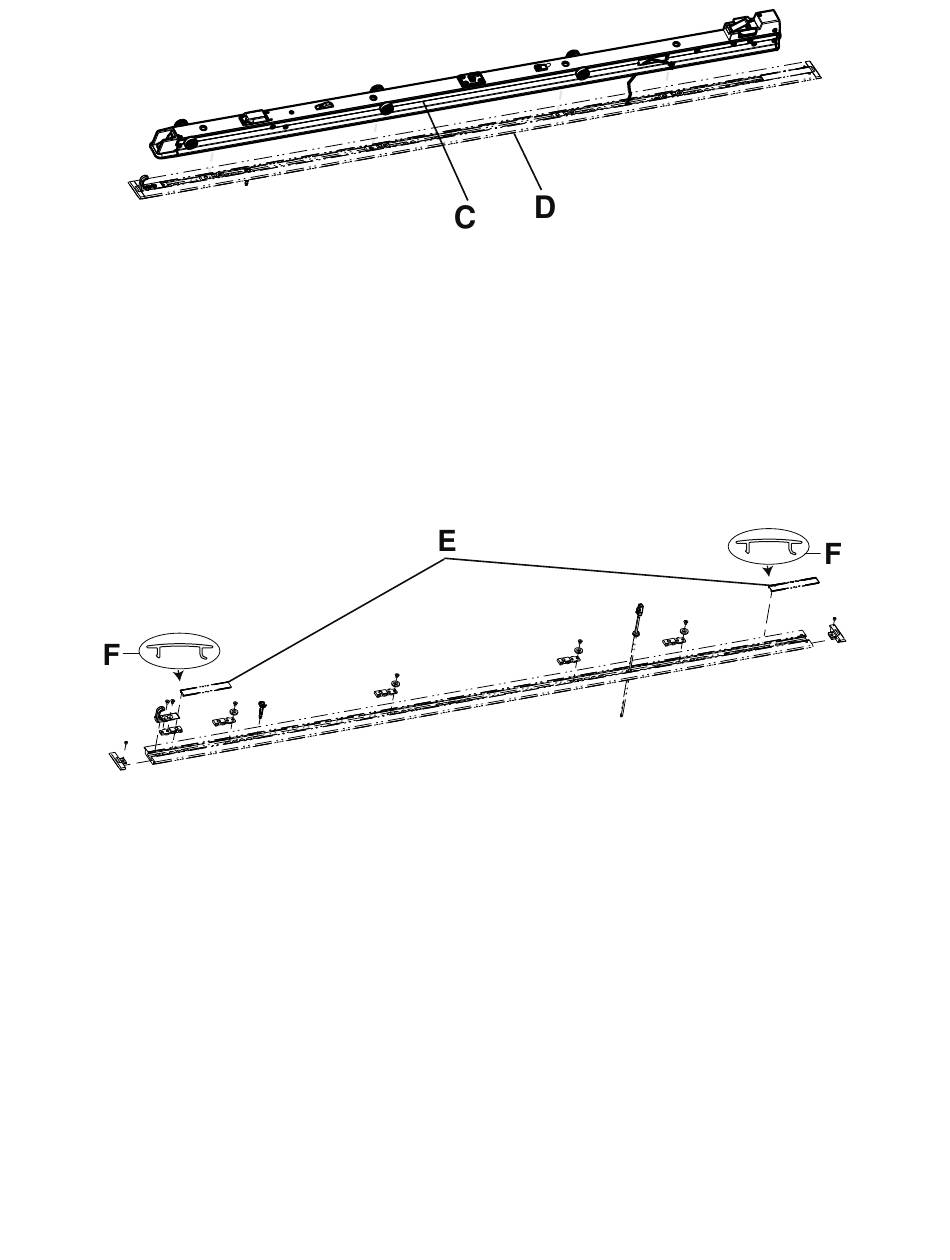

F F i i g g u u r r e e 6 6 – – A A n n c c h h o o r r a a s s s s e e m m b b l l y y a a n n d d f f l l o o o o r r p p l l a a t t e e a a s s s s e e m m b b l l y y
F F i i g g u u r r e e 7 7 – – C C u u t t f f l l o o o o r r p p l l a a t t e e c c o o v v e e r r s s
