13. Using a 3/8'' hex wrench, install the four supplied anchor mounting posts (6390-001-150) (H) into the four holes in the
anchor assembly (Figure 9).
N N o o t t e e
• Do not fully tighten the posts until all four posts are aligned and started.
• Do not pinch any wires when you install the post closest to the head end of the anchor.
14. Using a 1/2" drive torque wrench, tighten each post (H) to 60±10 ft-lb (Figure 9).
15. On the side of the anchor, connect the anchor‐to‐vehicle cable to the connector on the anchor assembly.
16. Push the connectors back into the anchor assembly.
17. Position the transfer assembly (I), so the open end faces the anchor assembly (J) (Figure 10).
EN 18

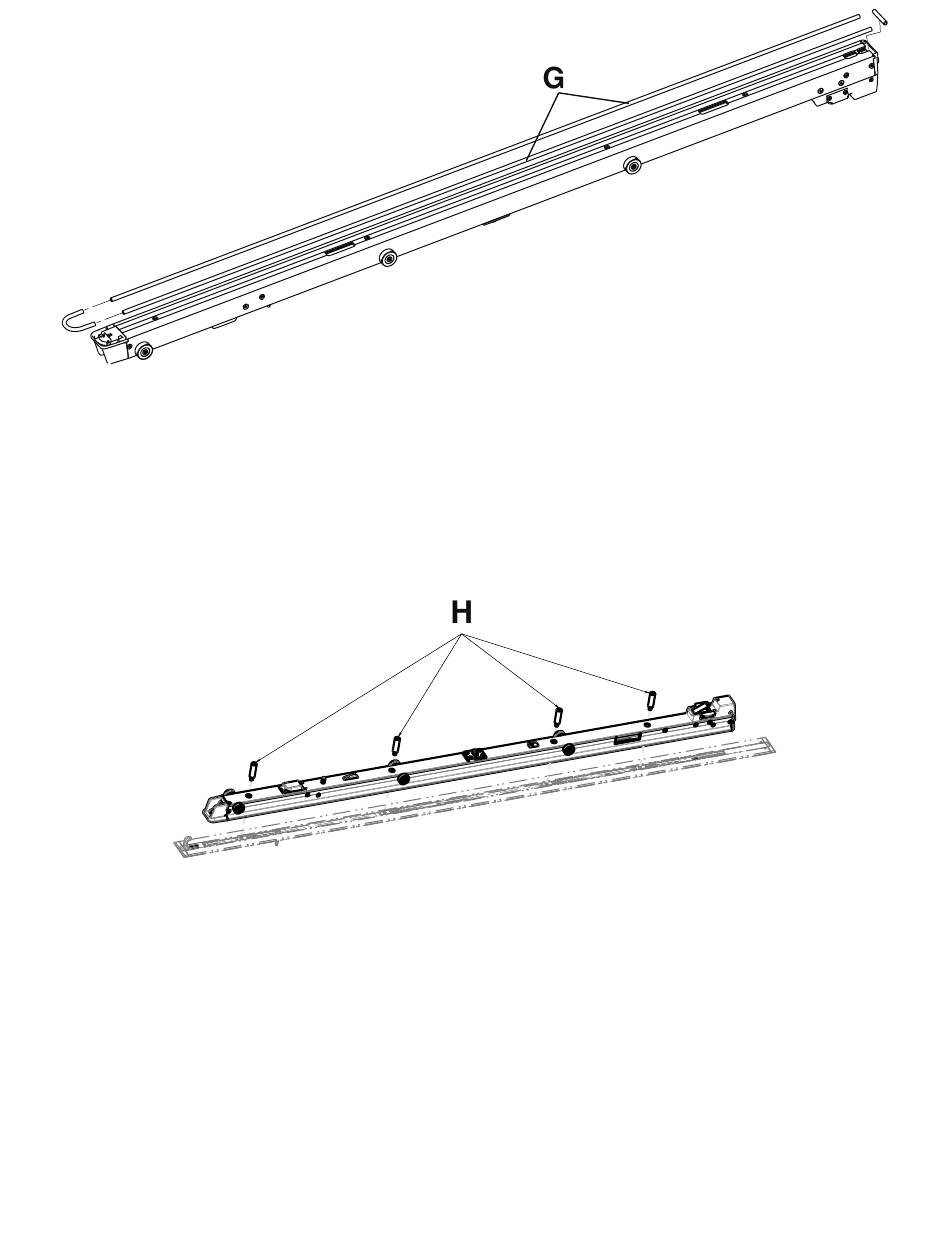

F F i i g g u u r r e e 8 8 – – A A n n c c h h o o r r s s e e a a l l s s
F F i i g g u u r r e e 9 9 – – I I n n s s t t a a l l l l a a n n c c h h o o r r m m o o u u n n t t i i n n g g p p o o s s t t s s
6390-809-005 Rev AA.0
