6.1.1 Pumps
Control DDD is designed for controlling pumps for water supply.
The main pumps of the system must be of the same
type and size.
6.1.2 Control variant
Control DDD is divided into three groups based on control variant:
Control
Description
variant
Two to six Grundfos pumps with integrated
-E
frequency converter (0.37 - 22 kW).
Two to six pumps connected to a Grundfos CUE
-EC
frequency converter - one per pump.
Two to six pumps connected to VFD frequency
-EF
converters - one per pump.
See also section 7. Overview of control

6.1.3 Remote sensor

The remote sensor logs the pressure in the water distribution
network at the end user or critical point. Every 24 hours the
logged data are sent as a text message to the controller via the
GSM network. The data are combined with the data from the
other remote sensors to form a model of the distribution network.
The sensors can be set to give a warning if the pressure drops
below a user-defined limit.
See also installation and operating instructions for the Sofrel
LS42 logger and the XiLog sensor.

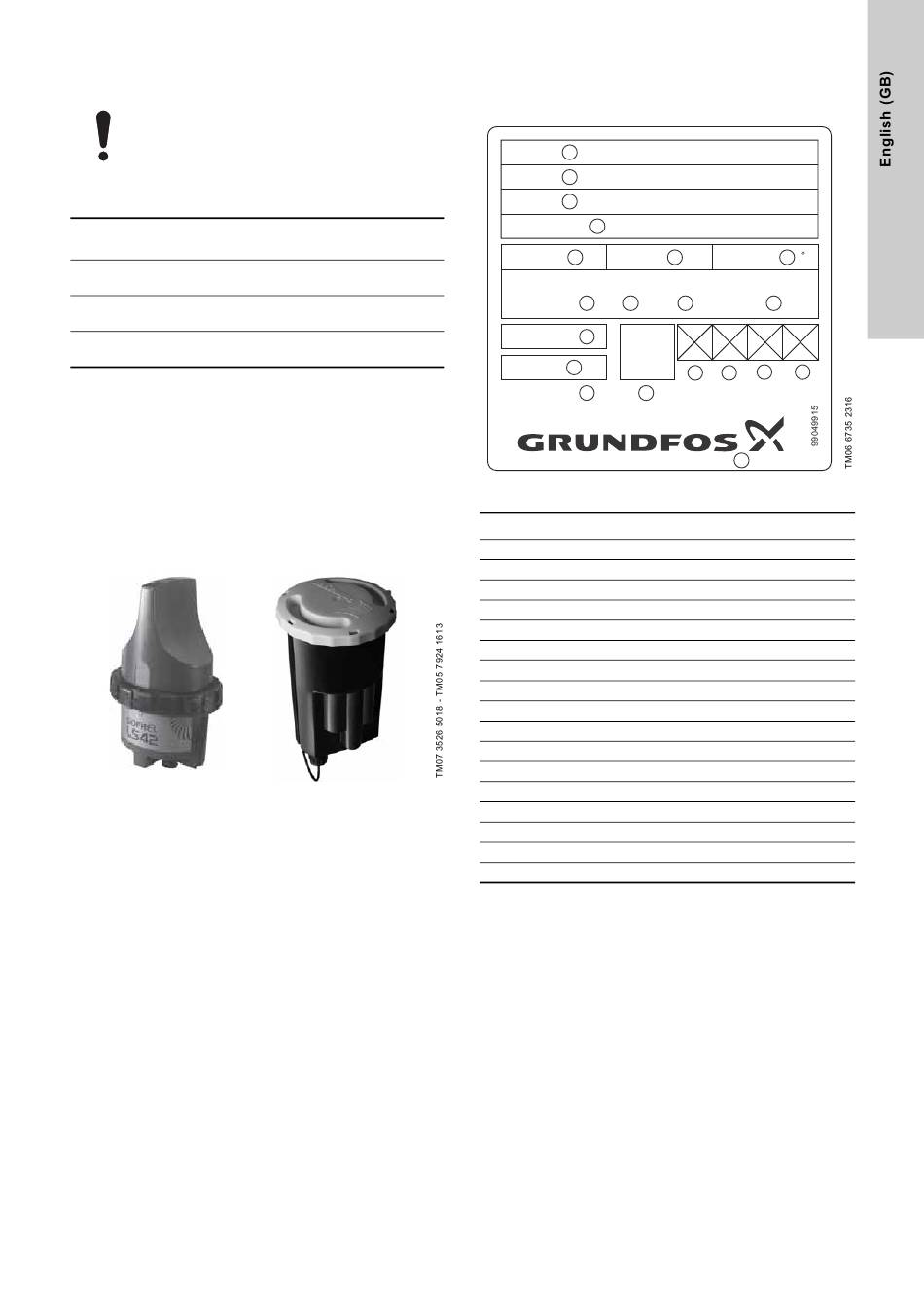

Fig. 6 Sofrel LS42 Logger and XiLog sensor
variants.

6.2 Identification

6.2.1 Nameplate

The nameplate is fitted on the control cabinet.
Type: 1
Model: 2
3
Mains:
4
Order NO.:
In: A Icc:
5
No. I
min
8 9
Pumps: A
12
IP Class:
QR
code
13 kg
Weight:
MADE IN XXX 14 15
DK - 8850 - Bjerringbro - Denmark
Fig. 7 Nameplate
Pos. Description
1 Type designation
2 Model (Part no., SAP serial no., year and week)
3 Supply voltage
4 Order no.
5 Rated current [A]
6 Short circuit current rating [kA]
7 Maximum ambient temperature [°C]
8 Number of main pumps
9 Minimum pump current [A]
10 Maximum pump current [A]
11 Starting method
12 Enclosure class
13 Net weight
14 Country of origin
15 QR code
16-19 Approval marks
20 Company address
kA T : C
6 7
ambmax
I Starting Method
max
10 11
A
1 2 3 4
16 17 18 19
20
