Setting range
You can select one function in each display:
• No function
• Operation, system
• Alarm, system
• Warning, system
• Ready, system
• Water shortage
• Min. pressure
• Max. pressure
• Emergency run
• Pump outside duty range
• Operation, pump(s)
• Operation, pump 1-6
• Alarm, pump 1-6
• Alarm, limit 1 exceeded
• Warning, limit 1 exceeded
• Alarm, limit 2 exceeded
• Warning, limit 2 exceeded
• Reduced operation.
• All pumps 100 %
• Fault, remote sensor 1-10
Setting via operating panel
• Settings > Secondary functions > Digital outputs.
Factory setting
Digital output Function
DO1 (CU 354) [71] Alarm, system
DO2 (CU 354) [74] Operation, system
8.7.33 Analog outputs (4.3.10)

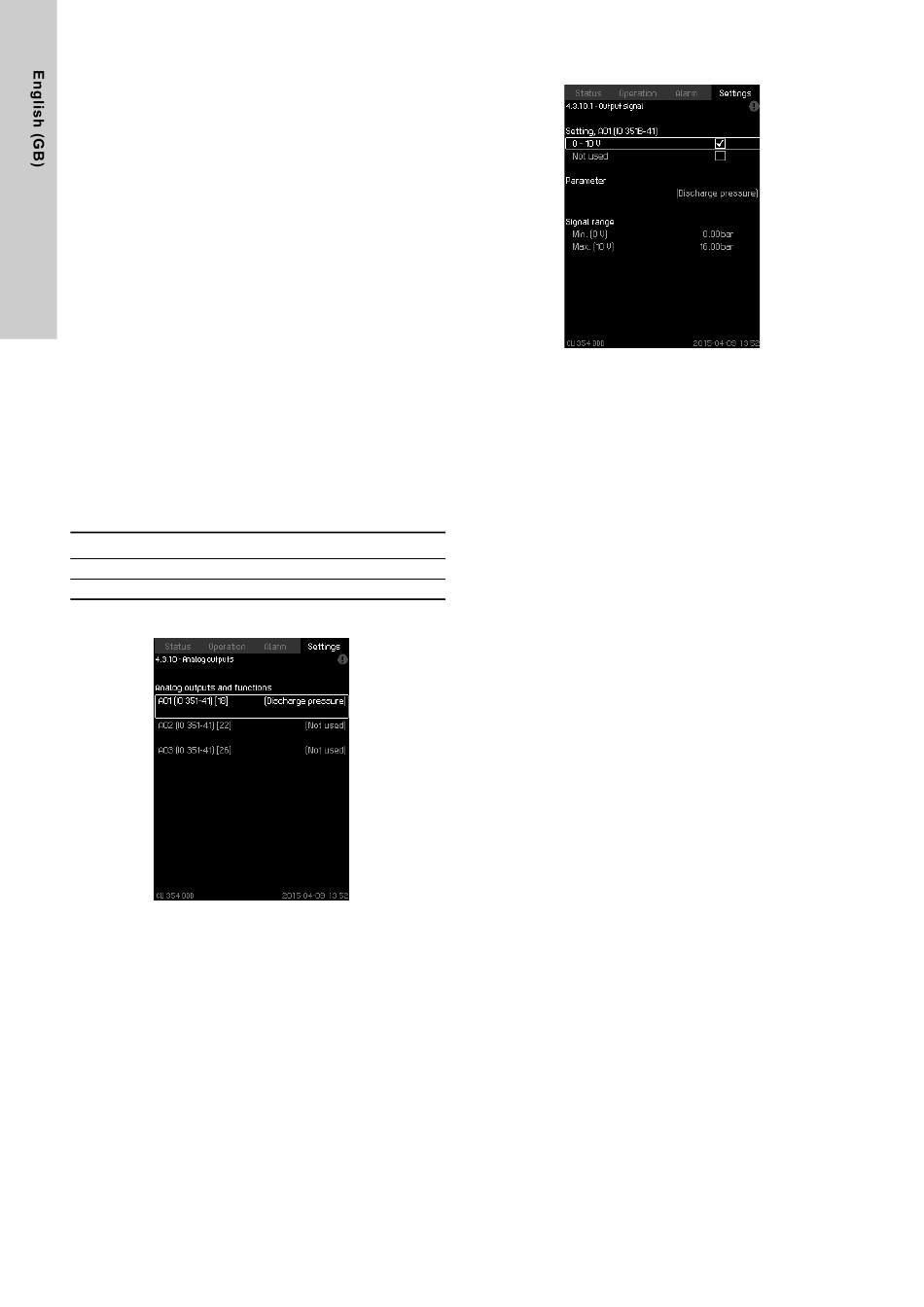

Fig. 84 Analog outputs
Description
DDD has three 0-10 V analog outputs.
Setting via operating panel
• Settings > Secondary functions > Analog outputs.
44
8.7.34 Output signal (4.3.10.1 - 4.3.10.3)
Fig. 85 Output signal
Description
You can select the parameters below.
Setting range
• 0-100 % signal
• Inlet pressure
• Discharge pressure
• External pressure
• System pressure
• Ambient temperature
• System power
• Power, pump 1-6
• Power, VFD
• Speed, pump 1-6
• Current, pump 1-6
Setting via operating panel
• Settings > Secondary functions > Analog outputs.
1. Select analog output and range.
2. Select: Parameter. Display 4.3.10.2 appears.
3. Select output.
4. Press [Back].
5. Set: Signal range.
