Description
The display shows the different status information on the logger:
Name: the name set for the sensor during commission, typically
the site name.*
Setpoint: the selected minimum pressure for the critical point.*
Sofrel Status:
• Pressure
• Time for last status
• Battery
• Remaining battery life in days
• Signal strength when the status was sent.
XiLog Status:
• Battery.
Latest data received: shows the date and time stamp for the last
data package received.*
Data Model: status of the current data model.*
* Common status for both Sofrel and XiLog.

8.4.11 Fieldbus status (1.2.9)

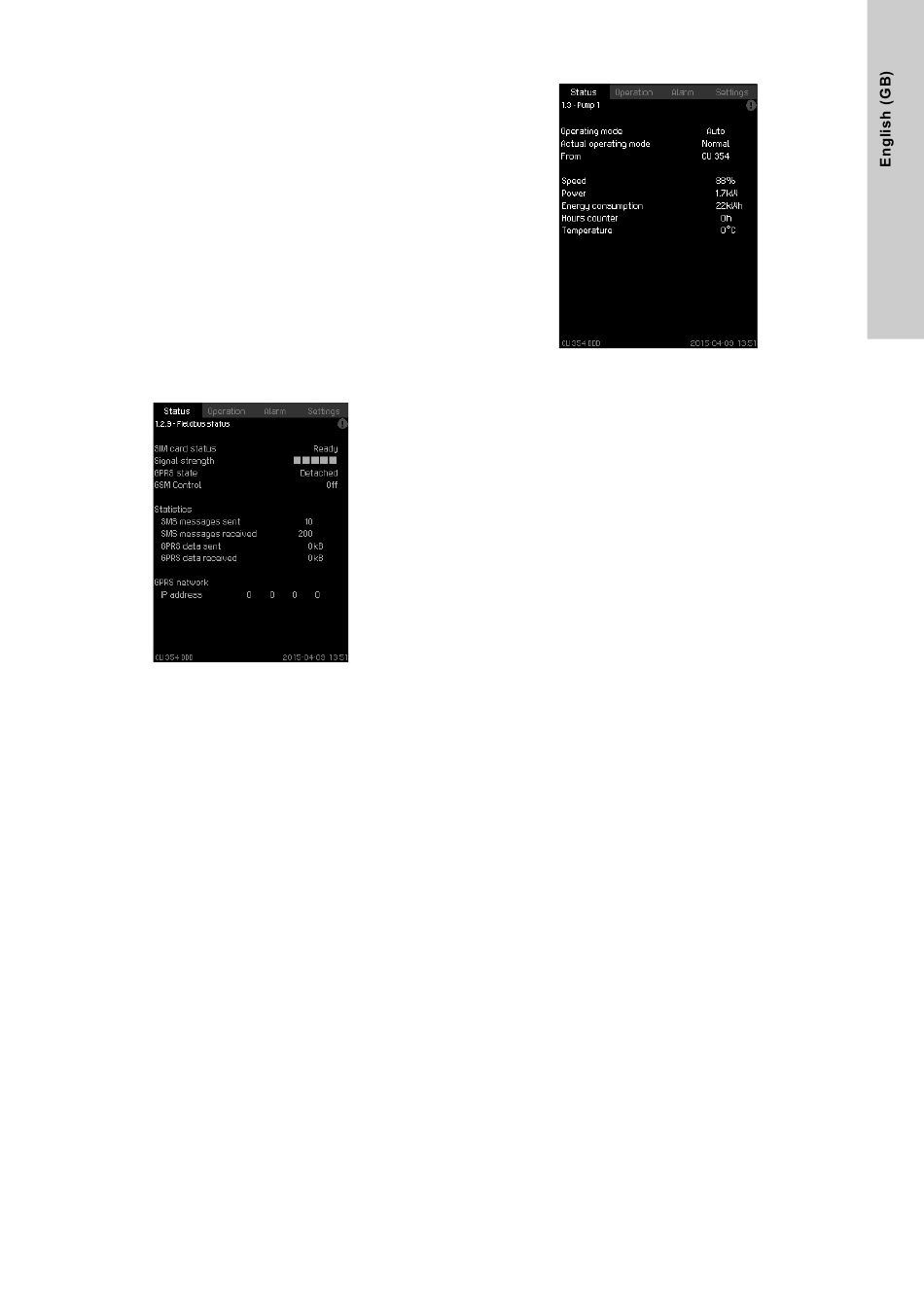

Fig. 30 Fieldbus status
Description
The display shows the status of the GSM network.
• SIM card status
• Signal strength.
Statistics:
• SMS messages sent
• SMS messages received.

8.4.12 Pump 1-6 (1.3 - 1.10)

Fig. 31 Pump 1
Description
The display shows the operational state of the individual pumps.
Note that the displays may vary as not all operational states are
available for all pump types.
The pumps can have different operating modes:
• Auto
– Together with other pumps in automatic operation, the pump
is controlled by CU 354 which ensures that the system
delivers the required performance.
• Manual
– The pump is not controlled by CU 354. In manual operation,
the pump has one of the following operating modes:
- Normal: The pump runs at a set speed.
- Stop: The pump has been forced to stop.
Besides information about the operating mode, you can read
various parameters in the status display, such as these:
• current operating mode
• control source
• speed
• power (only DDD-E/-EC)
• energy consumption (only DDD-E/-EC)
• operating hours.
