8.5.5 Pump 1-6 (2.1.4.1 - 2.1.4.6)

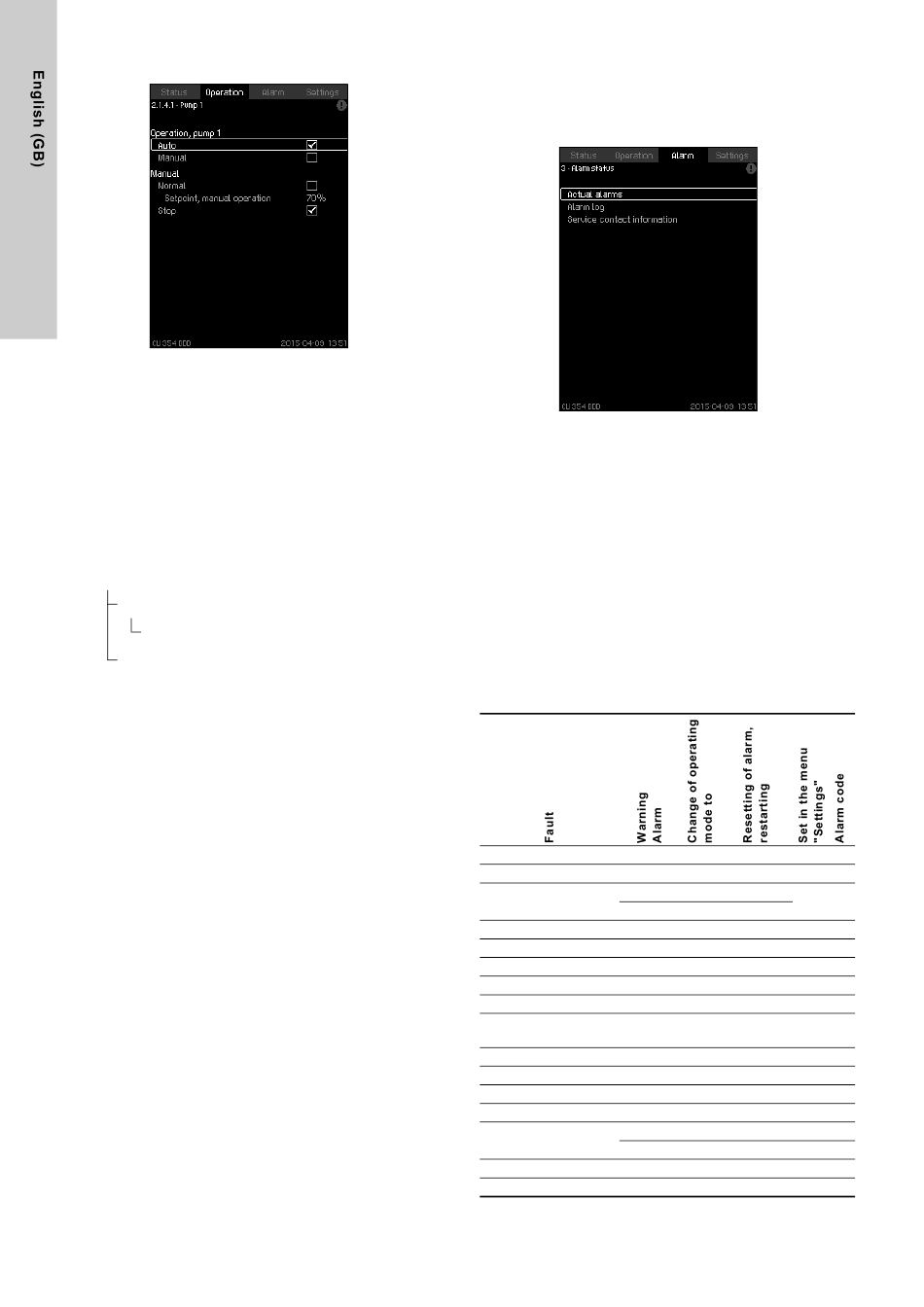

Fig. 36 Pump 1-6
Description
The display is shown for the individual pumps and it allows you to
set an operating mode.
Setting range
You can select "Auto" or "Manual" as well as the operating mode
of the pump for manual operation - "Normal" or "Stop".
Setting via operating panel
• Operation > Further settings > Individual pump control.
1. Select pump.
2. Select: Auto or Manual.
3. Manual: Select operating mode.
Normal:
Setpoint, manual operation: Set the setpoint.
Stop
Factory setting
Auto.
24

8.6 Alarm (3)

This menu gives an overview of alarms and warnings.
You can reset alarms.

8.6.1 Alarm status (3)

Fig. 37 Alarm status
Description
A fault in the system or one of the components monitored can
cause an alarm or a warning. Besides the fault signal via the
alarm and warning signal relay and the red indicator light on CU
354, an alarm can also cause a change of operating mode, for
instance from "Normal" to "Stop". A warning only causes a fault
indication.
The table shows the possible causes of fault together with an
alarm code, and whether they result in an alarm or a warning. It
also shows to what operating mode the system will change in
case of alarm, and whether restarting of the system and resetting
of the alarm is manual or automatic.
The table also shows that the reaction to some of the fault causes
mentioned can be set in the "Settings" menu. See sections
8.7.24 Soft pressure build-up (4.3.3)
functions (4.4).
Leakage current -
Phase failure Warning
Warning
External fault
Alarm
Too many restarts -
Mains supply failure -
Undervoltage, pump Warning
Communication fault Warning
Other fault -
Performance required
-
cannot be met
Battery low Warning
Replace bearings -
Replace varistor(s) -
Overvoltage, pump Warning
Warning
Undervoltage, pump
Warning
Overload, pump Warning
Overload Warning
and 8.7.48 Monitoring
- - - - 1
- Auto - 2
- Man/auto
X 3
Stop Man/auto
- - - - 4
- - - - 6
- Auto - 7
- Auto - 10
- - - - 16
- - - - 17
- - - - 28
- - - - 30
- - - - 31
- Auto - 32
- Auto - 40
- Auto - 42
- Auto - 48
- Auto - 49
