Installation

4.1

Selection of the installation location

When selecting the installation location, make sure that the
surface underneath has sufficient load-bearing capacity
and that there is sufficient space for the cable outlets on
the plug sides of the processor unit. The permissible
bending radius of the cables used should be taken into
account.
The device should be mounted as close as possible to the
place of use, as the UHF antenna cables are limited in
length.
To prevent malfunctions or injuries, the device must be
firmly mounted. The mounting location should be as
low-vibration, temperature-stable and protected from
shocks as possible.
Mounting plates and brackets as well as other
mounting accessories can be found at
www.balluff.com.
Four slotted holes for M5 screws are provided for
mounting the processor unit. These are located at the
corners of the housing frame in the area of the front plug
panels.
www.balluff.com
4.2

Mounting the processor unit

59,8
20
M5

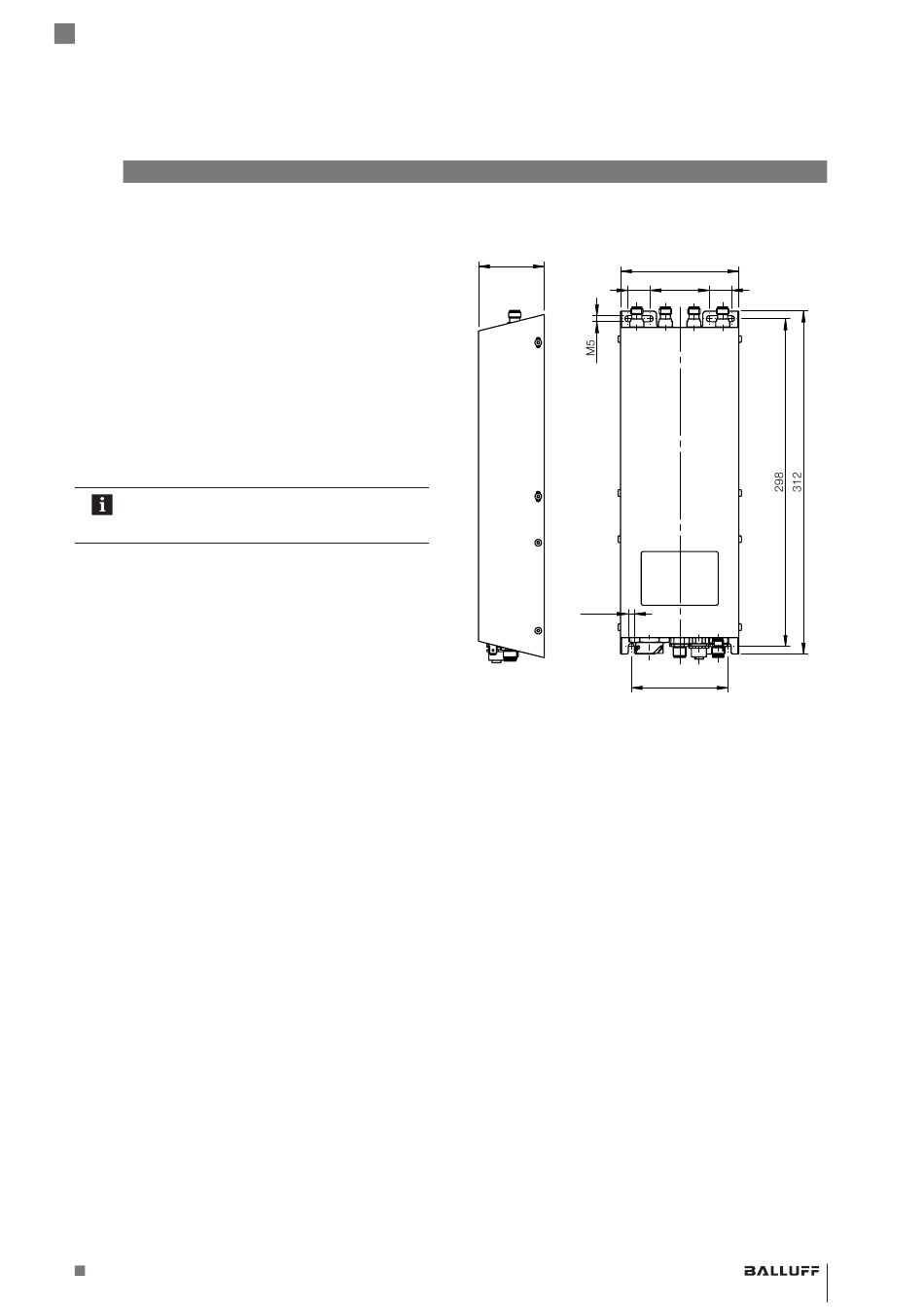

Fig. 4-1: Installation
1. Select a suitable installation position.
2. Fasten processor unit with 4 M5 screws
(property class 8.8, lightly oiled, tightening torque
M = 5.2 Nm).
107,6
54 20
