Technical data

5.1 Dimensions
59,8

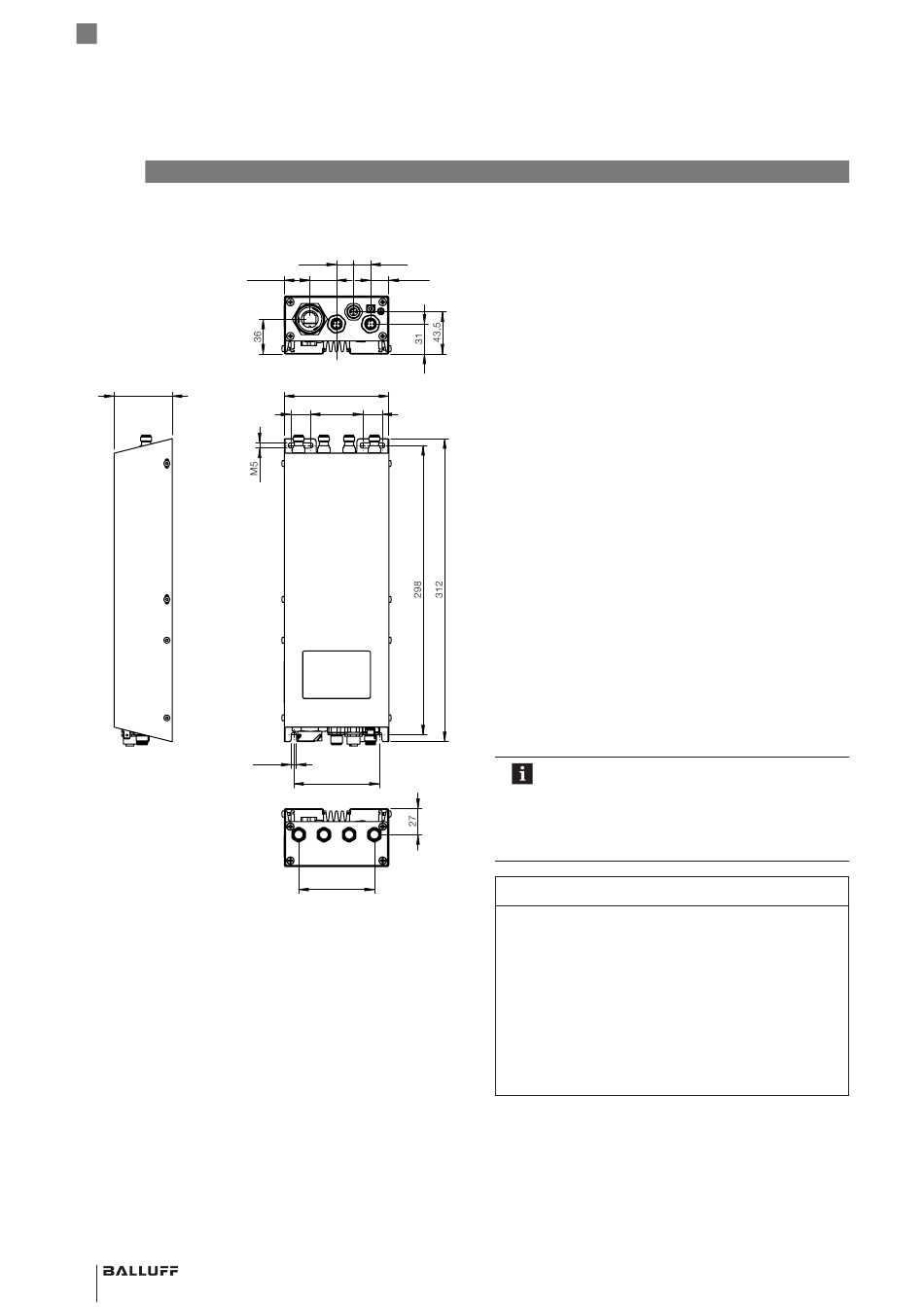

Fig. 5-1: Dimensions (mm)
18 english
17,5 17,5
26,3 27,5 18,8
107,6
20 54 20
BIS U-6127
M5
88
3x26
5.2

Mechanical data

Housing material Coated steel, anodized
aluminum
Dimensions (L × W × H) 312 × 108 × 60 mm
Product weight Approx. 2050 g
X1 Power M12 integral plug, 5-pin,
A-coded
X2 IO-Link M12 panel socket, 5-pin,
A-coded
X3 Service Integral plug M12, 5-pin,
B-coded
X4 Ethernet TCP/IP RJ-45 panel socket, 8-pin
1...4 antenna ports TNC-R integral plug
5.3

Electric data

Power supply VS +24 V DC ±20 %
(LPS Class 2)
Residual ripple 5 %
Current consumption 1 A
without load
Maximum current con- 3 A
sumption
Interfaces Ethernet TCP/IP / OPC UA
IO-Link master
USB (Service)
The processor unit and connected accessories
may only be operated with limited power
according to UL 61010-1 Third Edition,
Sub. Clauses 9.4 or LPS according to
UL 60950-1 or Class 2 according to UL 1310
or UL 1585.
NOTICE
Exceeding the maximum current consumption
If the maximum current consumption is exceeded, the
processor unit and connected system components may
be damaged.
► During operation, make sure that the total current
carried by the Power terminal does not exceed 3 A.
► The voltage output (L+) on the IO-Link port and
digital outputs (I/O) are supplied via the Power
connection. The sum of the partial currents of these
pins, must not exceed a maximum current of 2 A.
