CHLORIDE 70-NET 10 - 40KVA NORMAL AND SAFE OPERATION
ICE) via the serial interface (RS232). Using the service software included with the unit, set-
tings of the UPS can be changed and the UPS data can be queried.

6.9. CONTROLS AND MESSAGES

The display provides the following structure of windows. Each window has an dedicated
number (see fig. 24). By pressing the keys „menu up" or „menu down" a walk through the
ENG
windows can be made.
If it is necessary to modify the settings in menus 21/22/23 the UPS must be switched
to Automatic Bypass.

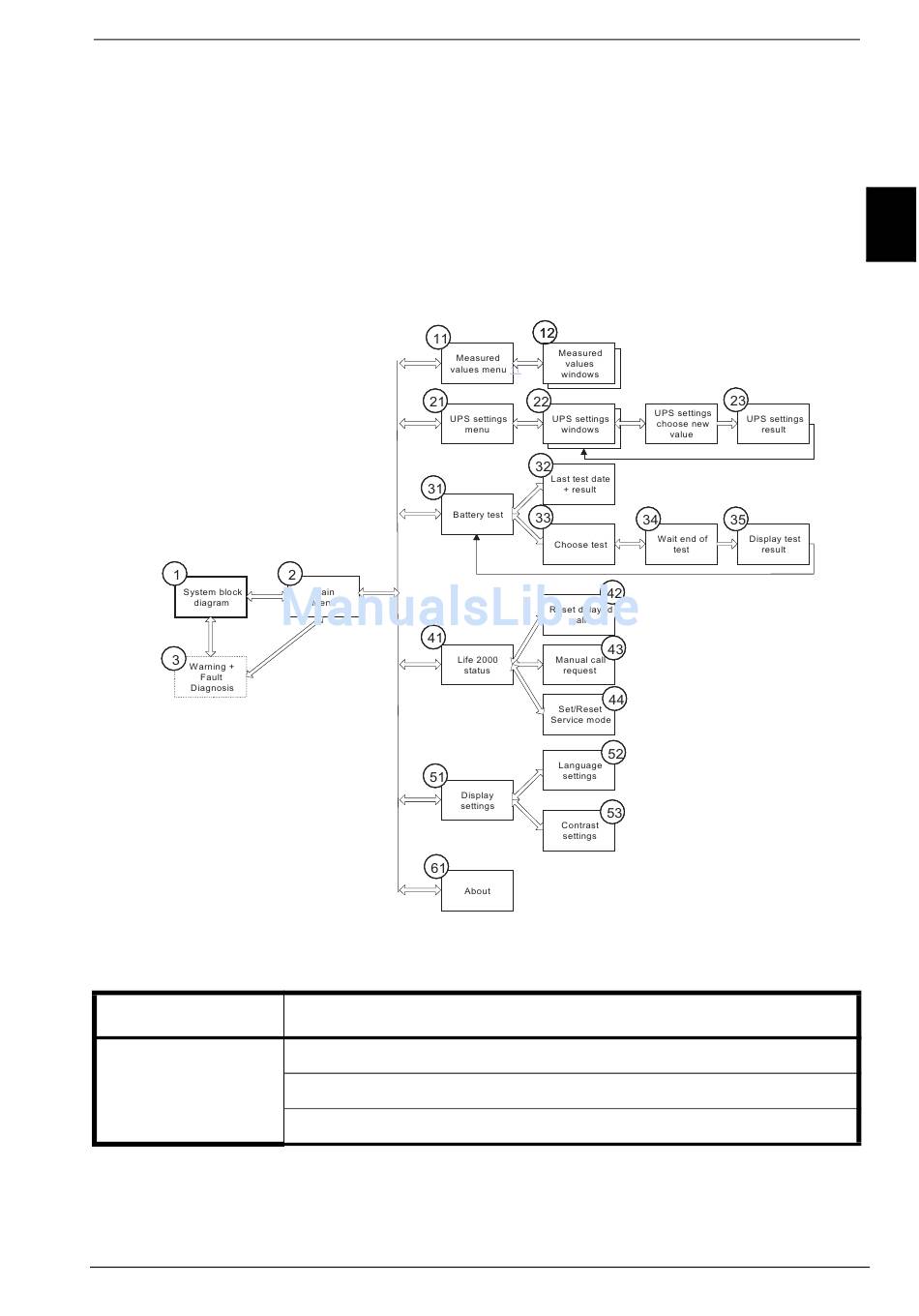

Figure 24 - - System block, main- and submenus
Table 4: Displayed Text - System Block and Main Menu
N°. Description
1* "Load"
SYSTEM
"Back-up: .. in minutes"
STATUS
Presentation of "System Block Diagram"
User Handbook - 10H52163PAMC rev.9 - 06/2008 Page 35
