CHLORIDE 70-NET 10 - 40KVA

5. INTERFACES

70-NET is equipped with
• a standard serial interface RS232 COM for data transfer protocol or modem (X6);
• an AS400 contact interface for signal exchange (X7);
• a slot for a SNMP adapter (SMNP as option) (XS3);
• a slot for modem adapter (XS6);
• a service Interface configured for use with PPVIS (X3);
• an interface to provide emergency shut down (EPO) ( X8).
All of which are located on the rear panel (see fig. 7 on page 14).
The interfaces can be used for:
• Direct communication between UPS and computer
• Integration of the UPS as client into a network with centralised monitoring (SNMP)
• Transfer of operational states to external alarm systems
The necessary communication software packages and interface cables are available as op-
tions.
Notice
The slots XS6 and XS3 are interconnected with interfaces X6 and X3 respectively, if an
adapter card is fitted in either slot the corresponding interface is disabled
X8
EPO

5.1. STANDARD INTERFACE COM - X6

The 9-pole SUB-D male connector (pin contacts) contains the RS 232 signals.
The COM interface is electrically isolated from all other current circuits.
SGN at pin 5
This connection is the reference point for all signals.
User Handbook - 10H52163PAMC rev.9 - 06/2008
XS3
X7 X3
Contacts RS 232
AS/400 Service

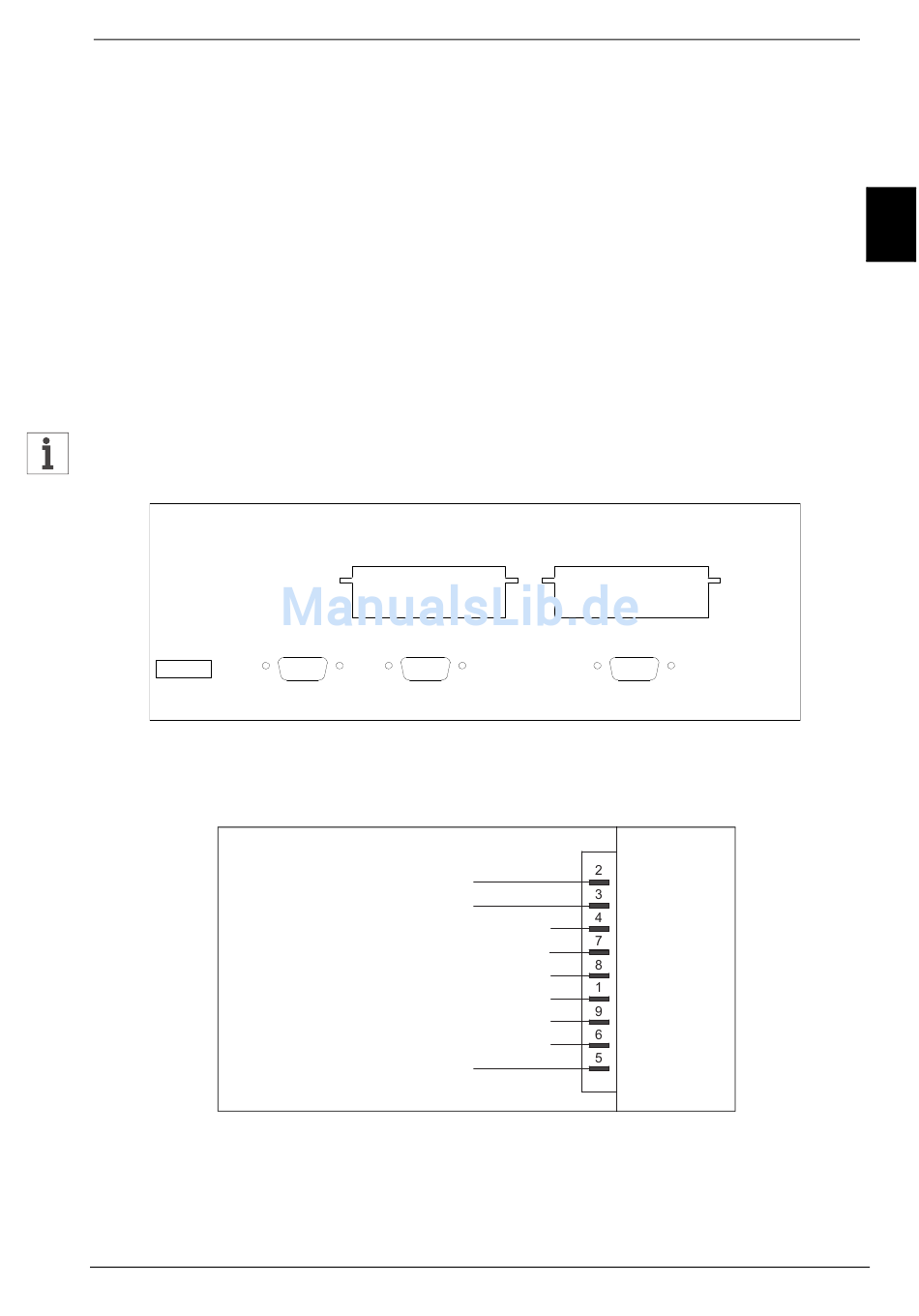

Figure 12 - Connectivity panel

Figure 13 - Standard interface COM
XS6
X6
RS 232
Modem/Multi
Receive RS232

Transmit RS232

Not used

Not used

Not used

Not used

Not used

Not used

Signal ground

INTERFACES
ENG
Page 23
