INTERFACES
RXD at pin 2 and TXD at pin 3
Correspond to the normal assignment of an RS 232 interface.

5.2. COMPUTER RELAY INTERFACE - X7

The UPS is equipped with a 9-pole D-type female connector comprising potential-free con-
tacts and conforming to the requirements of IBM AS/400 and other computing systems.
The nominal rating of the potential-free contacts is 24V, 1A.

5.3. PPVIS CONFIGURED SERVICE INTERFACE - X3

The service interface is a 9-pin D-type female connector for RS232 serial communications
configured via the PPVis interface for monitoring and control software (PPVis).
The pin functions are as follows:
Page 24

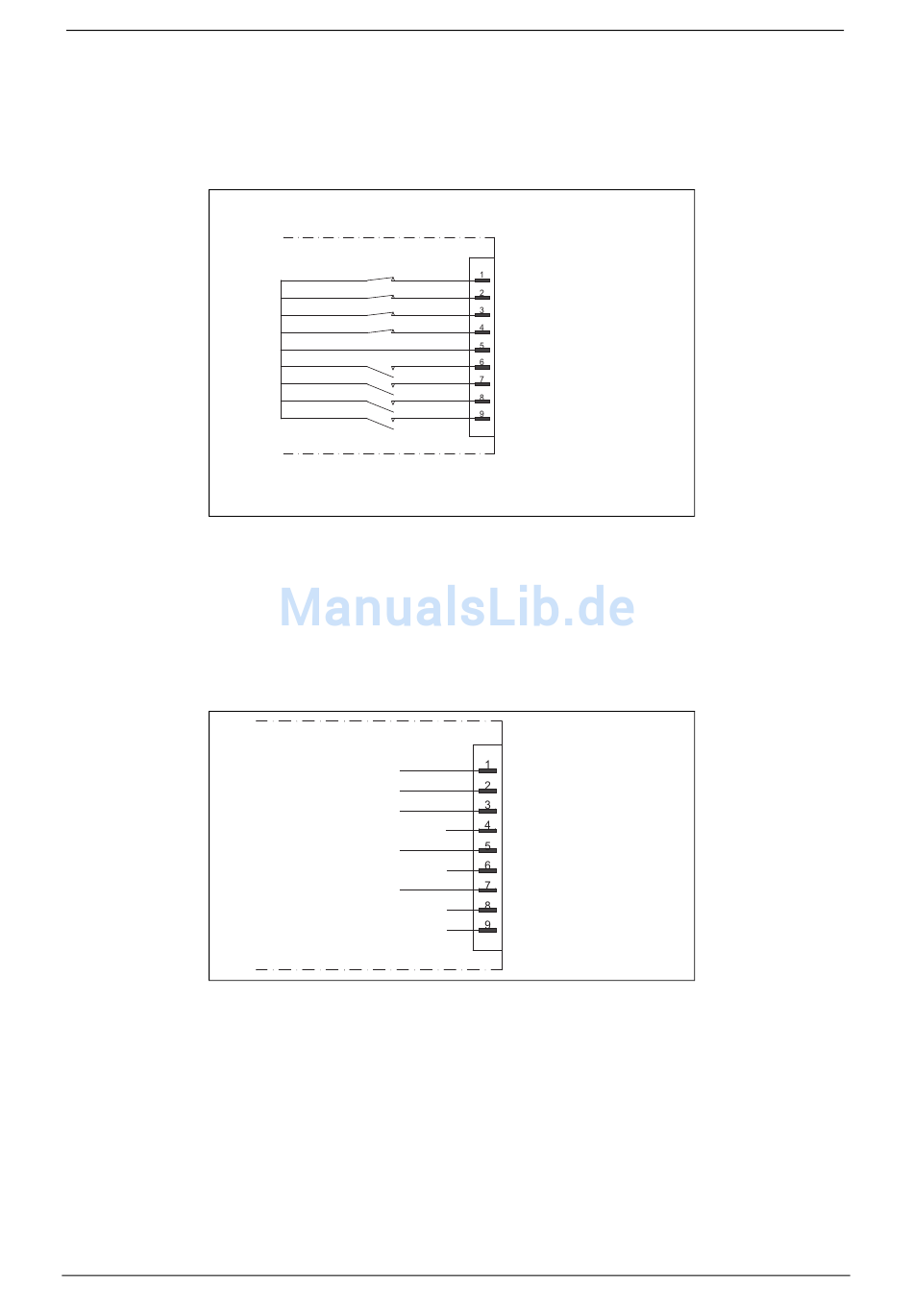

Figure 14 - Computer Relay Interface

Ground
Not used
Ground RS232
Not used
Not used
Not used
Figure 15 - Service interface
User Handbook - 10H52163PAMC rev.9 - 06/2008
CHLORIDE 70-NET 10 - 40KVA
Bypass active - NC

End of backup time - NC

Summary alarm - NC

Mains interruption - NC

Signal ground

Bypass active - NO

End of backup time - NO

Summary alarm - NO

Mains interruption - NO

Shielding

TXD
Transmit RS232

RXD Receive RS232




RTS
Transmit enable RS232
