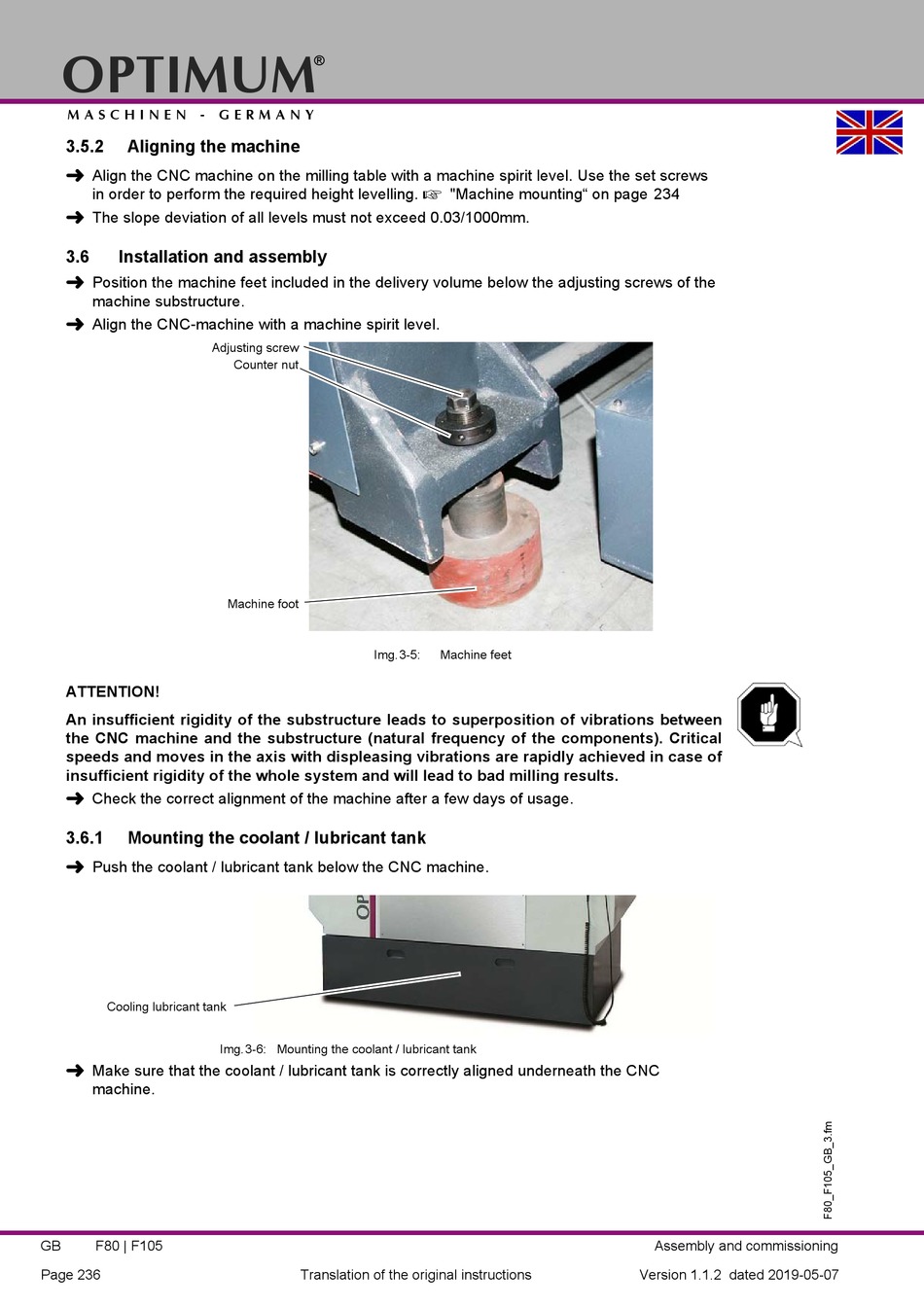

3.5.2 Aligning the machine

Align the CNC machine on the milling table with a machine spirit level. Use the set screws
in order to perform the required height levelling.

The slope deviation of all levels must not exceed 0.03/1000mm.
3.6

Installation and assembly


Position the machine feet included in the delivery volume below the adjusting screws of the
machine substructure.

Align the CNC-machine with a machine spirit level.
Adjusting screw
ATTENTION!
An insufficient rigidity of the substructure leads to superposition of vibrations between
the CNC machine and the substructure (natural frequency of the components). Critical
speeds and moves in the axis with displeasing vibrations are rapidly achieved in case of
insufficient rigidity of the whole system and will lead to bad milling results.

Check the correct alignment of the machine after a few days of usage.
3.6.1 Mounting the coolant / lubricant tank

Push the coolant / lubricant tank below the CNC machine.
Cooling lubricant tank

Make sure that the coolant / lubricant tank is correctly aligned underneath the CNC
machine.
GB F80 | F105
Page 236
®
Counter nut
Machine foot
Img.3-5:
Img.3-6: Mounting the coolant / lubricant tank
Translation of the original instructions

"Machine mounting" on page 234
Machine feet
