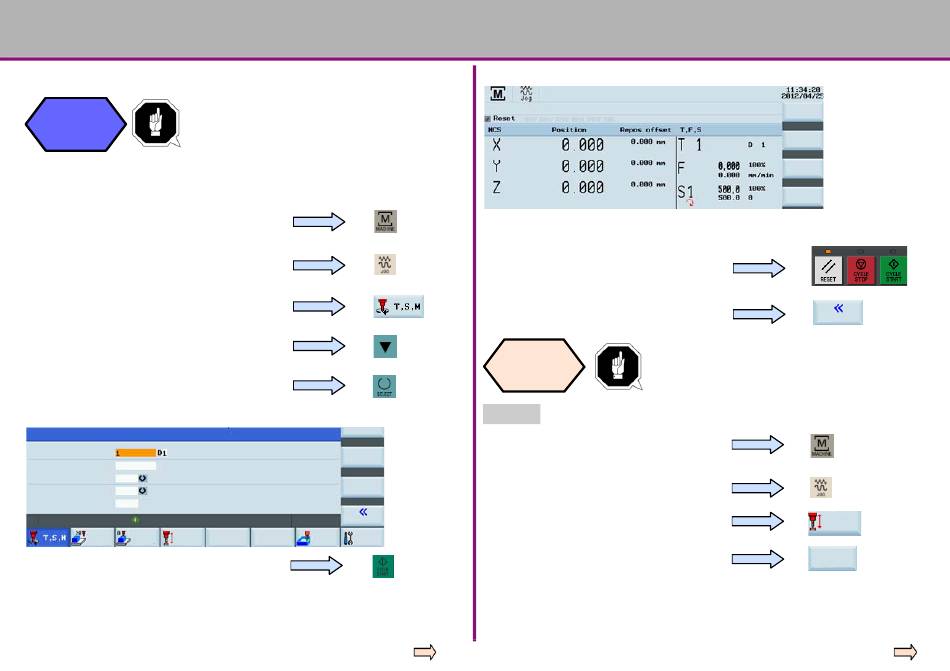

Brief instruction 808D Milling
SEQUENCE
Start
spindle
A tool must have been loaded and rotated to the
position.
Start the spindle before adjusting tools as follows:
Press the "Machine" key on the PPU
Press the "JOG" key on the MCP
Press the "T.S.M" SK on the PPU
Enter "500" at "Spindle speed"
Select "M3" using the "Select" key on the PPU
T,S,M
Tool change
Spindle speed
rpm
Spindle direction
Activate zerooffset
Other M function
to activate above functions.
Press ´CYCLE START´
Meas.
Set Meas.
tool
rel work.
Press the "CYCLE START" key on the MCP
808D
Tool Setup
Back
Face
Sett.
cutt.
Page 314
Press "Reset" on the MCP to stop the spindle
Press the "Back" SK on the PPU
Measure
tool
A tool must have been created and loaded
before it can be measured!
Step 1 Measure length
Press the "Machine" key on the PPU
Press the "JOG" key on the MCP
Press the "Meas. tool" SK on the PPU
Press the "Measure manual" SK on the PPU
Operating and Programming — Milling
OPTIMUM
M A S C H I N E N - G E R M A N Y
OPTIMUM
rotation
back
Meas-
tool
Measure
manual
