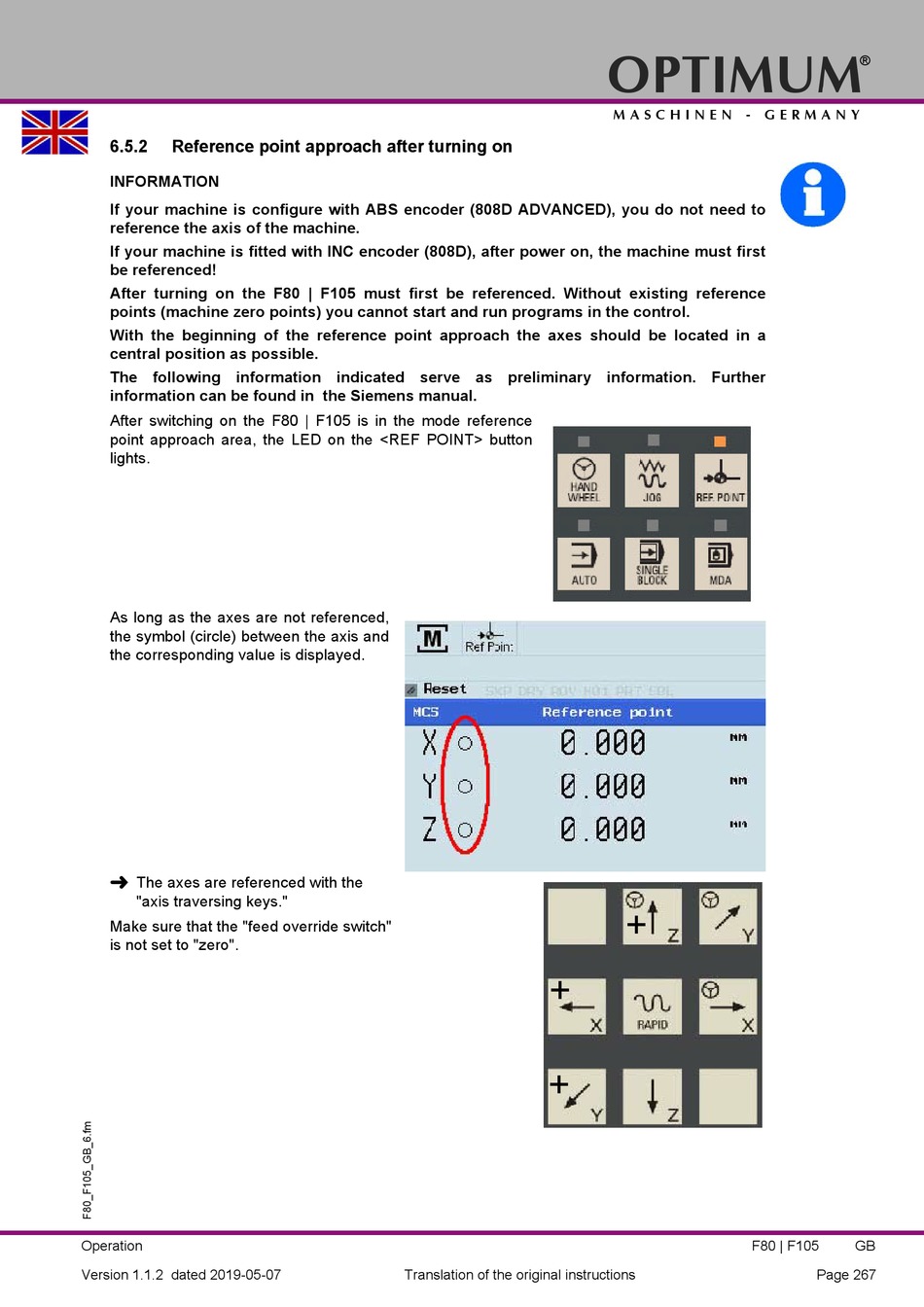

6.5.2 Reference point approach after turning on
INFORMATION
If your machine is configure with ABS encoder (808D ADVANCED), you do not need to
reference the axis of the machine.
If your machine is fitted with INC encoder (808D), after power on, the machine must first
be referenced!
After turning on the F80 | F105 must first be referenced. Without existing reference
points (machine zero points) you cannot start and run programs in the control.
With the beginning of the reference point approach the axes should be located in a
central position as possible.
The following information indicated serve as preliminary information. Further
information can be found in the Siemens manual.
After switching on the F80 | F105 is in the mode reference
point approach area, the LED on the <REF POINT> button
lights.
As long as the axes are not referenced,
the symbol (circle) between the axis and
the corresponding value is displayed.

The axes are referenced with the
"axis traversing keys."
Make sure that the "feed override switch"
is not set to "zero".
