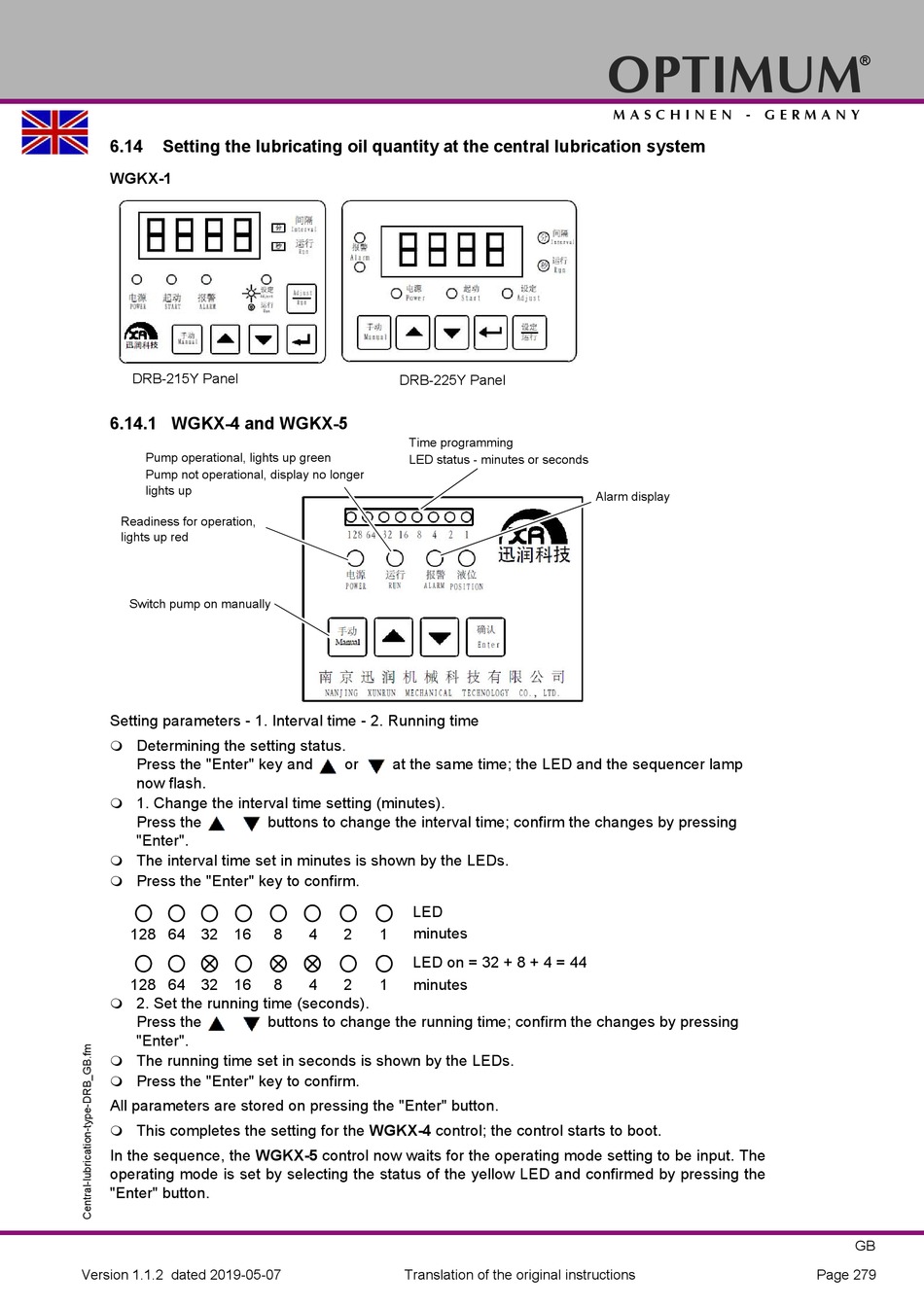

6.14
Setting the lubricating oil quantity at the central lubrication system
WGKX-1
DRB-215Y Panel
6.14.1 WGKX-4 and WGKX-5
Pump operational, lights up green
Pump not operational, display no longer
lights up
Readiness for operation,
lights up red
Switch pump on manually
Setting parameters - 1. Interval time - 2. Running time
Determining the setting status.
Press the "Enter" key and
now flash.
1. Change the interval time setting (minutes).
Press the
"Enter".
The interval time set in minutes is shown by the LEDs.
Press the "Enter" key to confirm.
128 64 32 16
128 64 32 16
2. Set the running time (seconds).
Press the
"Enter".
The running time set in seconds is shown by the LEDs.
Press the "Enter" key to confirm.
All parameters are stored on pressing the "Enter" button.
This completes the setting for the WGKX-4 control; the control starts to boot.
In the sequence, the WGKX-5 control now waits for the operating mode setting to be input. The
operating mode is set by selecting the status of the yellow LED and confirmed by pressing the
"Enter" button.
