Selecting the operating modes on the WGKX-5:
Without pressure alarm - yellow LED is permanently lights up. The centralised lubrication

system outputs an acoustic signal; the alarm LED lights up if the container fill level is too
low.
with pressure alarm - yellow LED flashes. The centralised lubrication system outputs an

acoustic signal and the alarm LED lights up if the pressure is not built up in the given time.
6.14.2 DRB 1220

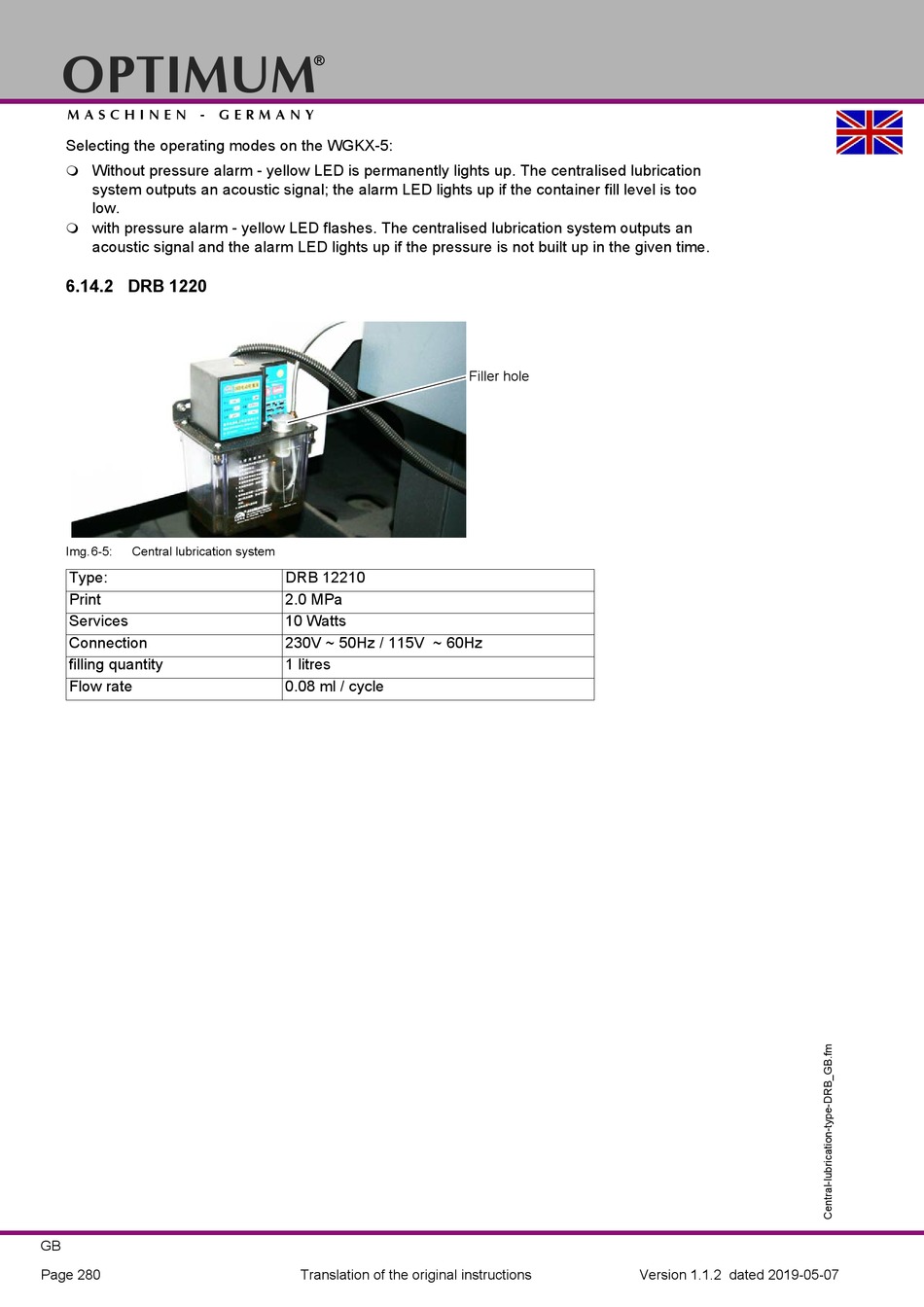

Img.6-5: Central lubrication system
Type:
Print
Services
Connection
filling quantity
Flow rate
GB
Page 280
®
DRB 12210
2.0 MPa
10 Watts
230V ~ 50Hz / 115V ~ 60Hz
1 litres
0.08 ml / cycle
Translation of the original instructions
Filler hole
