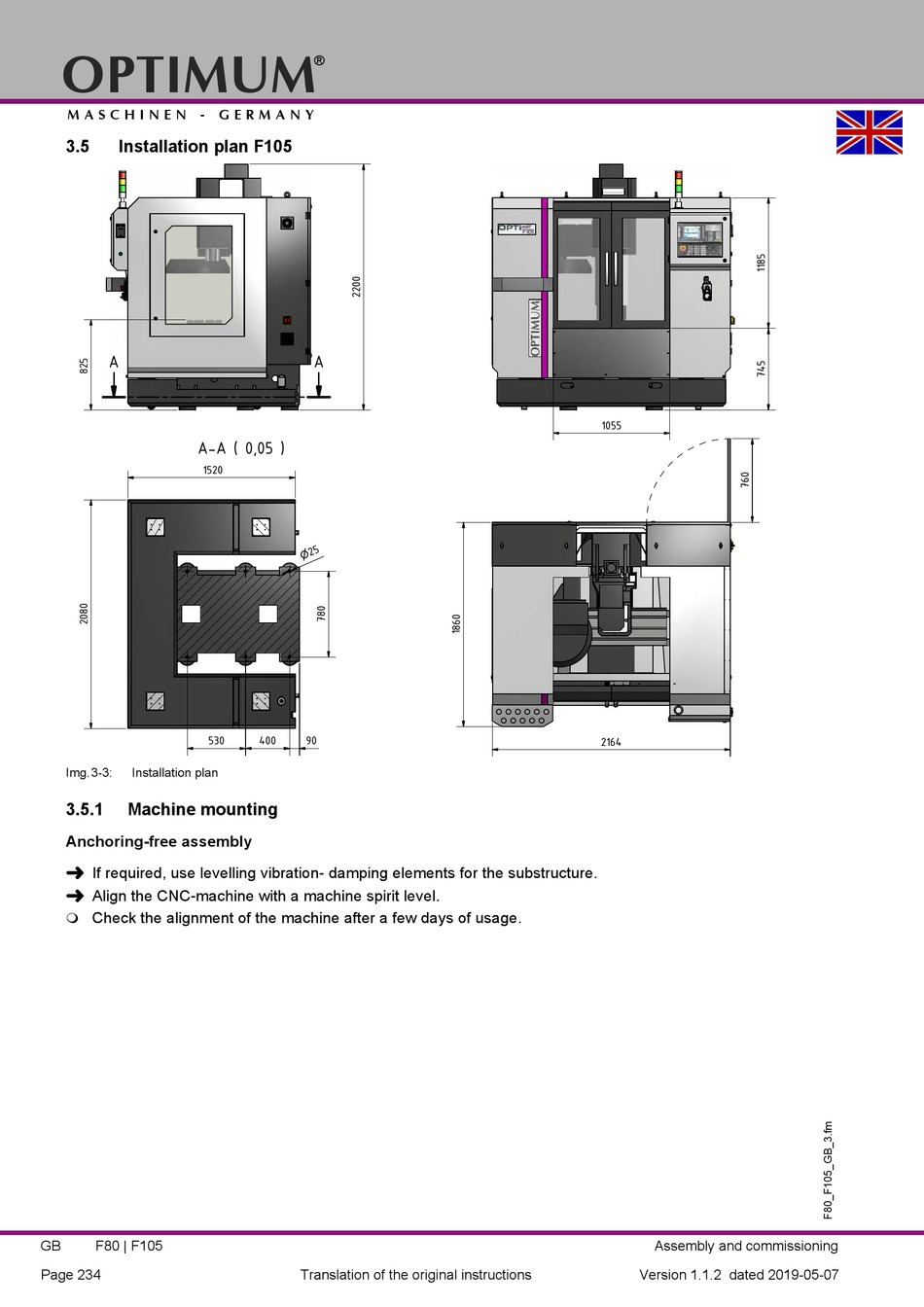

3.5 Installation plan F105
A
A-A ( 0,05 )
1520
530
Img.3-3: Installation plan
3.5.1 Machine mounting
Anchoring-free assembly

If required, use levelling vibration- damping elements for the substructure.

Align the CNC-machine with a machine spirit level.
Check the alignment of the machine after a few days of usage.

GB F80 | F105
Page 234
®
A
400 90
Translation of the original instructions
1055
2164
Assembly and commissioning
Version 1.1.2 dated 2019-05-07
