Brief instruction 808D Milling
SEQUENCE

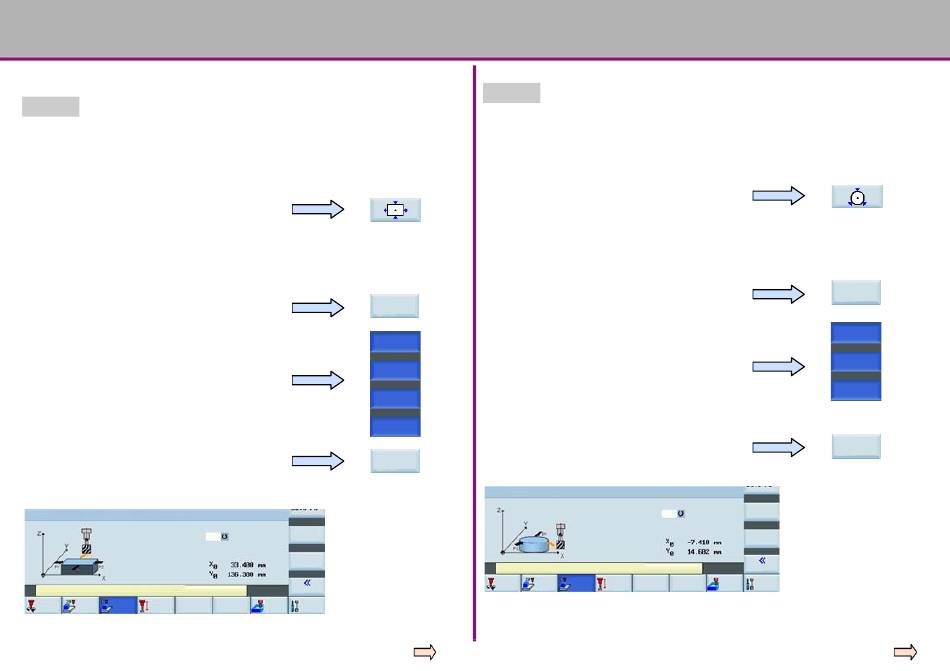

This method is normally used for setting the workpiece zero point at the
Method 2
center point of a rectangular workpiece.
Using tools with a measured "length and radius", move them to the four edges of the
rectangular workpiece. Using either JOG or Handwheel, scratch an edge and then
calculate the zero point of the workpiece.
Press the corresponding SK of the second icon on
the right-hand side of the PPU.
Observing the figure on the PPU, move the coordinate axis following the orange arrow
to move the tool to the specified position and scratch the edge of the workpiece.
Press the "Save P1" SK on the PPU to save the
coordinate axis of the 1st position in the system.
Repeat the process for positions 2, 3 and 4.
(When the setting is complete, the buttons will be
Press the "Set WO" SK on the PPU.
Workpiece measurement, center of rectangle
Work offset
Offset
Compensation data have been activated!
Set Meas.
Meas.
T,S,M
work. tool
rel
808D
Save P1
Save P1
Save P2
Save P3
shown in blue.)
Save P4
Set
WO
You have then finished
setting the zero point of
the workpiece as the
center point of the
Save P4
G54
rectangular workpiece.
Set
WO
Back
Face
Sett.
cutt.
Workpiece Setup
This method is normally used for setting the zero points at the center
Method 3
point of a circular workpiece.
Using tools with a measured "length and radius", move them to the three edges of the
circular workpiece. Using either JOG or Handwheel, scratch an edge and then calculate
the zero point of the workpiece.
Press the corresponding SK of the third icon on
Observing the figure on the PPU, move the coordinate axis following the orange arrow
to move the tool to the specified position and scratch the edge of the workpiece.
Press the "Save P1" SK on the PPU to save the
coordinate axis of the 1st position in the system.
Repeat the process for positions 2 and 3.
(When the setting is complete, the buttons will be
Press the "Set WO" SK on the PPU.
Workpiece measurement, center of circle
Compensation data have been activated!
Meas.
Set
T,S,M
rel
work.
Page 321
OPTIMUM
M A S C H I N E N - G E R M A N Y
the right-hand side of the PPU.
shown in blue.)
Work offset
G54
Set
Offset
WO
Back
Meas. Face
Sett.
tool cutt.
Operating and Programming — Milling
Save P1
Save P1
Save P2
Save P3
Set
WO
You have then finished
setting the zero point of the
workpiece as the center
point of the circular
workpiece.
