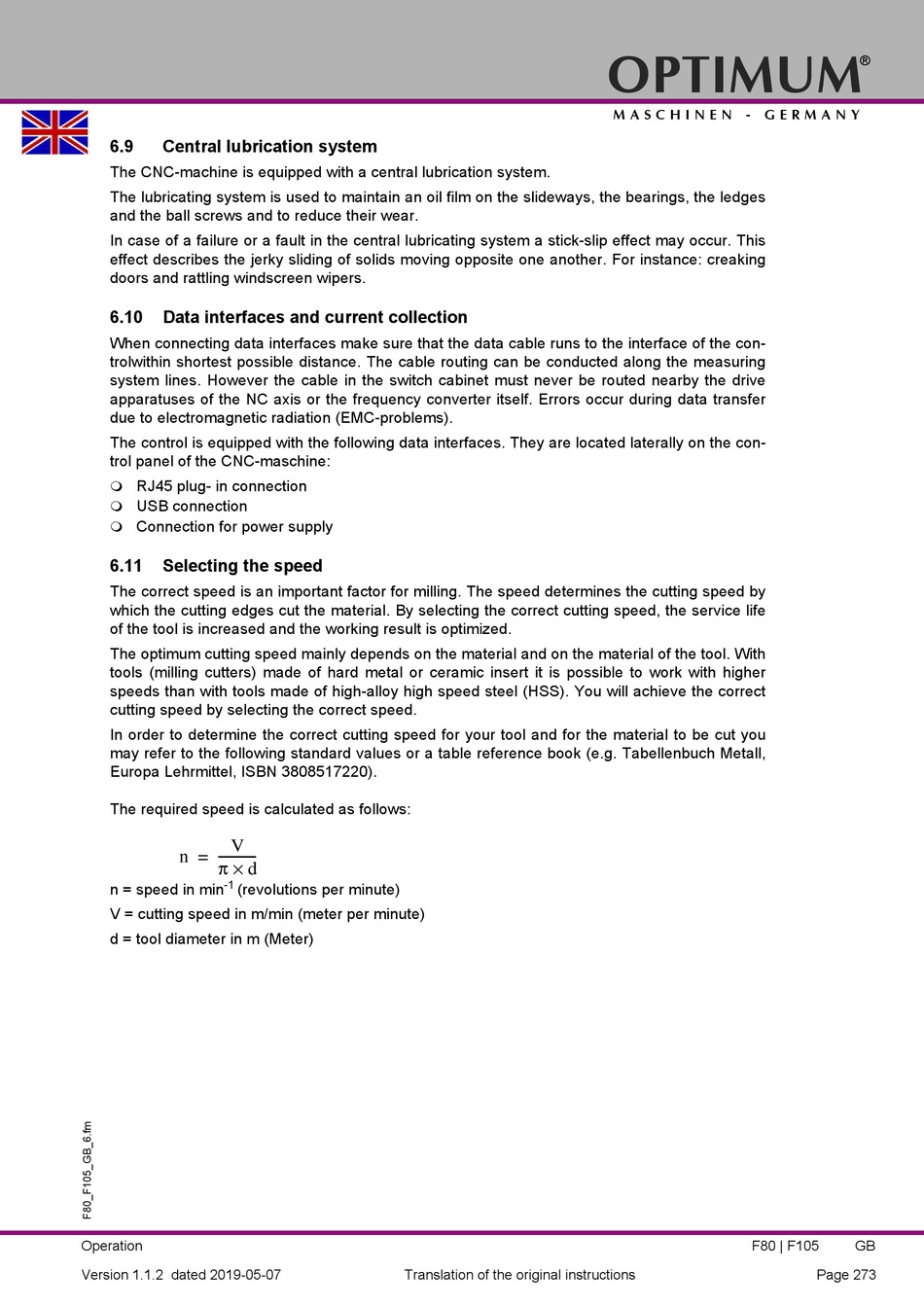

6.9 Central lubrication system
The CNC-machine is equipped with a central lubrication system.
The lubricating system is used to maintain an oil film on the slideways, the bearings, the ledges
and the ball screws and to reduce their wear.
In case of a failure or a fault in the central lubricating system a stick-slip effect may occur. This
effect describes the jerky sliding of solids moving opposite one another. For instance: creaking
doors and rattling windscreen wipers.
6.10 Data interfaces and current collection
When connecting data interfaces make sure that the data cable runs to the interface of the con-
trolwithin shortest possible distance. The cable routing can be conducted along the measuring
system lines. However the cable in the switch cabinet must never be routed nearby the drive
apparatuses of the NC axis or the frequency converter itself. Errors occur during data transfer
due to electromagnetic radiation (EMC-problems).
The control is equipped with the following data interfaces. They are located laterally on the con-
trol panel of the CNC-maschine:
RJ45 plug- in connection

USB connection

Connection for power supply

6.11

Selecting the speed

The correct speed is an important factor for milling. The speed determines the cutting speed by
which the cutting edges cut the material. By selecting the correct cutting speed, the service life
of the tool is increased and the working result is optimized.
The optimum cutting speed mainly depends on the material and on the material of the tool. With
tools (milling cutters) made of hard metal or ceramic insert it is possible to work with higher
speeds than with tools made of high-alloy high speed steel (HSS). You will achieve the correct
cutting speed by selecting the correct speed.
In order to determine the correct cutting speed for your tool and for the material to be cut you
may refer to the following standard values or a table reference book (e.g. Tabellenbuch Metall,
Europa Lehrmittel, ISBN 3808517220).
The required speed is calculated as follows:
V
----------- -
n =
π d ×
-1
n = speed in min (revolutions per minute)
V = cutting speed in m/min (meter per minute)
d = tool diameter in m (Meter)
