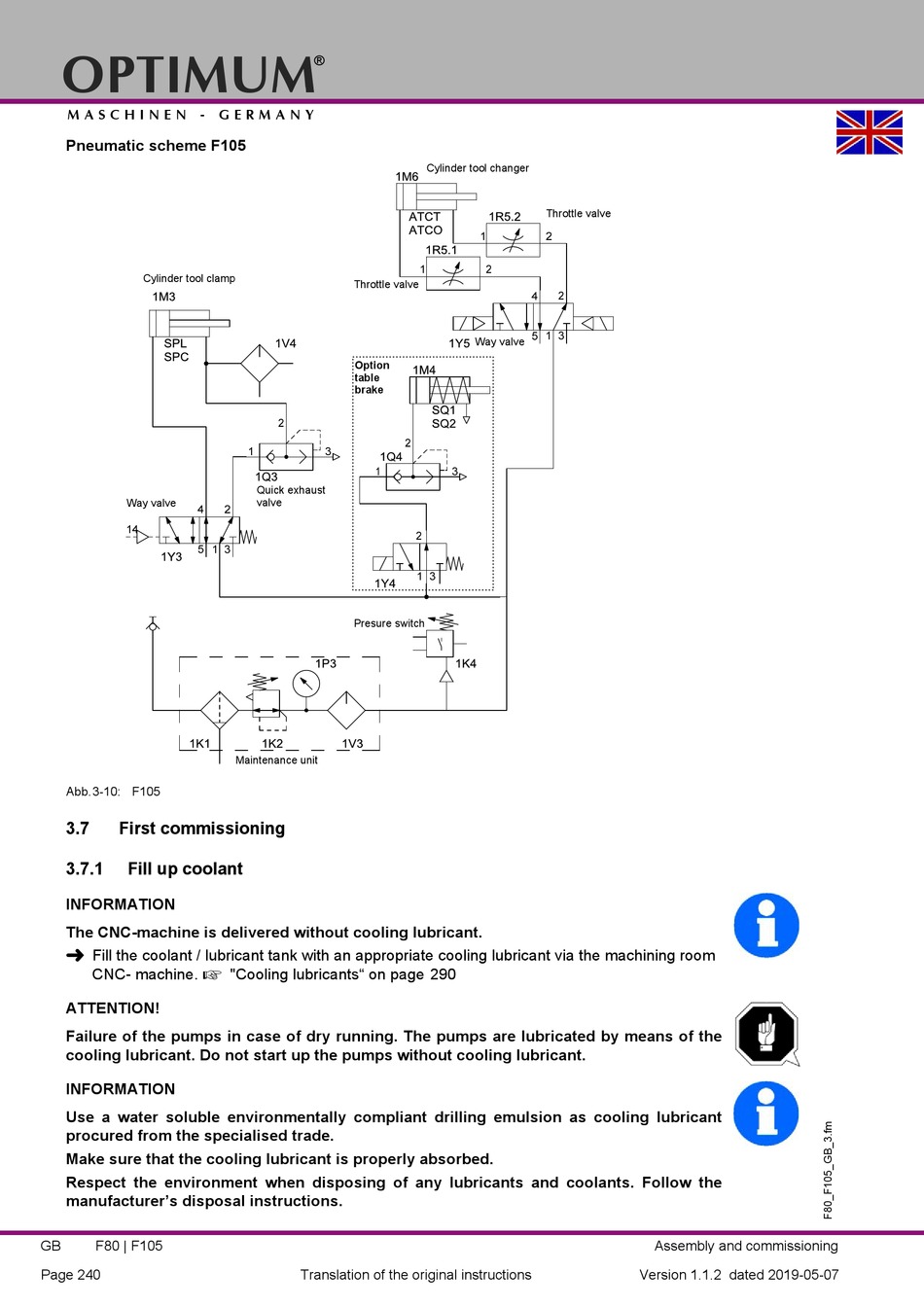

Pneumatic scheme F105
Cylinder tool clamp
Way valve
Abb.3-10: F105
3.7

First commissioning

3.7.1 Fill up coolant
INFORMATION
The CNC-machine is delivered without cooling lubricant.

Fill the coolant / lubricant tank with an appropriate cooling lubricant via the machining room

CNC- machine.
ATTENTION!
Failure of the pumps in case of dry running. The pumps are lubricated by means of the
cooling lubricant. Do not start up the pumps without cooling lubricant.
INFORMATION
Use a water soluble environmentally compliant drilling emulsion as cooling lubricant
procured from the specialised trade.
Make sure that the cooling lubricant is properly absorbed.
Respect the environment when disposing of any lubricants and coolants. Follow the
manufacturer's disposal instructions.
GB F80 | F105
Page 240
®
Throttle valve
Option
table
brake
Quick exhaust
valve
Presure switch
Maintenance unit
"Cooling lubricants" on page 290
