Brief instruction 808D Milling
Basic Theory
Hole
centering

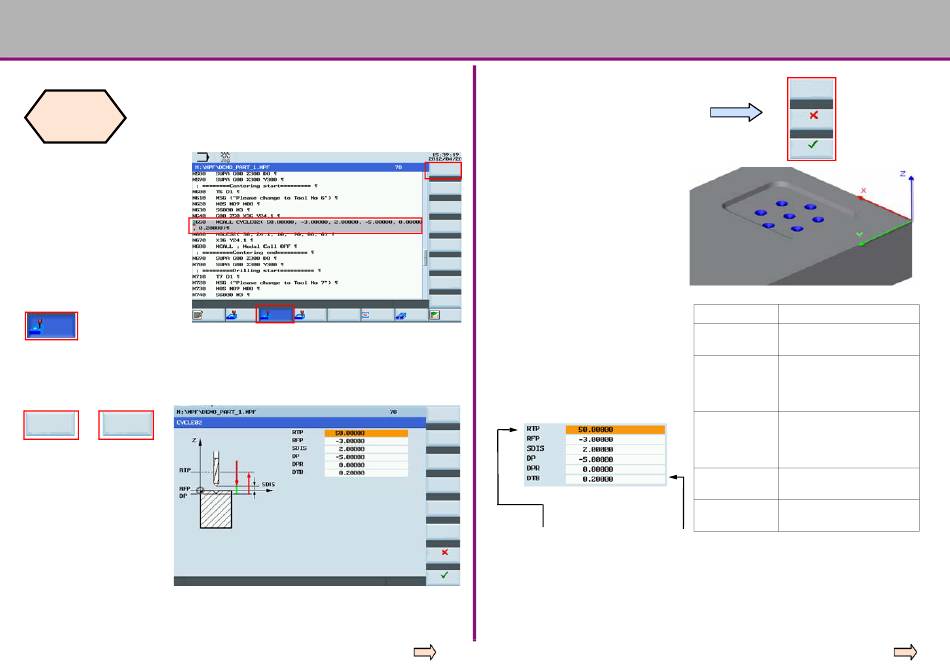

The easiest way to center drill
a hole prior to drilling is to use
either CYCLE81 or CYCLE82
CYCLE81: Without delay at
current hole depth
CYCLE82: With delay at
current hole depth
Drill.
The relevant cycle can now
be found using the vertical
softkey on the right.
Drilling Center
→
centering drilling
Select "Drilling centering"
using the vertical SKs , or
select "Center drilling" ,and
parameterize the cycle
according to requirements.
808D
Create Part Program Part 2
Edit Cont. Mill.
Drill. Active
Retract plane, absolute
With the "OK" SK, the values and cycle
call will be transferred to the part
program as shown below.
This will drill a hole at the current
position.
With the Modal call SK, holes will be
Drilling
centered at subsequent programmed
centering
positions until cancelled with the
Center
drilling
MCALL command in the part program.
Deep hole
drilling
The information is transferred as
Boring
shown below.
Thread
Hole
pattern
Deselect
modal
Re-
Sim.
comp-
Modal
call
N325 MCALL CYCLE82( 50.000, -3.000, 2.000, -5.000, 0.000, 0.200)
Cancel
N330 X20 Y20 ; Hole will be centered
N335 X40 Y40 ; Hole will be centered
OK
N340 MCALL
N345 X60 Y60 ; Hole will not be centered
Page 332
OPTIMUM
M A S C H I N E N - G E R M A N Y
Modal
call
Cancel
OK
actual effect
Parameters Meanings
Coordinate value of turning
RTP=50
position is 50 (absolute)
Coordinate value of hole
edge starting position under
RFP=-3
workpiece zero point surface
is 3 (absolute)
Safety distance, feed path
SDID=2
changes from quick feed to
(frequently used
machine feed 2 mm away
values 2~5)
from RFP face
Coordinate position of final
DP=-5
drilling depth is -5 (absolute)
Delay of 0.2 s at final drilling
DTB=0.2
depth
