Brief instruction 808D Milling
Basic Theory

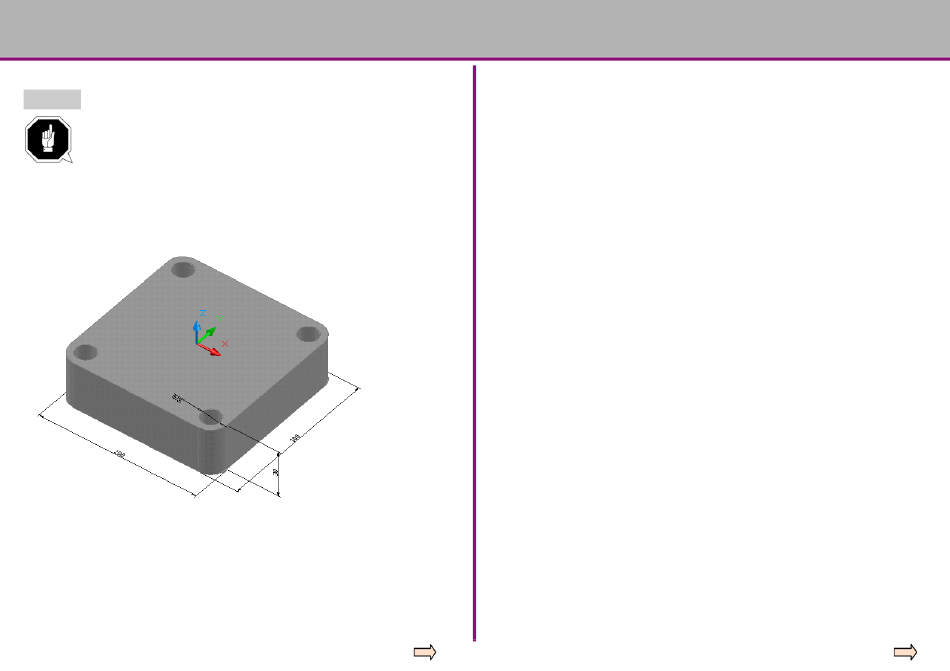

Sample program
Step 5
Make sure the current system is in ISO mode!
Make sure all preparations and safety measures have been performed!
808D
ISO Mode
ISO programs can be executed in the 808D as follows:
N10 G291
N20 T1M6
N30 G0G54G90G40
N40 M3S1200F200
N50 G43H1Z50
N60 G0X0Y-70
N70 Z5M8
N80 G1Z-5
N90 G01G41X20D1
N100 G03X0Y-50R20
N120 G1X-50,R10
N130 Y50,R10
N140 X50,R10
N150 Y-50,R10
N160 X40
N170 X0
N180 G03X-20Y-70R20
N190 G1G40X0
N200 G0Z50
Note: This program opens/exits ISO mode
with the G291/G290 command. It is
recommended to use the first method to
open ISO mode — using the ISO mode
active button on the PPU (described above)
Page 389
OPTIMUM
M A S C H I N E N - G E R M A N Y
N210 T2M6
N220 M3S3000F100
N230 G43H2Z50
N240 G0X40Y-40
N250 Z20
N260 G81Z-2R10
N270 Y40
N290 X-40
N300 Y-40
N310 G80
N320 G0Z50
N330 T3M6
N340 M3S3000F100
N350 G43H3Z50
N360 G73Z-20R10Q5
N370 Y40
N380 Y-40
N390 X40
N400 Y40
N410 G80
N420 G0G40G90G49Z100
N430 M09
N440 G290
N450 M30
Operating and Programming — Milling
