Brief instruction 808D Milling
Basic Theory

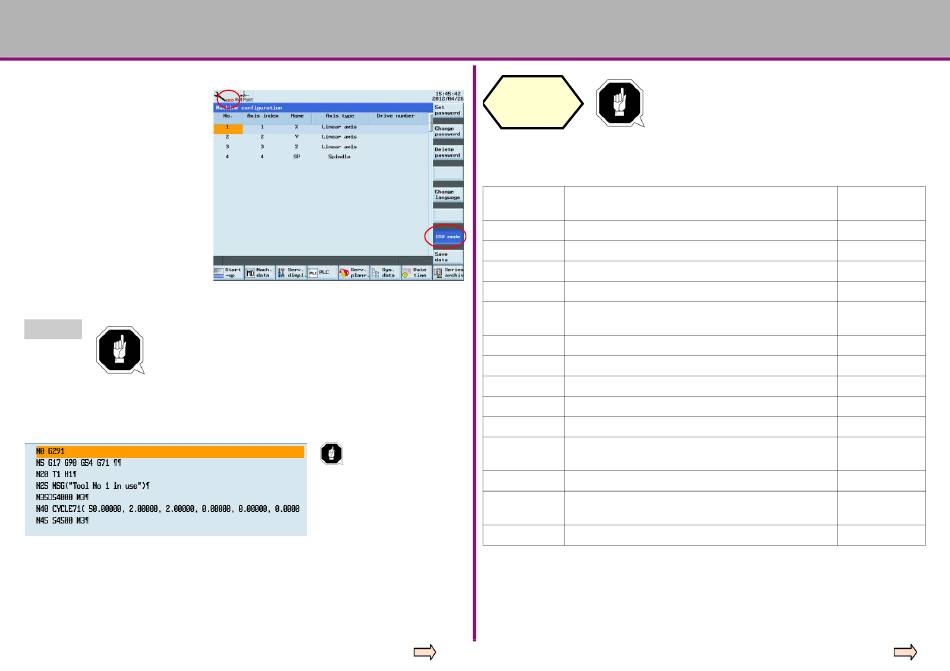

After pressing "OK", the system
restarts automatically.
After restarting, press "Shift" +
"System - Alarm" again and if the
symbol in the red circle appears,
ISO mode is already activated.
A red ISO appears at the top of the screen and the ISO mode button on the right is
highlighted in blue.
Method 2
When using method 2 to activate the ISO mode, it will exit
ISO mode and return to the default DIN mode via "Reset"
button or after finishing the machining program.
Insert G291 in the first line of the ISO part program to be executed and insert G290 in
front of M30.
If ISO is displayed at the top of the screen, it is activated.
808D
ISO Mode
ISO code
explanation
Brief description of typical, frequently used ISO codes
ISO code
G00
G1
G17/G18/G19 XY plane / ZX plane / YZ plane
G20/G21
G41/G42/G40 Left tool tip radius compensation / right tool tip radius
G54 ~ G59
G80
G90/G91
G94/G95
S
， R
G291/G290
commands must
be set separately
M3/M4/M5
in a line!
M98 P _L_
M99
Page 382
OPTIMUM
All the ISO codes described in this unit can be
implemented in the ISO mode of the 808D system!
Description
Orientation (rapid traverse)
Linear difference
Input in inch/mm
compensation / cancel tool radius compensation
Select workpiece coordinate system
Cancel fixed cycle
Absolute/incremental programming
Feedrate F in mm/min / mm/r
Spindle speed
Reverse circle (note the form there must be "， "
before R parameter)
Spindle right / spindle left / spindle stop
Subprogram call (P+ subprogram name/ L+ times)
End of Subroutine
Operating and Programming — Milling
M A S C H I N E N - G E R M A N Y
Compare with
DIN
As DIN
As DIN
As DIN
G70/G71
As DIN
As DIN
As DIN
As DIN
RND
As DIN
Program name
+ L
M17
