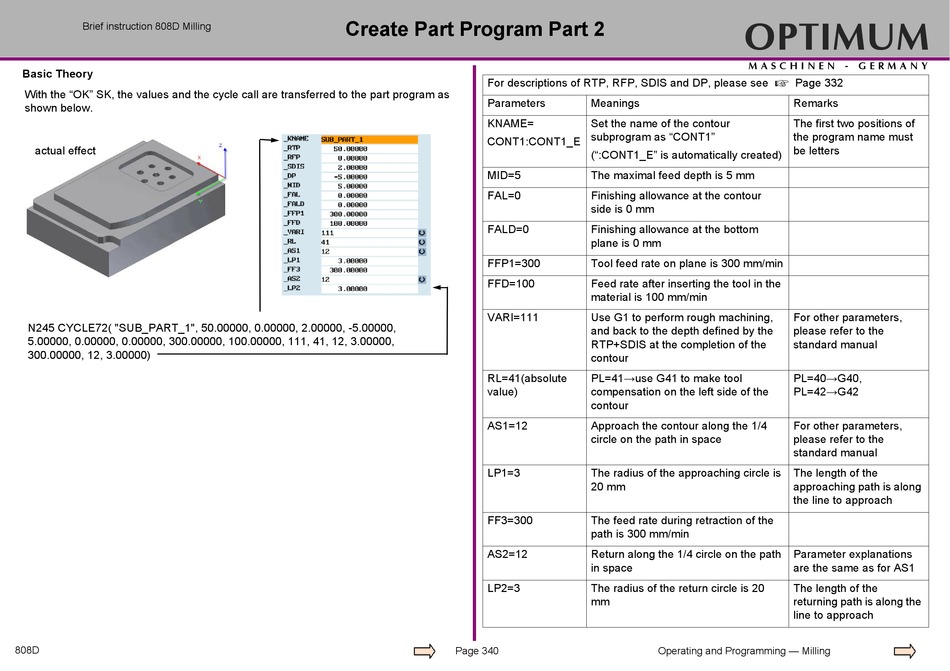

Brief instruction 808D Milling
Basic Theory
With the "OK" SK, the values and the cycle call are transferred to the part program as
shown below.
actual effect
N245 CYCLE72( "SUB_PART_1", 50.00000, 0.00000, 2.00000, -5.00000,
5.00000, 0.00000, 0.00000, 300.00000, 100.00000, 111, 41, 12, 3.00000,
300.00000, 12, 3.00000)
808D
Create Part Program Part 2
For descriptions of RTP, RFP, SDIS and DP, please see
Parameters
KNAME=
CONT1:CONT1_E
MID=5
FAL=0
FALD=0
FFP1=300
FFD=100
VARI=111
RL=41(absolute
value)
AS1=12
LP1=3
FF3=300
AS2=12
LP2=3
Page 340
OPTIMUM
M A S C H I N E N - G E R M A N Y
Meanings
Set the name of the contour
subprogram as "CONT1"
(":CONT1_E" is automatically created)
The maximal feed depth is 5 mm
Finishing allowance at the contour
side is 0 mm
Finishing allowance at the bottom
plane is 0 mm
Tool feed rate on plane is 300 mm/min
Feed rate after inserting the tool in the
material is 100 mm/min
Use G1 to perform rough machining,
and back to the depth defined by the
RTP+SDIS at the completion of the
contour
PL=41→use G41 to make tool
compensation on the left side of the
contour
Approach the contour along the 1/4
circle on the path in space
The radius of the approaching circle is
20 mm
The feed rate during retraction of the
path is 300 mm/min
Return along the 1/4 circle on the path
in space
The radius of the return circle is 20
mm
Operating and Programming — Milling

Page 332
Remarks
The first two positions of
the program name must
be letters
For other parameters,
please refer to the
standard manual
PL=40→G40,
PL=42→G42
For other parameters,
please refer to the
standard manual
The length of the
approaching path is along
the line to approach
Parameter explanations
are the same as for AS1
The length of the
returning path is along the
line to approach
