10. INSTALLATION OF PUMPS

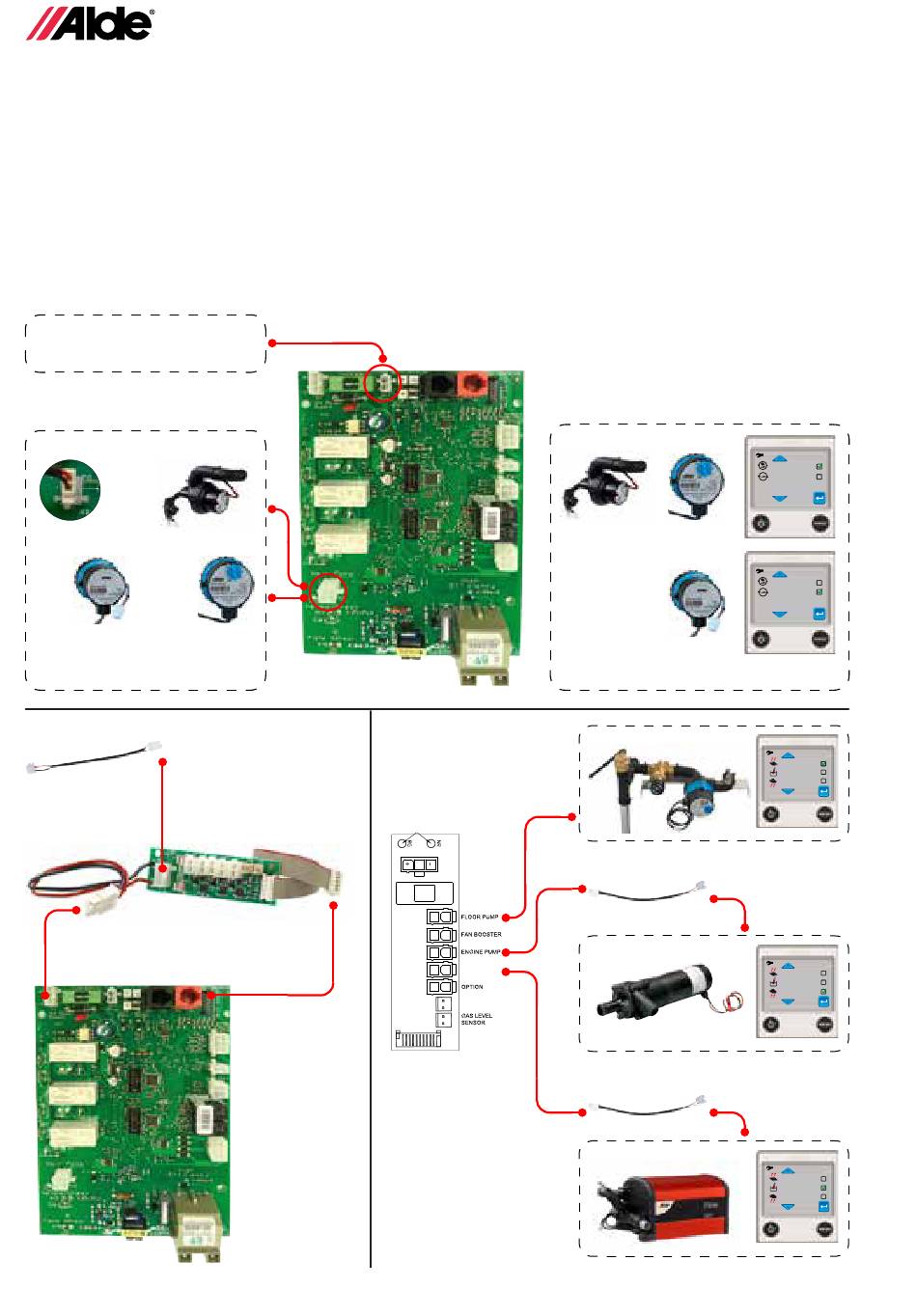

THERE ARE THREE TYPES OF CIRCULATION PUMPS:
• 12 V pump, the pump's capacity is continuously adjustable using a knob on the rear of the pump (1-5); normal
mode is 2, which works in most cases. Mounted on the boiler.
• PWM controlled 12 V pump, this is a speed controlled pump that can be set to one of five different modes
(Level 1-5) via the panel; normal mode is 2, which works in most cases.
Mounted on the boiler.
• Optional 12 V pump, usually placed in the expansion tank. Not speed controlled.
Check the right box in the Installed Accessories menu to select the different types of circulation pump, see below.
Fore more information about Installed Accessories, see section "11. Activation of installed functions"
Optional 12 V cirkulation pump
Pumps installed in the boiler
Note! It is important to
Art. no. 3010 507
have the right position.
Art. no. 3020 031 Art. no. 3020 049
Connection cable (12 V) Art. no. 3010 201
Option card Art. no. 3020 023
20
48
Pumps installed in the boiler
Underfloor heating pump
12 V DC
Connection cable Art. no. 3010 209
FUSE 3,15 A
Circulation pump for engine
heating
ALDE FLOW
EIS EX
HEATER
MAINBOARD
Connection cable Art. no. 3010 209
Circulation pump for Alde Flow
