5:5 FITTING A WALL FLUE
DANGER
CARBON MONOXIDE POISONING
FARA
This heating system can produce dangerous carbon
monoxide (CO) gas when using the LPG operation if it
DANGER
is not installed and used properly.
GEFAHR
FARE
• The boiler must be mounted together with the Alde original wall flue, never mount the wall flue to floor or roof. The
flue must not be blocked. In choosing the location, bear in mind that there must always be adequate ventilation of
VAARA
exhaust gases into the open air.
PELIGRO
PERICOLO
Wall
GEVAAR
• The wall flue should be mounted on as flat a surface as possible, allowing air to circulate freely past the flue.
• There must be a minimum lateral distance of 200 mm from any projecting item.
• There must be a minimum lateral distance of 300 mm from a window that can be opened or a ventilation air intake.
The flue must not be mounted under a window that can be opened or a ventilation air intake; see drawing below.
> 200 mm
If the flue is to be fitted closer than the dimensions above, a window switch (Part. no. 3010 280) must be fitted that
stops LPG operation when the window is open. To ensure the boiler works as intended, no item should be fitted within
a radius of 300 mm around the flue (not a legal requirement). National regulations must always be followed.
• The distance from the flue to a ventilation air intake under the vehicle should be at least 300 mm.
• The distance from the flue to a filling point or ventilation for fuel must be at least 500 mm.
• Mark up where the flue is to be located. Then drill a Ø 83 mm hole through the outer wall. First, fit the gasket
(Figure D 7), and then screw the flue (Figure D 8) securely in place with the six self-tapping screws (Figure D 9).
If the surface is of contoured type, such as hammered sheet metal, an automotive body sealant must be used
around the gasket. Note that the flue must be fitted with the elbow pointing upwards, the flue is also marked
TOP OBEN. Then, fit the plastic cap (Figure D 10a) and the O-ring (Figure D 10b), using the two enclosed screws
(Illustrated D 11)

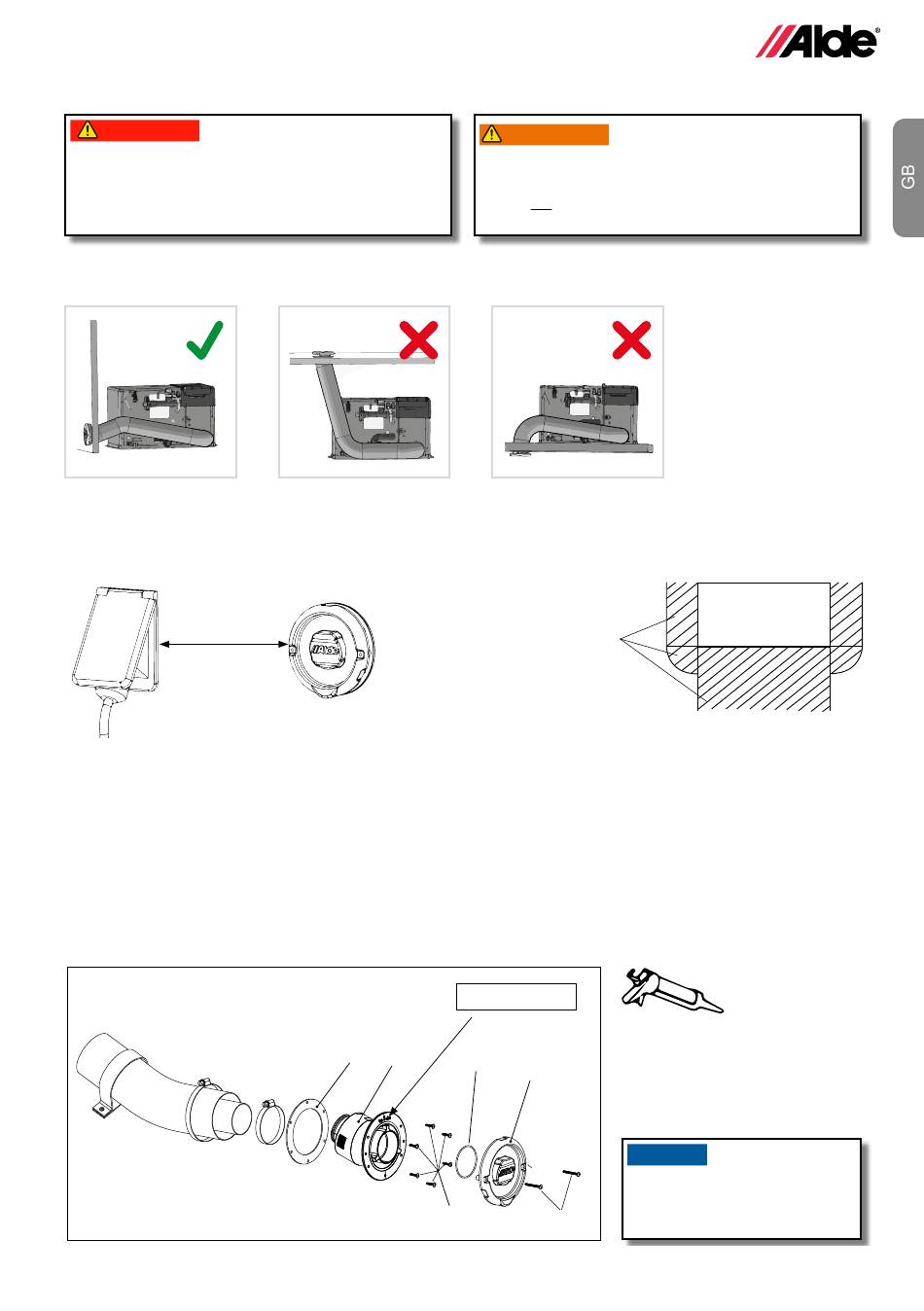

Figure D
The exhaust temperatures from the LPG burner can be
up to 200 °C.
–
close to the flue.
Roof
Prohibited zone
TOP OBEN
7
8
10b
9
WARNING
FIRE/EXPLOSION HAZARD
VARNING
AVERTISSEMENT
Do not place combustible materials and liquids
WARNUNG
ADVARSEL
VAROITUS
ADVERTENCIA
AVVERTENZA
WAARSCHUWING
Floor
NOTE! If the surface is of
contoured type, such as
hammered sheet metal, an
10a
automotive body sealant
must be used around the
gasket (D.7).
NOTICE
The flue must be mounted with
the bend upward (the wall flue is
11
also marked TOP/OBEN).
Window
9
