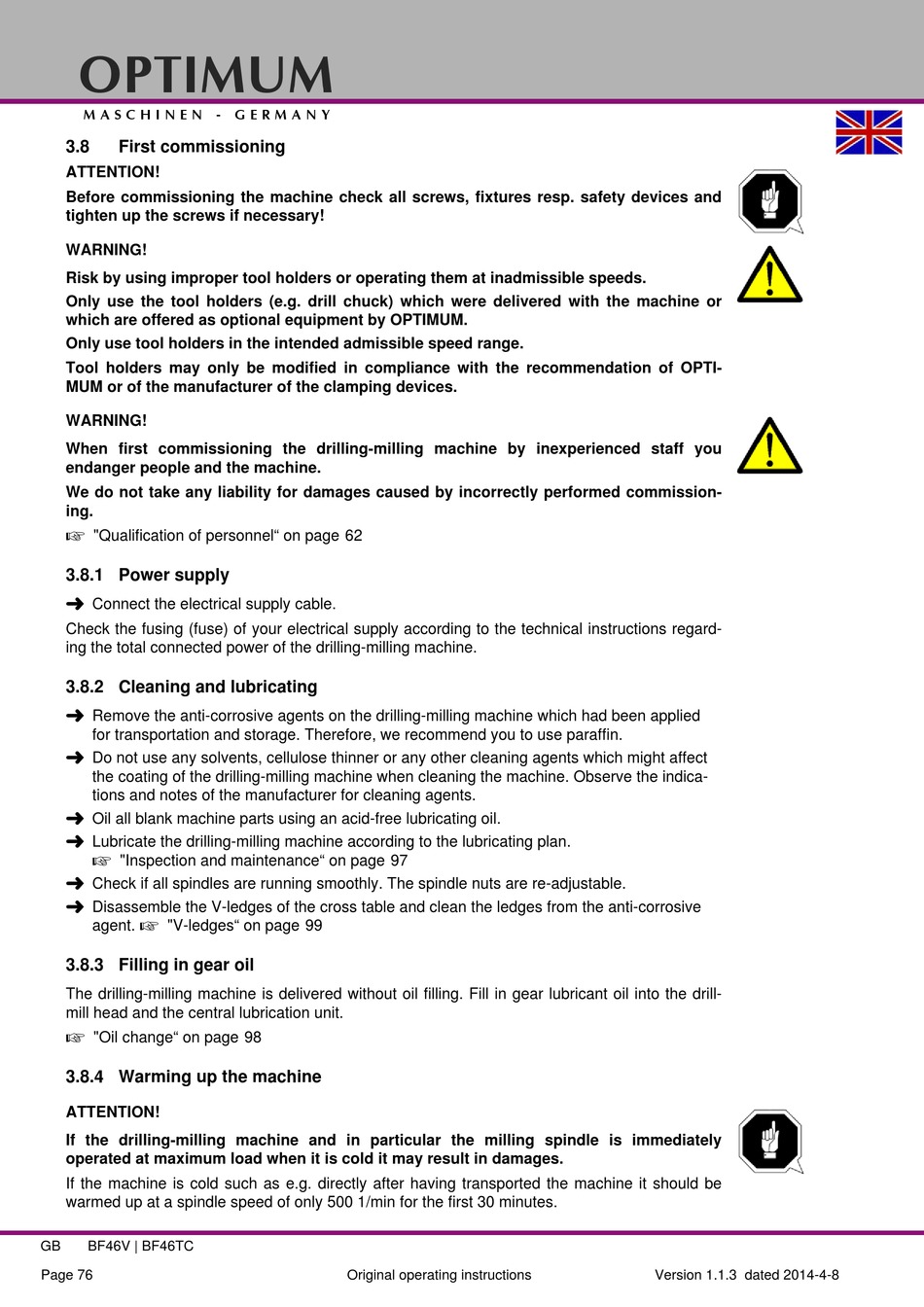

3.8

First commissioning

ATTENTION!
Before commissioning the machine check all screws, fixtures resp. safety devices and
tighten up the screws if necessary!
WARNING!
Risk by using improper tool holders or operating them at inadmissible speeds.
Only use the tool holders (e.g. drill chuck) which were delivered with the machine or
which are offered as optional equipment by OPTIMUM.
Only use tool holders in the intended admissible speed range.
Tool holders may only be modified in compliance with the recommendation of OPTI-
MUM or of the manufacturer of the clamping devices.
WARNING!
When first commissioning the drilling-milling machine by inexperienced staff you
endanger people and the machine.
We do not take any liability for damages caused by incorrectly performed commission-
ing.

"Qualification of personnel" on page 62

3.8.1 Power supply


Connect the electrical supply cable.
Check the fusing (fuse) of your electrical supply according to the technical instructions regard-
ing the total connected power of the drilling-milling machine.

3.8.2 Cleaning and lubricating


Remove the anti-corrosive agents on the drilling-milling machine which had been applied
for transportation and storage. Therefore, we recommend you to use paraffin.

Do not use any solvents, cellulose thinner or any other cleaning agents which might affect
the coating of the drilling-milling machine when cleaning the machine. Observe the indica-
tions and notes of the manufacturer for cleaning agents.

Oil all blank machine parts using an acid-free lubricating oil.

Lubricate the drilling-milling machine according to the lubricating plan.

"Inspection and maintenance" on page 97

Check if all spindles are running smoothly. The spindle nuts are re-adjustable.

Disassemble the V-ledges of the cross table and clean the ledges from the anti-corrosive

agent. "V-ledges" on page 99

3.8.3 Filling in gear oil

The drilling-milling machine is delivered without oil filling. Fill in gear lubricant oil into the drill-
mill head and the central lubrication unit.

"Oil change" on page 98

3.8.4 Warming up the machine

ATTENTION!
If the drilling-milling machine and in particular the milling spindle is immediately
operated at maximum load when it is cold it may result in damages.
If the machine is cold such as e.g. directly after having transported the machine it should be
warmed up at a spindle speed of only 500 1/min for the first 30 minutes.
