SRC CLEAR
LEVEL DEST

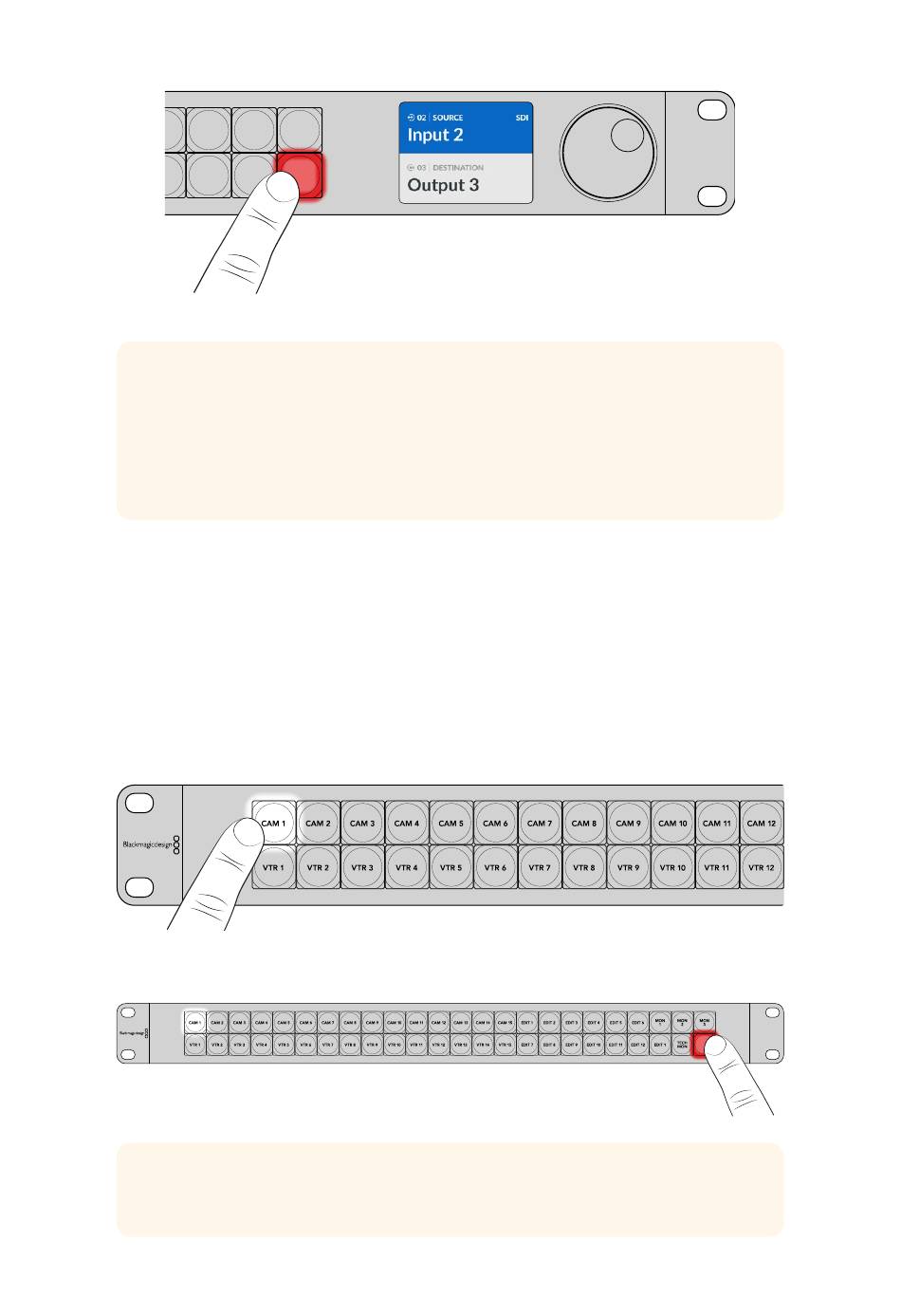

5 Press 'take' to confirm your route.
TIP If you have labeled the ports on your Videohub, the labels will be automatically
displayed on Videohub Master Control Pro's LCD display when you scroll through the
list of sources and destinations. If you haven't labeled the ports on your Videohub,
you can switch a route using input and output numbers. For more information on
the different ways to switch routes, refer to the 'Using Videohub Master Control Pro'
section later in this manual.
Videohub Smart Control Pro
Videohub Smart Control Pro can be configured as a cut bus or XY controller. The steps below
describe switching a route in cut bus mode where the destination has already been chosen and
you only need to select a video source. For information on switch routes in XY mode, refer to
the 'Using Videohub Smart Control Pro' of this manual.
To switch a route:
1 Select a white video source button. The button will light up to distinguish it from the other
sources. The video source will immediately connect and be viewable on the destination
equipment.
2 If the 'take' button has been enabled, the new source button and the 'take' button will flash.
The route change will only take place when you confirm by pressing the 'take' button.
TIP You can enable the 'take' button in the Videohub Setup utility, for more information
refer to the 'Blackmagic Videohub Setup' section.
TAKE
Videohub Routing using SDI 9
