If your Videohub Master Control Pro is set up as a Videohub controller, it's a good idea to
standardize the port labels on your Videohub router before labeling the buttons on your
Videohub Master Control Pro.
To label a button:

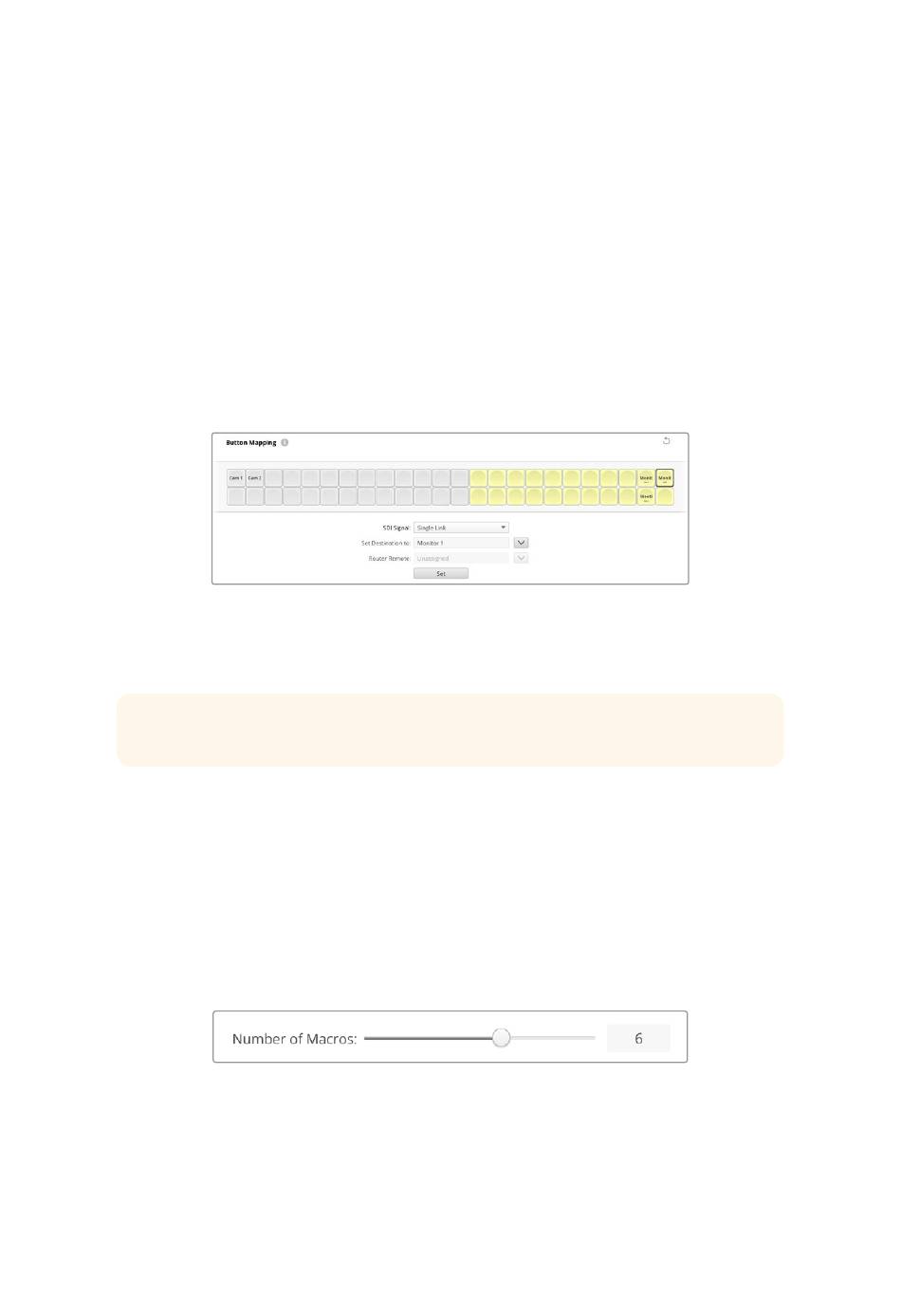

1 In the 'button mapping' panel, select a button to label by clicking on the image of the front
panel. A 'button label' field will appear.
2
Click in the 'button label' field.
If you are labeling buttons for Videohub control, enter a label that partially matches
the labels of SDI and deck control ports that you have previously entered for your
Videohub router.
If you are labeling buttons for NMOS control, enter a label that partially matches the name
of a group of 2110 IP video devices on your network.
Click the 'set' button.
As you label buttons, the label will be displayed in the 'button mapping' palette
3 Continue to label more buttons as desired. You can immediately test the buttons as you go
and verify the names are valid.
TIP
Button labels on your Videohub Master Control Pro are case sensitive.
Once you've labeled the buttons on your Videohub Master Control Pro, it's a good idea to label
the physical buttons on the front panel. For instructions on labeling the physical buttons, refer
to the 'labeling pushbuttons' section later in this manual.
Creating Macros
The control panel tab also lets you create macro buttons and assign their functions.
Click and drag the 'number of macros' slider to the right to add macro buttons and drag left to
remove them. As you add macro buttons you will see the buttons in the 'button mapping' panel
illuminate green.
To assign a macro to a macro button:
1 Click on a green macro button in the 'button mapping' panel. You will see a menu appear
underneath with rows from A to P. Each row represents a routing action.
2 In the 'A' row's 'source' menu, select the input source and then select the
destination output.
3 Click 'set'.
The macro is now assigned to a macro button.
