Loading and Saving Settings
You can apply settings from an already configured Videohub hardware control panel to other
panels. This is useful if you want to set up several units the same way, or keep a back up of
your settings.

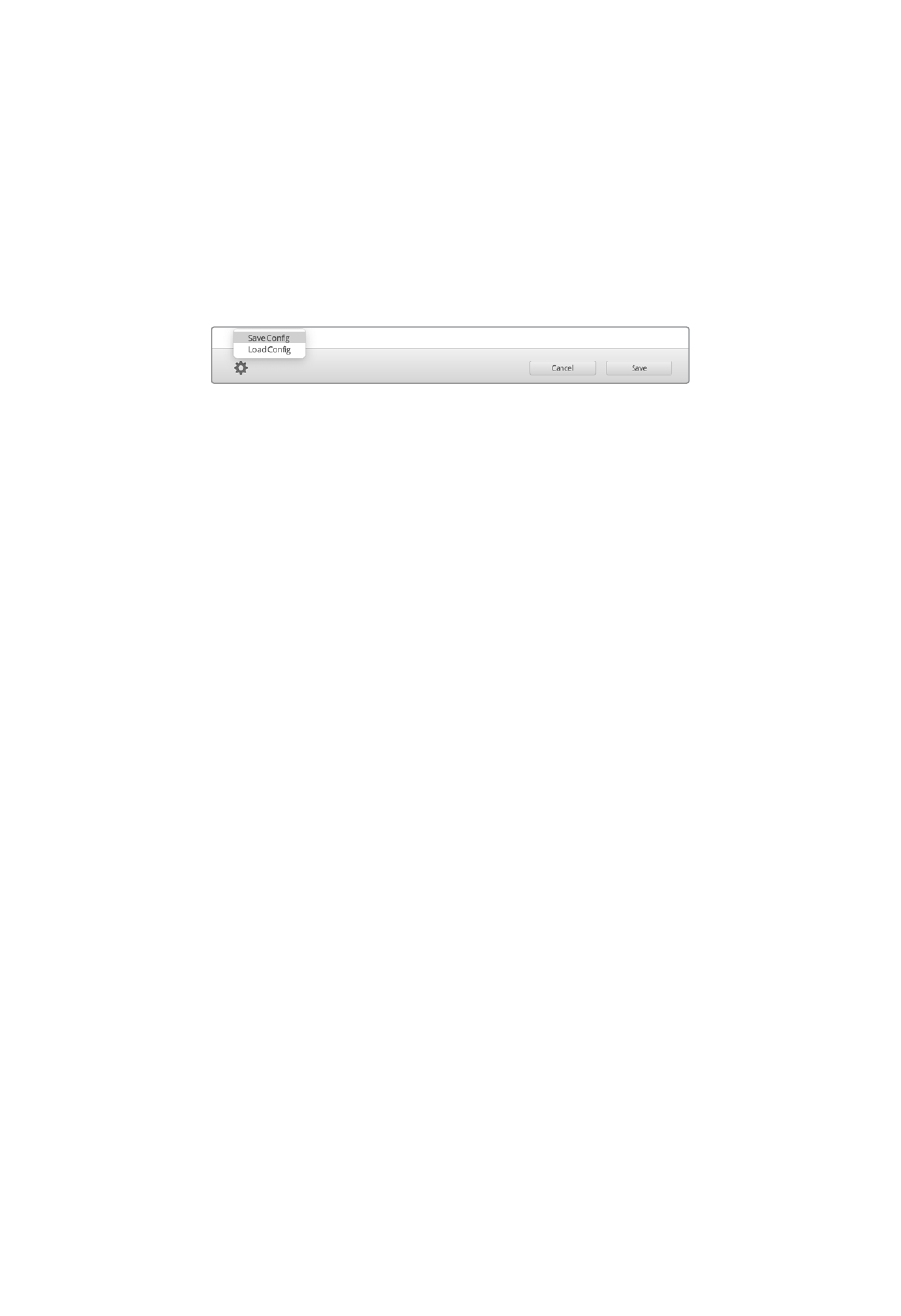

Once you have set up your Videohub control panel's settings, click the gear icon in the bottom
left corner of the 'setup' window and select 'save config'. Select a location to save the file and
click 'save'.
To load settings, click the gear icon and click 'load config'. Navigate to the location of the saved
file and click 'open' to import the settings.
After loading pre configured settings on another control panel, you only need to update
network settings, including the control panel name.
Updating the Internal Software
Occasionally, the internal software in your Videohub Master Control Pro or Videohub Smart
Control Pro will need to be updated. Updates to internal software can provide new features and
compatibility with new hardware.
Please follow these steps to update the internal software:
1 Connect your computer to the unit's USB connector.
2 Launch Blackmagic Videohub Setup and it will automatically display any Videohub
hardware controls units that are connected to your network.
3 Select your hardware controller by clicking on either the picture or the configuration icon.
4 The utility will inform you if an update is required.
5
If an update is required, click the 'update' button and allow the software to install. Make
sure not to unplug your Videohub hardware control panel while the update is in progress.
6 Click the 'close' button when the update is finished.
Blackmagic Videohub Setup 22
