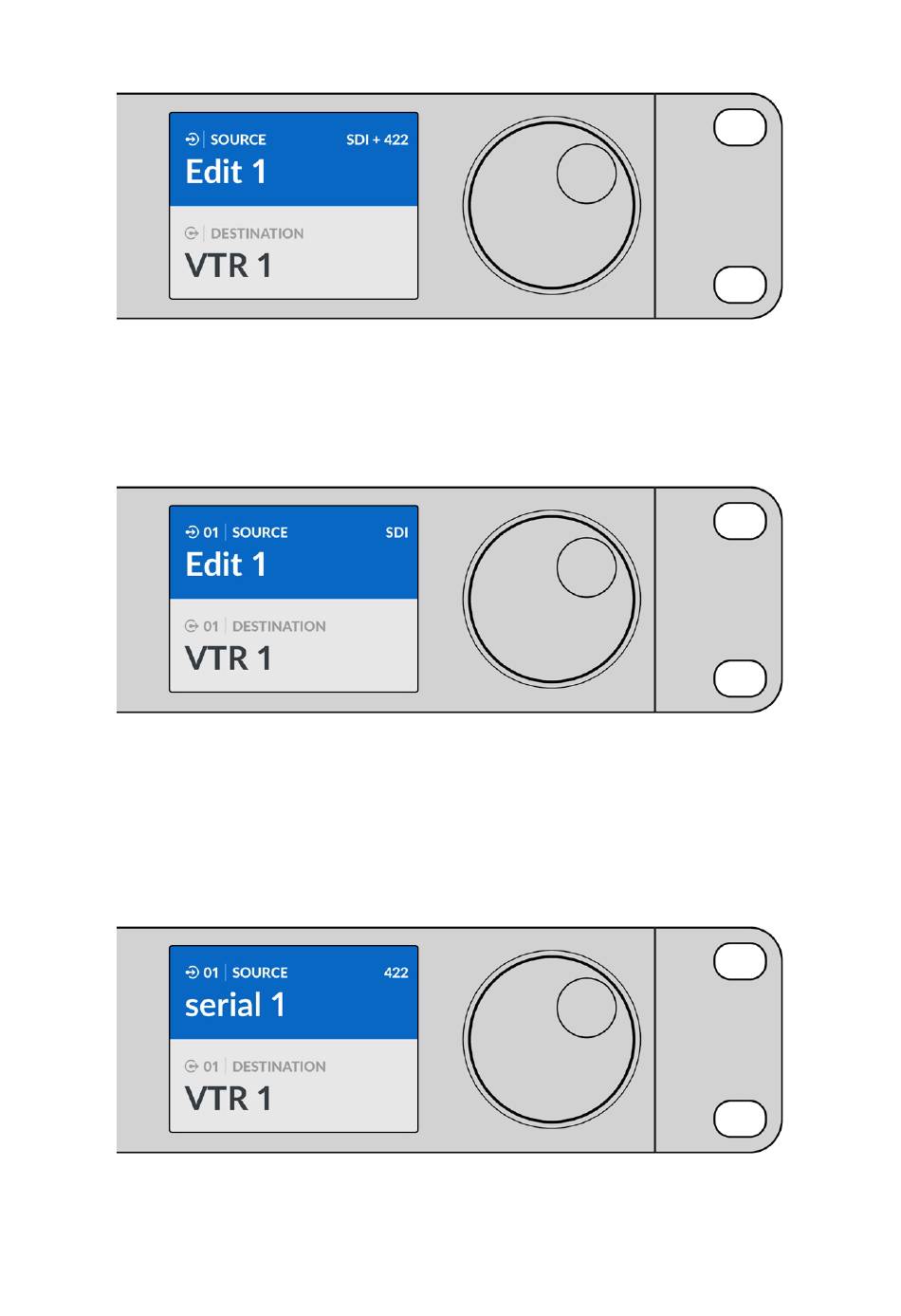

Choose the SDI 422 routing level if you only want to see SDI video equipment with RS-422 deck control. In this
example, the capture card named 'edit 1' and deck named 'VTR 1' are listed because they both have SDI and
RS-422 ports.
SDI
Lists all SDI sources and destinations. Choose this routing level if you want to see all SDI video
equipment, i.e., cameras, monitors, capture cards and VTR decks, regardless of RS-422 connections.
Choose the SDI routing level if you want to see all SDI video equipment. In this example, the
capture card named 'edit 1' and deck named 'VTR 1' are listed because they both have SDI ports.
422
Choose this routing level if you want to reduce the list to all video equipment with RS-422 deck
control. This will list sources and destinations by the names of their RS-422 remote ports, regardless
of whether there are any associated SDI ports and if they have matching labels or not. This level
is commonly used with SDI capture cards and VTR decks but also lists remote control panels and
servers used to control decks.
Choose the 422 routing level if you want to see all equipment with RS-422 remote deck control, including
equipment with mismatched labels and also remote controllers. In this example, the capture card named 'edit 1'
has a mismatched label for its remote port named 'serial 1' and is only listed when the routing level is set to 422.
Using Videohub Master Control Pro 29
