Getting Started
Your Videohub hardware control panel can be used to control SDI Videohub routers, or as an
NMOS controller for routing ST 2110 IP video. For example:
SDI Videohub Control - Your Videohub hardware control panel can connect to any Videohub
on the same Ethernet network and switch SDI routes remotely.
2110 IP Video Routing - Your Videohub hardware control panel can be used as an NMOS
controller, giving you the ability to route 2110 streams connected to the same Ethernet network.
Getting started with Videohub Master Control Pro is as simple as plugging in power, connecting
to a network and selecting the Videohub you want to control. Videohub Smart Control Pro
requires a little extra button configuration before you can start using the panel.
Plugging in Power
Your Videohub hardware control panel can be powered by AC power or via PoE+ if your
network switch supports Power over Ethernet.

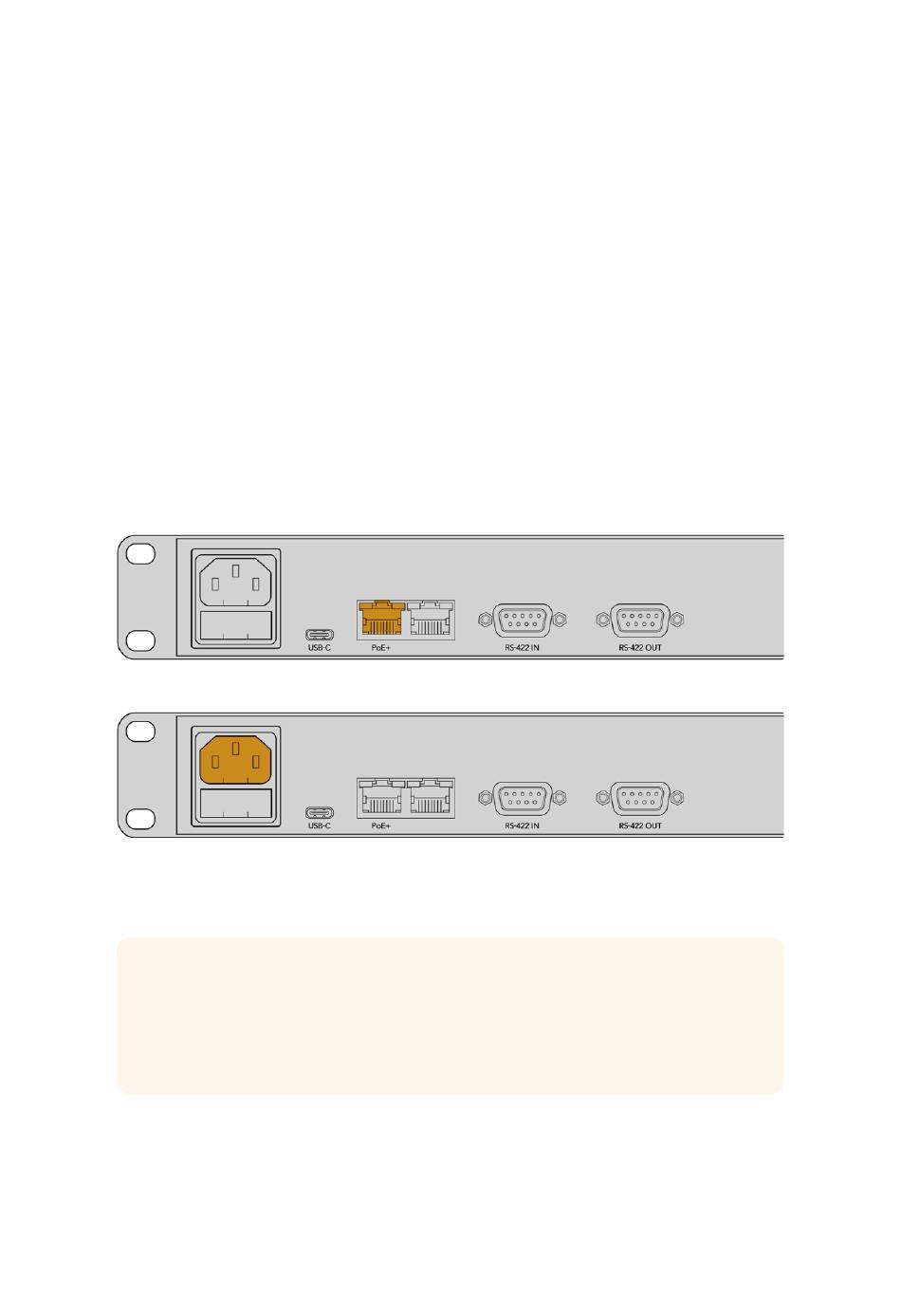

To power your Videohub hardware control panel via PoE+, connect to your network switch by
connecting an Ethernet cable to the PoE+ port on the rear panel.
If your Ethernet switch doesn't support PoE+, simply use an AC power cable to supply power.
To confirm that your Videohub hardware control panel is powered, all the buttons on the front
panel will flash in a red, green, blue and white sequence. When this sequence is complete, the
top left button will flash to indicate your panel's network connection status.
TIP The second Ethernet port on your Videohub Master Control Pro or Videohub
Smart Control Pro can be used as a loop through to connect to additional network
equipment, such as another Videohub hardware control panel. This port does not
provide power over Ethernet, so any equipment connected to this port will require its
own power supply.
Getting Started 5
