Videohub Smart Control Pro
Videohub Smart Control Pro can be configured as a cut bus or XY controller. The steps below
describe switching a route in cut bus mode where the destination has already been chosen and
you only need to select a source. For information on switching routes in XY mode, refer to the
'Using Videohub Smart Control Pro' of this manual.
To switch a route:

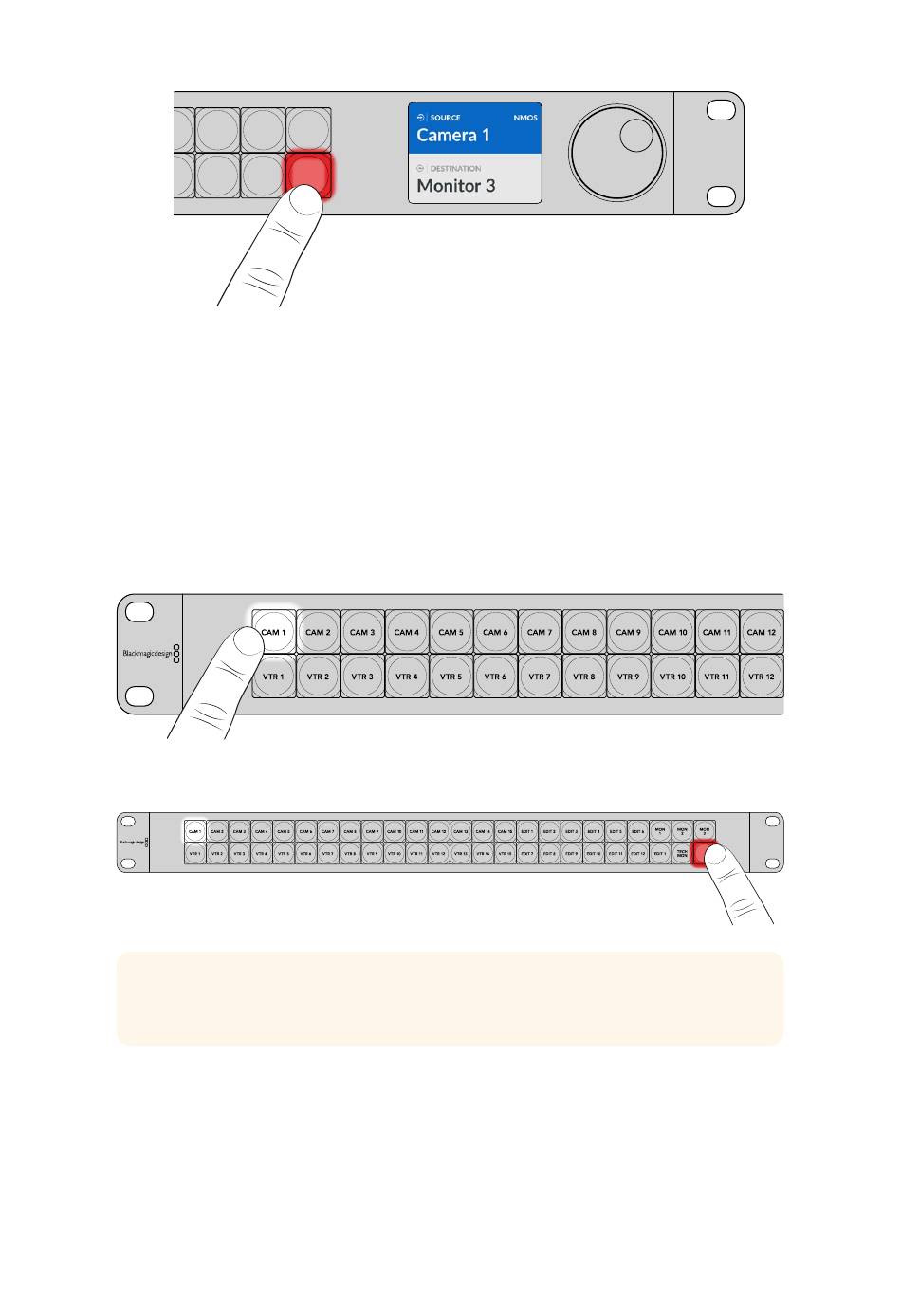

1 Select a white source button. The button will light up to distinguish it from the other sources.
The source will immediately connect and be viewable on the destination equipment.
2 If the 'take' button has been enabled, the new source button and the 'take' button will flash.
The route change will only take place when you confirm by pressing the 'take' button.
TIP You can enable the 'take' button in the Videohub Setup utility, for more information
refer to the 'Blackmagic Videohub Setup' section.
CLEAR
TAKE
