XY Controller Configuration
1 Drag the 'number of destinations' slider to the desired number.
2 You can now configure the destination buttons by clicking on each gold button in the
software interface. In the 'router SDI out A' field, enter the number of the Videohub output
port to which the destination equipment is connected. If your destination is receiving dual
or quad link SDI, you will also need to enter an output port number into the router SDI out B,
C and D fields. There is also a 'router remote' field if your Videohub is also routing RS-422
deck control to the destination equipment.
3 Click 'ok' to confirm. If you increase the number of destination buttons, there will be a
matching decrease in the number of available source buttons.
4 Click on each white button in the software interface to configure the source buttons.
5 In the 'router SDI In A' field, enter the number of the Videohub input port to which the
source is connected. If your destination equipment is receiving dual or quad link SDI, you
will also need to enter an input port number into the router SDI out B, C and D fields where
required. There is also a 'router remote' field if your Videohub is also routing RS-422 deck
control from the source equipment.
6 Click 'ok' to confirm.
Number of Macros
Macros allow you to make up to 16 crosspoint routing changes simultaneously with a single
button press.
1 Drag the 'number of macros' slider to enable up to 10 macro buttons. As you increase the
number of macro buttons, there will be a matching decrease in the number of available
source buttons.
2
Click a green macro button to reveal the corresponding Macro window and enter up to 16
pairs of sources and destinations.
3 When finished, click 'ok' to save the routes and close the window.

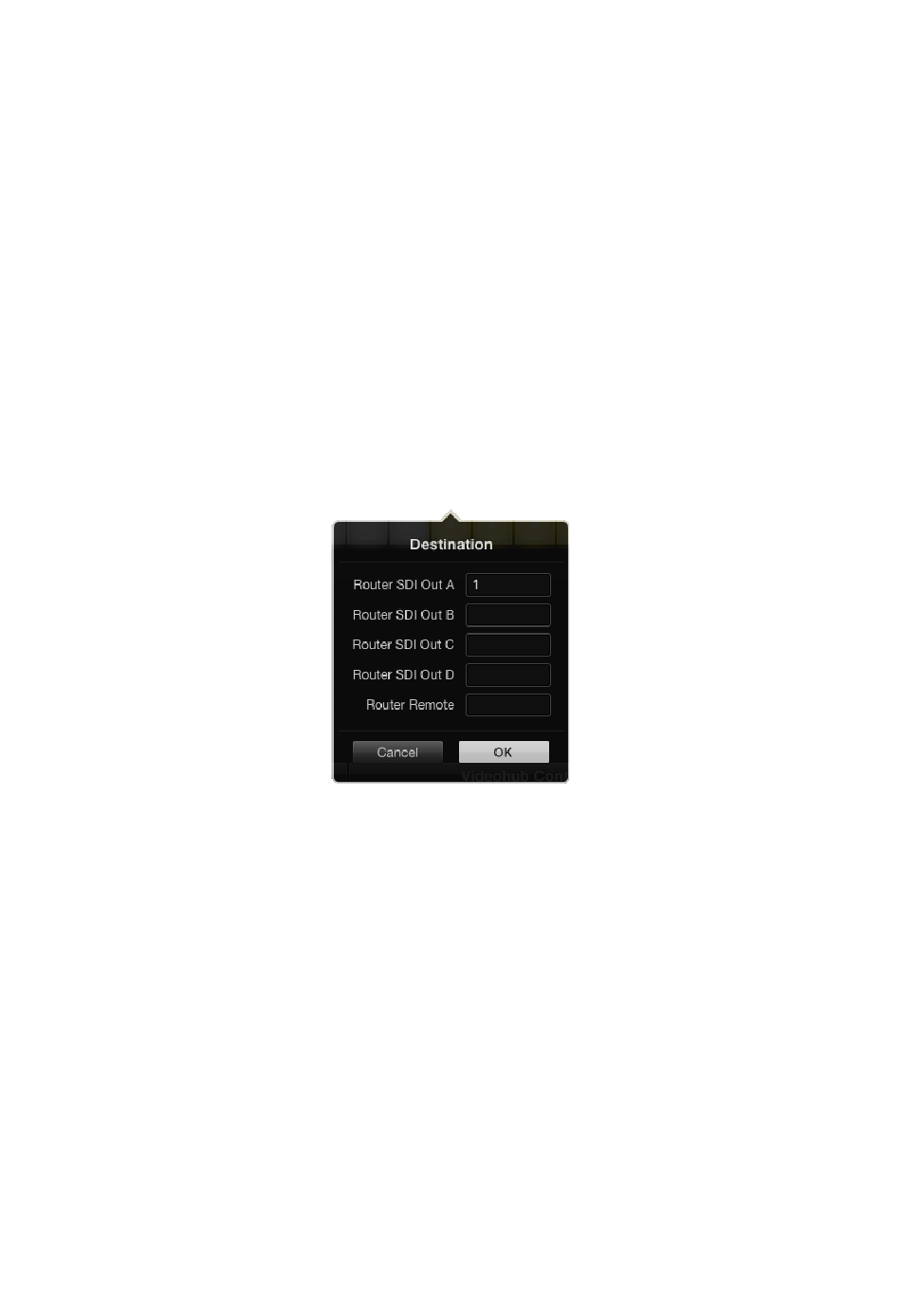

Click on the desired Destination button to
configure it
