Locking and Unlocking Routes
When your Videohub Master Control Pro is configured as a Videohub controller, you can lock
and unlock routes from the front panel.
To lock a destination using Videohub Master Control Pro:
1 Set the destination and source using whichever method you prefer. Once the route has
been set, Videohub Master Control Pro will return to its idle state.
2 Press the destination button marked 'DEST'. The destination field will highlight blue
on the LCD.
3 If the desired route is not already displayed on the LCD, use the pushbuttons and or spin
knob to find the destination to be locked.
4 Press and hold the gold DEST button until a lock icon appears in the destination field
of the LCD.
5 Press 'DEST' again to return Videohub Master Control Pro to its idle state and the
destination field will revert to gray.

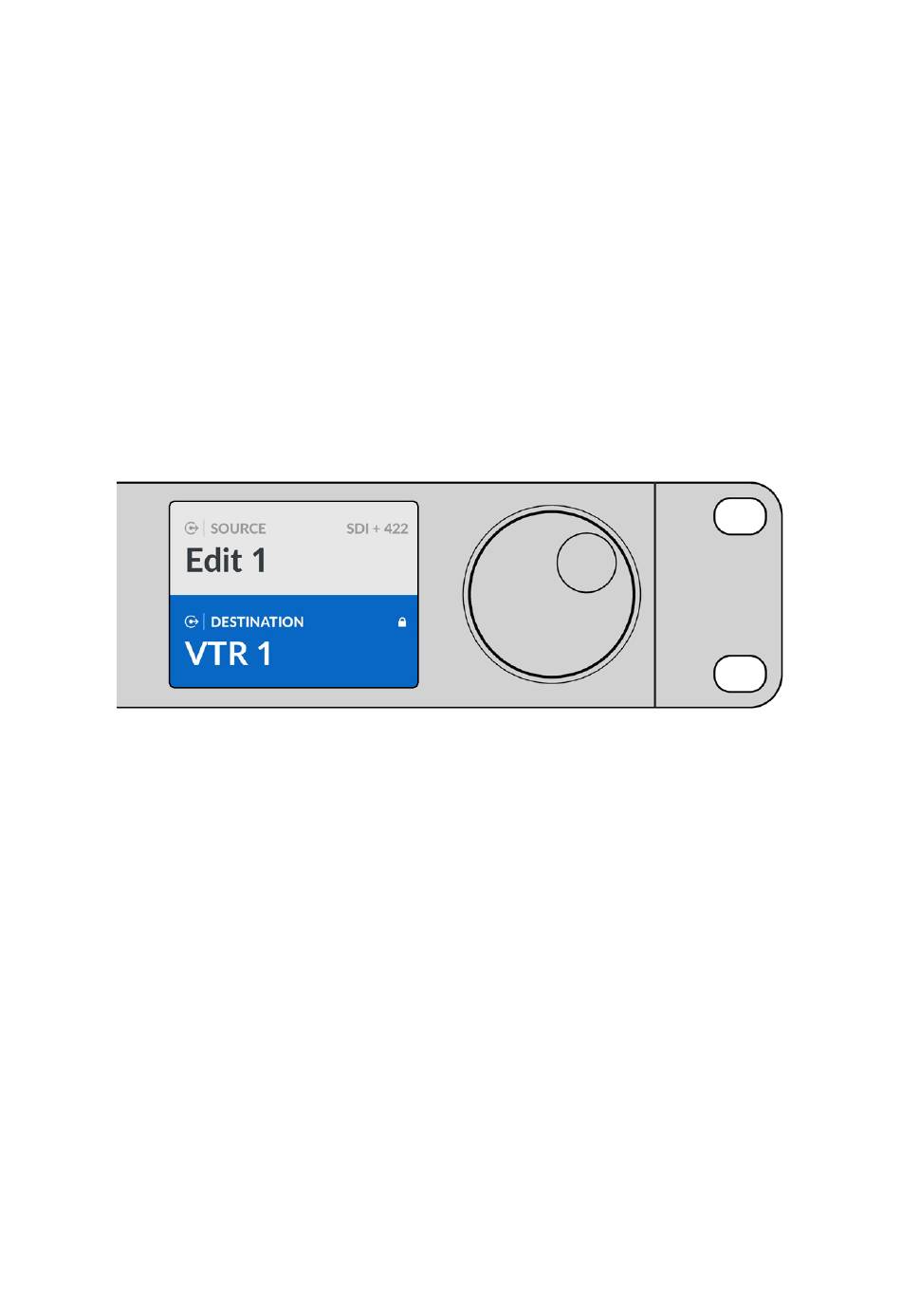

The destination field shows a lock icon if the destination is locked
To unlock a destination using Videohub Master Control Pro:
1 Press the 'DEST' button. The destination field will highlight blue on the LCD.
2
If the desired route is not already displayed on the LCD, use the pushbuttons and or spin
knob to find the destination to be unlocked. The destination field will show a lock icon for
the locked destination.
3 Press and hold the gold 'dest' button until the lock icon disappears from the destination
field of the LCD.
4 Press the 'DEST' button again to return Videohub Master Control Pro to its idle state and
the destination field will revert to gray.
Using Macros
If you press a green macro button, it will simultaneously make the crosspoint changes you have
previously configured in the Videohub Setup utility. Each button can be configured with up to
16 crosspoint routes. The simultaneous change of routes will only take place when you press
the flashing 'take' button. If the macro can't be performed for any reason, the macro button
will flash.
