Configuring Videohub Master Control Pro
Videohub Hardware Panel Setup software lets you customize the hardware features of each
Videohub control panel.
Backlight
Adjust the backlight slider as desired to vary the brightness of all backlit buttons.

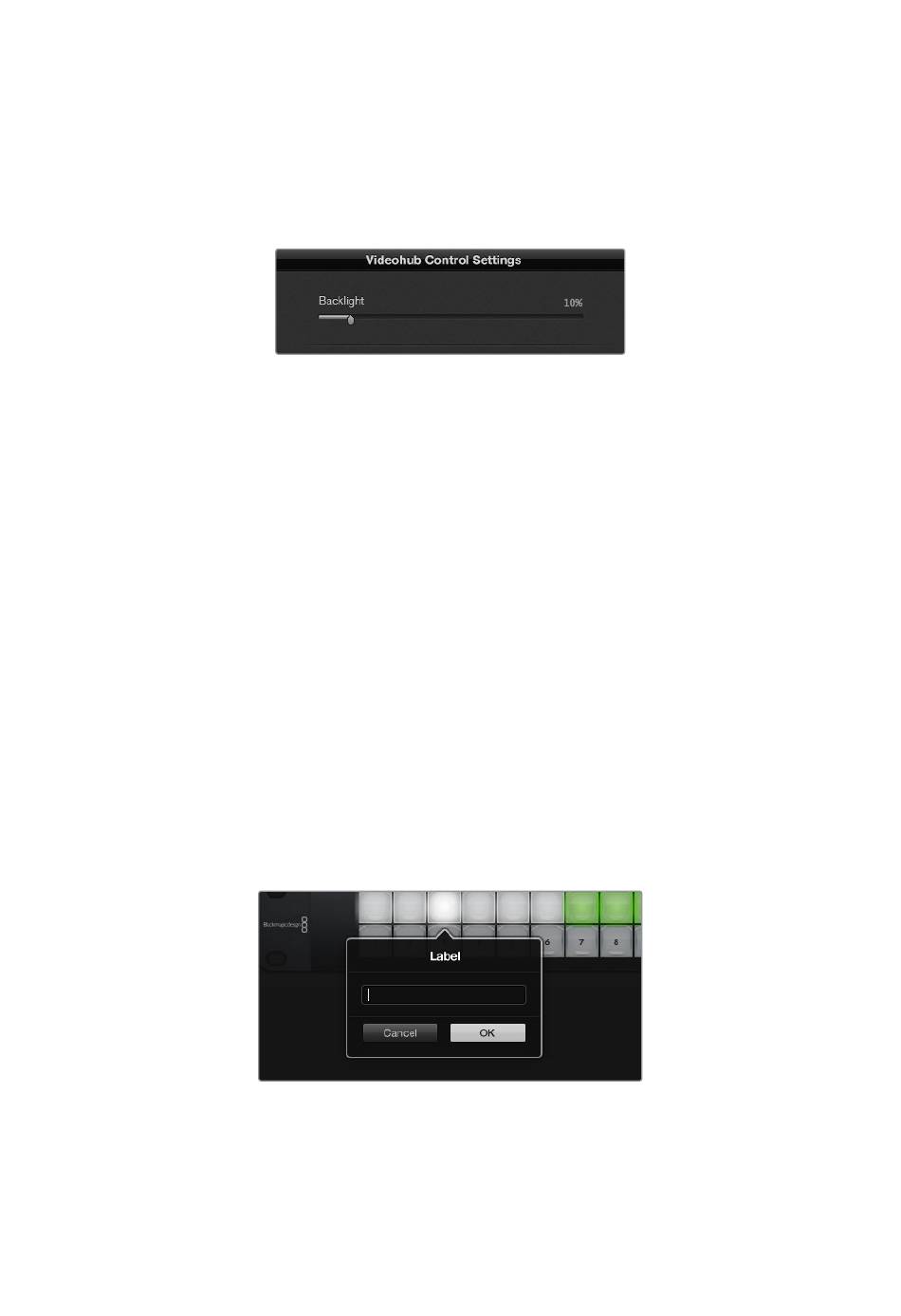

You can adjust the brightness of all backlit buttons in Videohub
Master Control
Creating Button Labels
21 of the buttons can be labeled within the control utility to provide fast selection of common
equipment types such as cameras, VTRs and monitors. Any of these 21 buttons can also be
configured as macro buttons.
If you haven't done so already, you should standardize the port labels on your Videohub router
before labeling any buttons on your Videohub control unit.
Please refer to the 'Labeling Pushbuttons' section for detailed information on customizing
your labels.
You are now ready to label the Videohub Master Control Pro buttons.
1 Launch the Videohub Hardware Panel Setup and select your Videohub Master Control Pro
from the Panels pane.
2 Click one of the 21 buttons in the picture of the panel. Enter a text label so it partially matches
the labels of SDI and deck control ports that you previously entered for your router.
3 Click OK and continue labeling the other buttons as desired.
4 You can immediately test the buttons as you program them and verify the SDI routes are valid.
You can refer to the 'labeling pushbuttons' section for instructions on how to label the physical
pushbuttons.
Click on the desired button to edit its label
