Configuring Videohub Smart Control Pro
Videohub Hardware Panel Setup lets you customize the hardware features of each Videohub
control panel.
Number of Destinations
Videohub Smart Control can be configured as a cut bus controller or as an XY controller.
When configured as a cut bus controller, every button represents an SDI source and there is
only one destination.
When configured as an XY controller, Videohub Smart Control Pro can work with up to
24 destinations. The source buttons will illuminate white and the destination buttons will
illuminate gold. Use this configuration if you don't intend to dedicate a Videohub Smart
Control Pro unit to each destination.

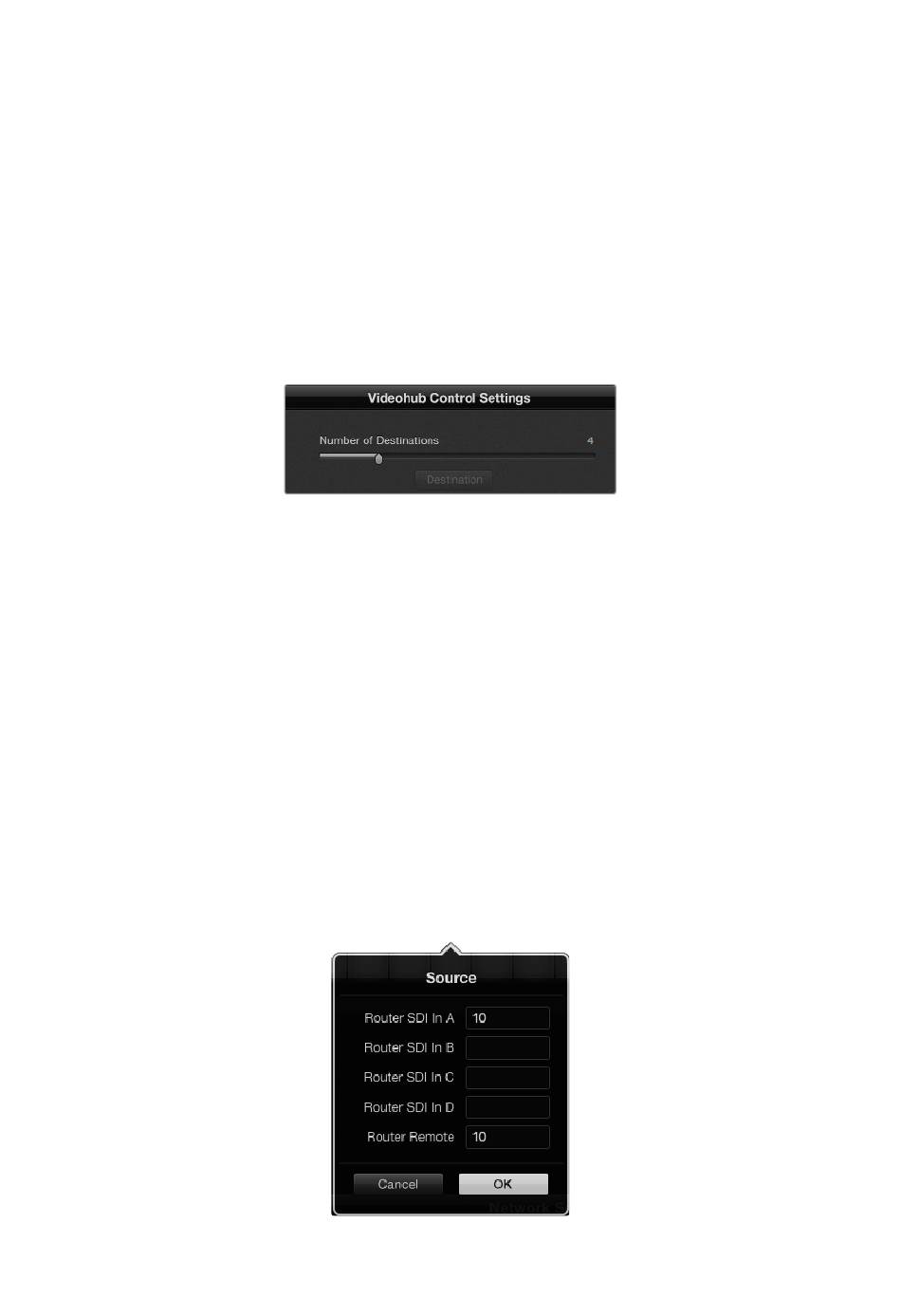

Videohub Smart Control Pro configured with multiple
destinations
Cut-Bus Configuration
1 Drag the Number of Destinations slider to 1.
2 Click on the Destination button. In the Router SDI Out A field, enter the number of the
Videohub output port to which the destination equipment is connected. If your destination
equipment is receiving dual or quad link SDI, you will also need to enter an output port
number into the Router SDI Out B, C and D fields where required. There is a Router Remote
field if your Videohub is also routing RS-422 deck control to the destination.
3
Click OK to confirm. All the buttons will become white, indicating that they are all sources.
4 Click on each white button in the software interface to configure the source buttons.
5 In the Router SDI In A field, enter the number of the Videohub input port to which the
source equipment is connected. If your destination is receiving dual or quad link SDI, you
will also need to enter an input port number into the Router SDI In B, C and D fields where
required. There is a Router Remote field if your Videohub is also routing RS-422 deck
control from the source.
6 Click OK to confirm.
Enter the number of the Videohub port to which
the SDI equipment is connected
Videohub Hardware Panel Setup 37
