Using NMOS Control
Videohub Master Control Pro and Videohub Smart Control Pro can be used as NMOS
controllers when connected to a 2110 IP network, allowing you to route ST 2110 IP streams
between equipment. You can choose to configure your Videohub hardware control panel as
either an NMOS or Videohub controller in the Videohub Setup software.
SDI connections send signals in one direction with video, audio and ancillary data such as
timecode and closed captions embedded in the one signal. With ST 2110, the signal is split
into video, audio and ancillary data elementary streams. This provides flexibility to route
video, audio or ancillary data streams independently whilst keeping each essence stream
synchronized so they can be brought back together at the end of the workflow. Networked
Media Open Specifications, or NMOS for short, is a group of specifications that direct the flow
of traffic in an IP network and manage communications between all the endpoint equipment.

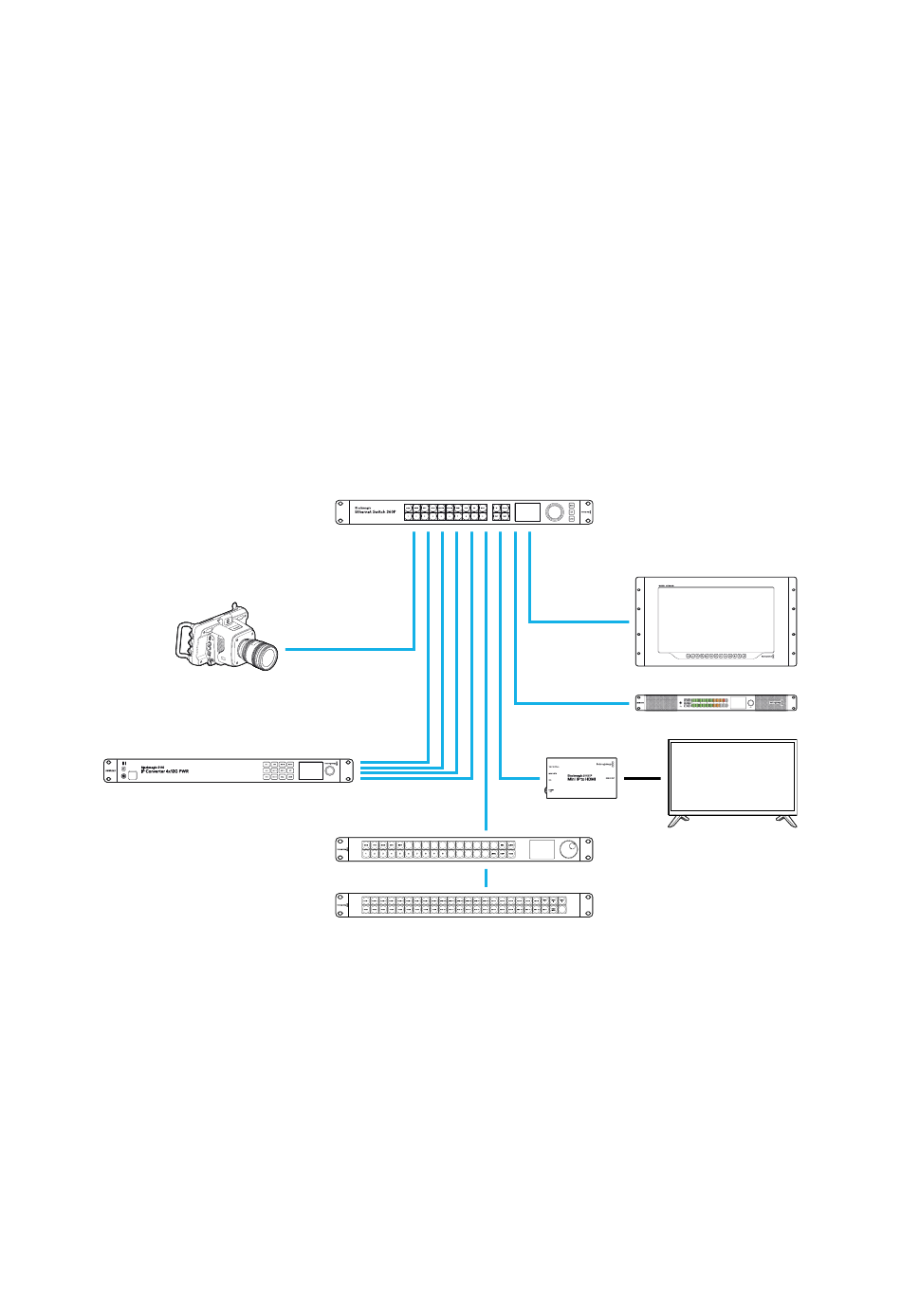

In the example below, Videohub Master Control Pro and Videohub Smart Control Pro are
connected to a Blackmagic Ethernet Switch 360P via 10G Ethernet. Both Videohub hardware
control panels can be used as NMOS controllers to route 2110 IP streams between equipment
connected to the Ethernet switch.
SDI OUT
SDI
IN
ETHER
NET
6 K
+12V
+12V
You can configure your Videohub hardware control panel as an NMOS or Videohub controller
using the Blackmagic Videohub Setup software. Keep reading this manual for more information
on installing the Blackmagic Videohub software and configuring your hardware control panel.
