Configuring Videohub Smart Control Pro
Videohub Smart Control Pro can be configured as a cut bus controller for routing sources to a
single destination, or as an XY controller for routing between multiple sources and destinations.
The steps below describe how to configure your VIdeohub Smart Control Pro as a cut bus
controller. For information on configuring your Videohub Smart Control Pro as an XY controller,
refer to the 'Blackmagic Videohub Setup' section of this manual.
To configure your Videohub Smart Control Pro for cut bus control:

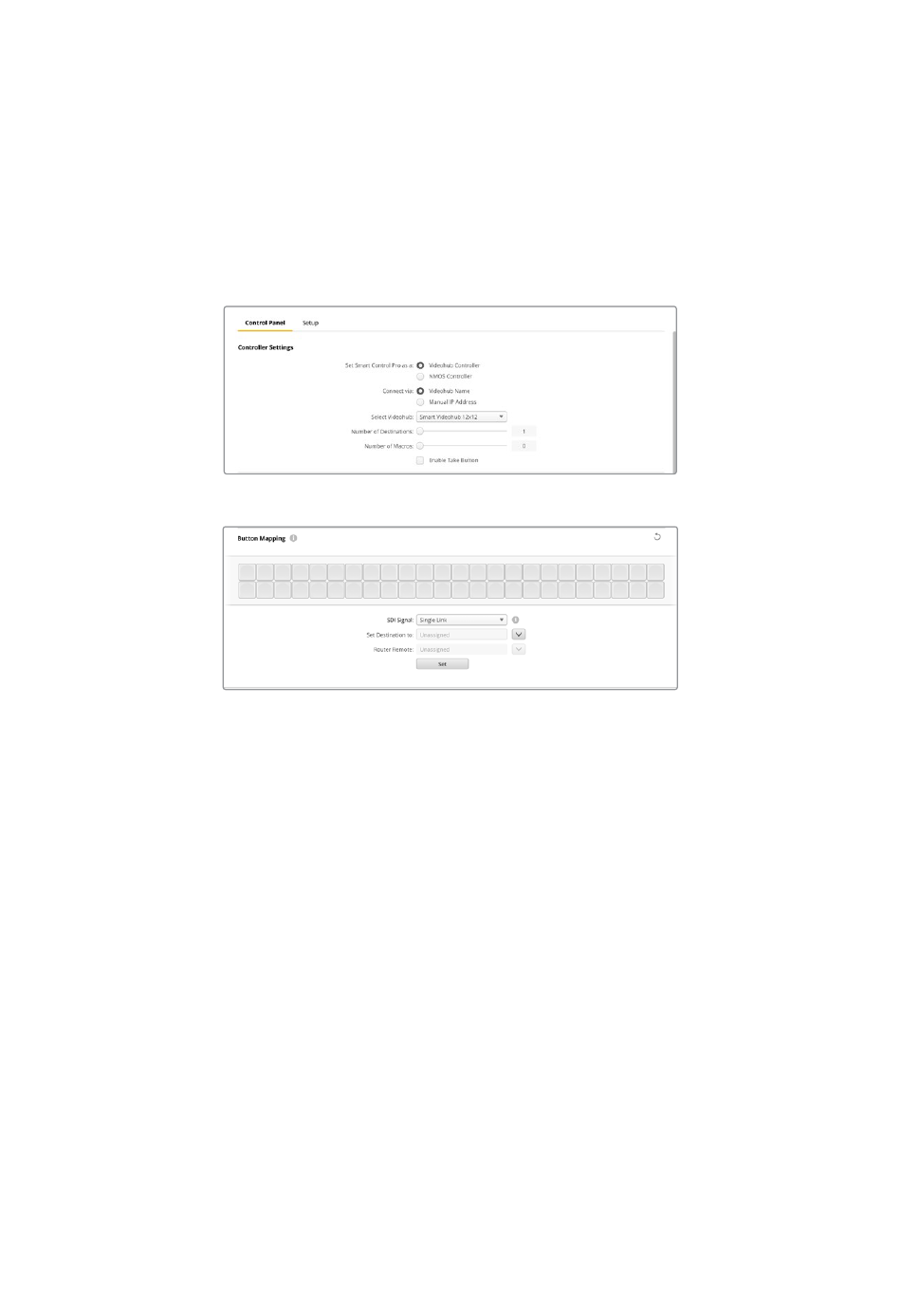

1 In the 'control panel' tab, drag the 'number of destinations' slider to '1'.
2 Use the destination settings below the 'button mapping' panel to set the destination.
Next, click the arrow to the right of the 'set destination to' field.
Select a destination from the list by clicking on its name, then click 'select'. Click the 'set' button
in the 'button mapping' panel to confirm your selection.
3 To set a source, click on a button in the 'button mapping' panel and use the 'set source'
options to configure each source button.
Continue the sequence until you have configured all of your sources and destinations.
That's it for getting started with your Videohub Master Control Pro and Videohub Smart
Control Pro! Keep reading this manual for more information, including instructions on routing
SDI video or ST 2110 NMOS control using your Videohub hardware control panel.
