Routing 2110 IP Video
Once your Videohub hardware control panel is set as an NMOS controller, you can use the front
panel buttons to route 2110 IP streams. This section of the manual shows how to switch a simple
route using Videohub Master Control Pro and Videohub Smart Control Pro.
Videohub Master Control Pro
Videohub Master Control Pro's front panel features source and destination buttons, plus a spin
knob. You can use these controls to switch a basic route. For information on additional ways to
route video using Videohub Master Control Pro, refer to the 'Using Videohub Master Control
Pro' section later in this manual.

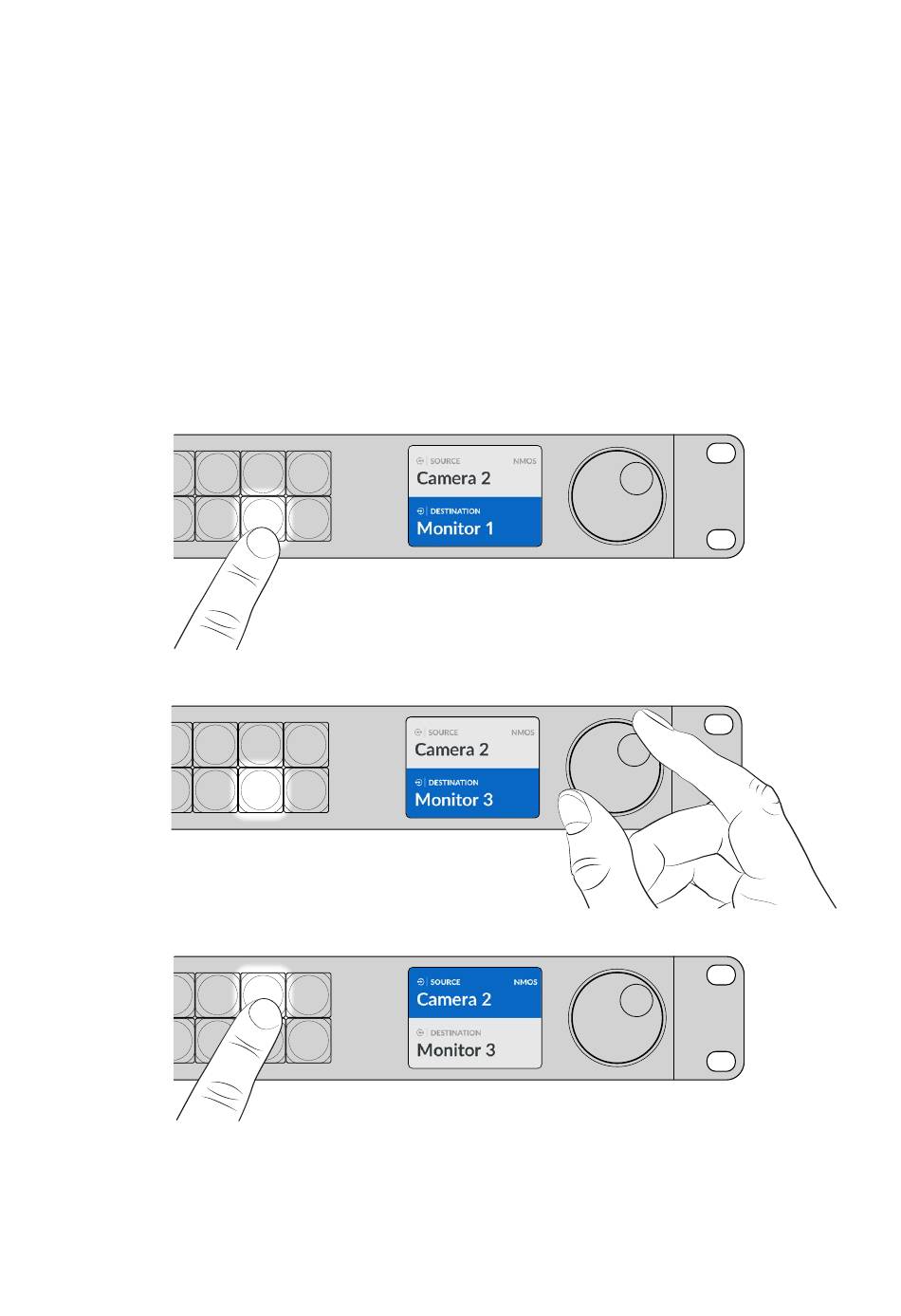

To Switch a route:
1 Press the 'dest' button to enable the destination output selection.
SRC
LEVEL DEST
2 Use the spin knob to scroll through the available destination outputs.
SRC
LEVEL DEST
3 Now press the 'src' button to enable the source input selection.
SRC
LEVEL DEST
4 Use the spin knob to select a source input. When the source is selected, the 'take' button
will flash indicating that you can confirm the route by pressing 'take', if you want to cancel
the route press 'clear'.
CLEAR
TAKE
CLEAR
TAKE
CLEAR
TAKE
